ED1000 A (G200) - Honda Generator, Made in Japan (SN: G200-1000001 - G200-9999999) CAMSHAFT + VALVES Parts Diagram

Generator, Made in Japan

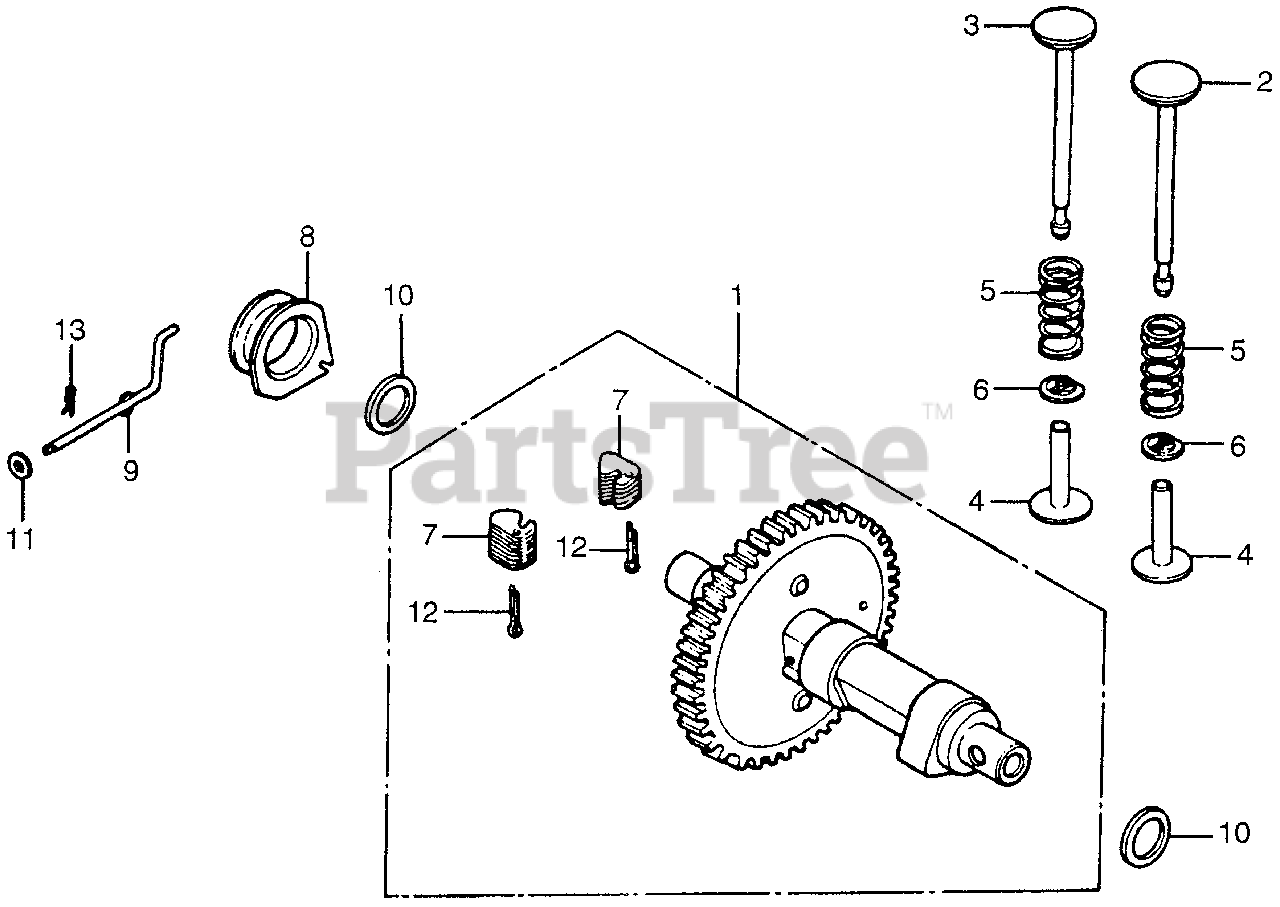

CAMSHAFT + VALVES Parts Diagram

  • Title

1

Honda 14110-883-020

SEE PART DETAILS - PRI; CAMSHAFT ASSY.

$276.99

$

Usually ships in 3-6 days

0

2

Honda 14711-883-000

VALVE, IN.

$33.99

$

Usually ships in 3-6 days

0

3

Honda 14721-883-000

VALVE, EX.

$37.99

$

Usually ships in 3-6 days

0

4

Honda 14736-883-010

SEE PART DETAILS - PRI; LIFTER, VALVE (39.6MM)

$19.99

$

Usually ships in 3-6 days

0

4

Honda 14746-883-010

SEE PART DETAILS - PRI; LIFTER, VALVE (39.9MM)

$19.99

$

Usually ships in 3-6 days

0

5

Honda 14751-883-000

SPRING, VALVE

$5.99

$

Usually ships in 3-6 days

0

6

Honda 14771-883-305

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING

$13.99

$

Usually ships in 3-6 days

0

7

Honda 16511-883-300

WEIGHT, GOVERNOR

$2.49

$

Usually ships in 3-6 days

0

8

Honda 16531-883-010

SLIDER, GOVERNOR

$

$

Not available

9

Honda 16541-883-000

SHAFT, GOVERNOR ARM

$

$

Not available

10

Honda 90452-883-000

WASHER, THRUST (18MM)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 94101-05000

SEE PART DETAILS - PRI; WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 3 left!

0

12

Honda 94201-30450

SEE PART DETAILS - PRI; PIN, COTTER (3.0X45)

$1.49

$

In Stock, Qty 20+

0

13

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0
