ED1000 A (G200) - Honda Generator, Made in Japan (SN: G200-1000001 - G200-9999999) ALTERNATOR Parts Diagram

Generator, Made in Japan

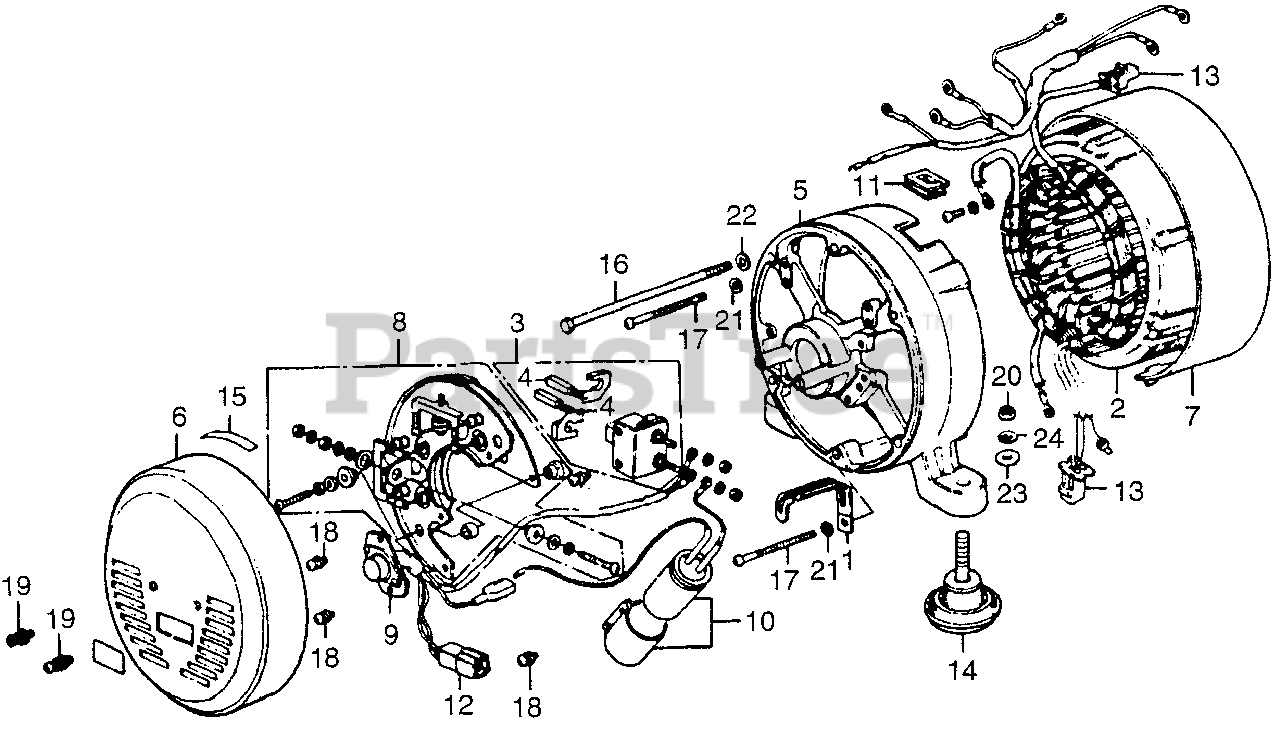

ALTERNATOR Parts Diagram

  • Title

1

Honda 30564-871-003

CLAMP A, WIRE

$11.99

$

Usually ships in 3-6 days

0

2

Honda 31105-872-761

STATOR ASSY.

$

$

Not available

3

Honda 31106-868-158

HOLDER, BRUSH

$64.99

$

Usually ships in 3-6 days

0

4

Honda 31107-868-158

BRUSH

$23.99

$

Usually ships in 3-6 days

0

5

Honda 31108-875-325H

SEE PART DETAILS - PRI; HOUSING, RR. *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 31113-871-158H

COVER, GENERATOR END *R8* (BRIGHT RED)

$

$

Not available

7

Honda 31127-871-158H

SEE PART DETAILS - PRI; COVER, STATOR *R8* (BRIGHT RED)

$

$

Not available

8

Honda 31135-872-761

DIODE ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 31417-872-158

STACK ASSY., DIODE (NOT AVAILABLE)

$

$

Not available

10

Honda 31426-872-158

CONDENSER ASSY.

$

$

Not available

11

Honda 31472-871-158

GROMMET

$

$

Not available

12

Honda 32130-611-000

CONNECTOR, MALE (2 POLE)

$

$

Not available

13

Honda 32131-611-000

CONNECTOR, FEMALE (2 POLE) (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 68320-871-013

SEE PART DETAILS - PRI; RUBBER (LOWER)

$

$

Not available

15

Honda 87524-839-670

MARK C, CAUTION (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 92000-06142-0H

BOLT, HEX. (6X142)

$

$

Currently unavailable

17

Honda 93500-05010-0H

SEE PART DETAILS - PRI; SCREW, PAN (5X10)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 93500-05055-0H

SEE PART DETAILS - PRI; SCREW, PAN (5X55) (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 93893-05010-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X10)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 94030-08000

SEE PART DETAILS - PRI; NUT, HEX. (8MM)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94101-05800

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0

22

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

23

Honda 94101-08000

SEE PART DETAILS - PRI; WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0

24

Honda 94111-08000

SEE PART DETAILS - PRI; WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0
