ED1000 A (G200) - Honda Generator, Made in Japan (SN: G200-1000001 - G200-9999999) AIR CLEANER + MUFFLER Parts Diagram

Generator, Made in Japan

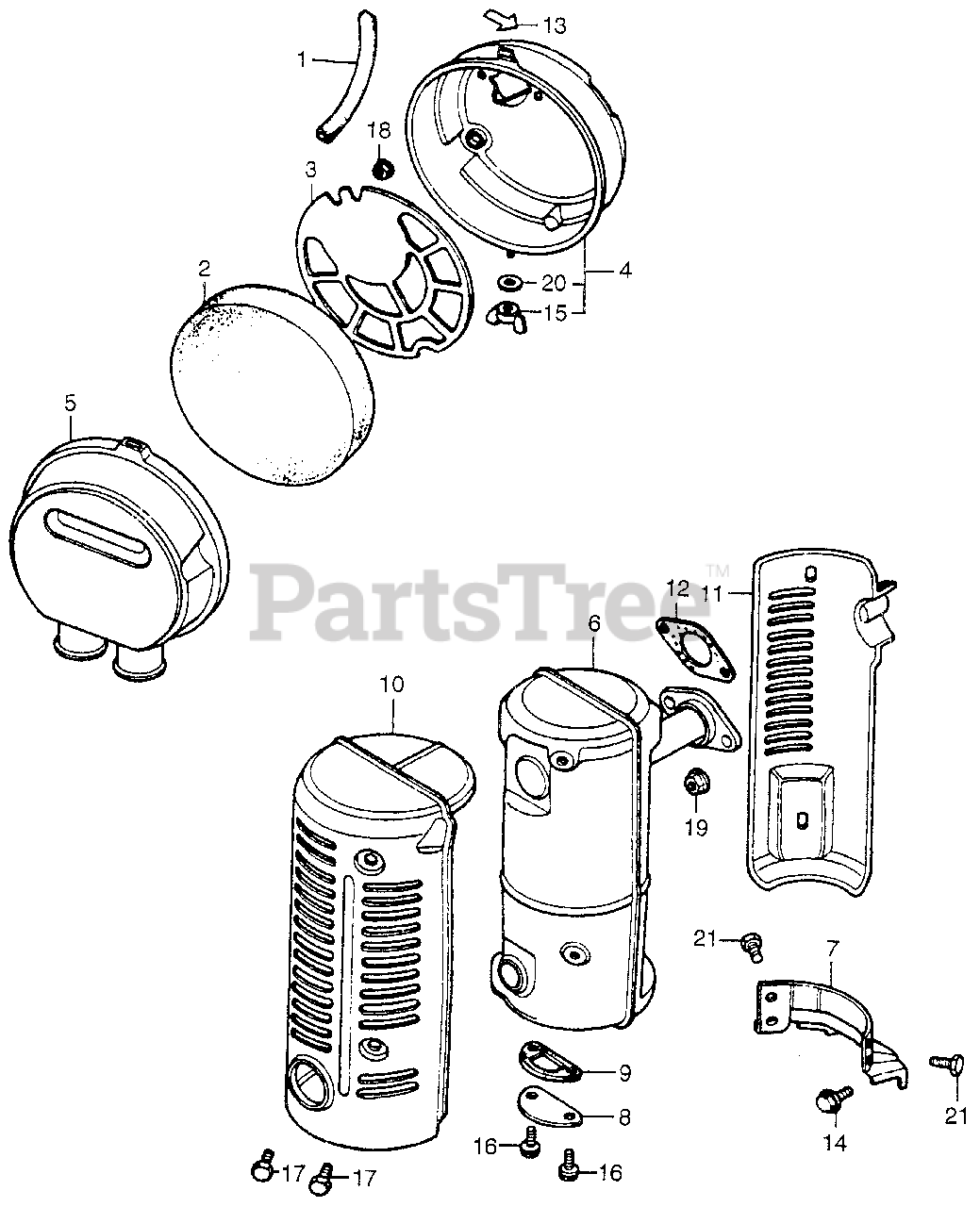

AIR CLEANER + MUFFLER Parts Diagram

  • Title
1

Honda 15721-732-000

SEE PART DETAILS - PRI; TUBE, BREATHER

$

$

Not available

2

Honda 17211-883-010

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER

$9.49

$

In Stock, only 1 left!

0

3

Honda 17212-883-010

GRID, AIR CLEANER

$10.99

$

In Stock, only 1 left!

0

4

Honda 17220-883-020

SEE PART DETAILS - PRI; HOUSING, AIR CLEANER

$

$

Not available

5

Honda 17231-883-632

SEE PART DETAILS - PRI; COVER, AIR CLEANER

$

$

Not available

6

Honda 18300-883-671

MUFFLER ASSY.

$

$

Not available

7

Honda 18315-883-672

SEE PART DETAILS - PRI; STAY, MUFFLER

$

$

Not available

8

Honda 18316-883-670

LID, MUFFLER

$

$

Currently unavailable

9

Honda 18317-883-306

SEE PART DETAILS - PRI; GASKET, MUFFLER LID

$3.99

$

Usually ships in 3-6 days

0

10

Honda 18320-883-670

PROTECTOR A, MUFFLER

$

$

Not available

11

Honda 18325-883-671

PROTECTOR B, MUFFLER

$

$

Not available

12

Honda 18381-883-800

SEE PART DETAILS - PRI; GASKET, MUFFLER

$5.49

$

Usually ships in 3-6 days

0

13

Honda 87528-883-661

SEE PART DETAILS - PRI; MARK, CHOKE

$2.49

$

Usually ships in 3-6 days

0

14

Honda 90031-883-000

BOLT, FLANGE (8X16)

$5.99

$

In Stock, only 1 left!

0

15

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING

$5.49

$

In Stock, Qty 20+

0

16

Honda 92101-06012-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 93000-06006-0B

SEE PART DETAILS - SUP; BOLT, HEX. (6X6)

$

$

Currently unavailable

17

Honda 93101-06006-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X6)

$

$

Not available

18

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

19

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 15

0

20

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

21

Honda 95700-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

21

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0
