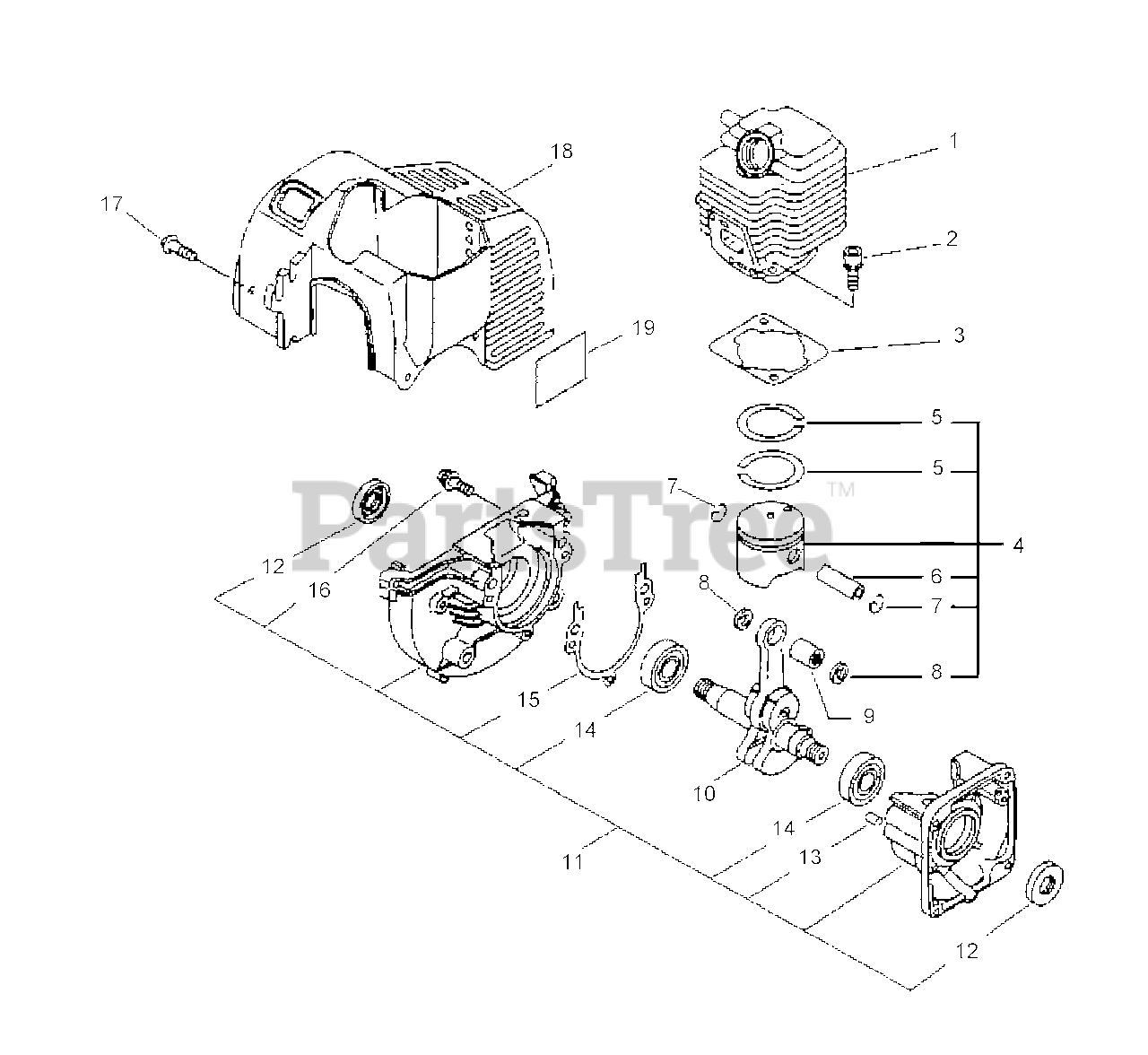

ED-2000 - Echo Engine Drill (Type 1E) Engine, Crankcase, Cover Parts Diagram

Engine Drill (Type 1E)

Engine, Crankcase, Cover Parts Diagram

  • Title
1

Echo 10101106562

CYLINDER

Note: (S/N 001001 - 501000)

$109.99

$

Usually ships in 2-4 days

0

1

Echo A130000010

CYLINDER
(Superseded to A130000011)

Note: (S/N 501001 & UP)

$116.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo 10101044332

GASKET, CYLINDER

Note: USE KIT P/N 88900044432

$3.99

$

In Stock, only 4 left!

0

4

Echo 10000048732

PISTON KIT

Note: (S/N 001001 - 501000). INCLUDES ITEMS 5 - 8

$77.99

$

In Stock, only 1 left!

0

4

Echo P021000390

PISTON KIT
(Superseded to P021001100)

Note: (S/N 501001 & UP)

$77.99

$

In Stock, Qty 5

0

5

Echo 10001105330

RING, PISTON

Note: (S/N 001001 - 501000)

$8.49

$

In Stock, only 2 left!

0

5

Echo A101000000

RING, PISTON

Note: (S/N 501001 & UP)

$8.49

$

In Stock, only 2 left!

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

8

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

9

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

10

------------------

CRANKSHAFT ASSY

Note: USE P/N SB1026

$

$

Not available

11

------------------

CRANKCASE KIT

Note: INCLUDES ITEMS 12 - 16. (USE P/N SB1026)

$

$

Not available

12

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

14

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

15

------------------

GASKET, CRANKCASE

Note: USE KIT P/N 88900044432

$

$

Not available

16

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 19

0

17

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

18

Echo 10151409060

COVER, ENGINE - GRAY
(Superseded to 10151409061)

$36.99

$

Usually ships in 2-4 days

0

19

Echo 89011405560

LABEL - MODEL

$3.99

$

In Stock, only 1 left!

0

Echo SB1026

SHORT BLOCK -- SB1026
(Superseded to Discontinued)

$

$

Not available

Echo 88900044432

GASKET KIT
(Superseded to 88900044434)

Note: RePower OPTION

$29.99

$

Usually ships in 2-4 days

0

Echo 10101044332

GASKET, CYLINDER

Note: RePower OPTION

$3.99

$

In Stock, only 4 left!

0

------------------

GASKET, CRANKCASE

Note: RePower OPTION

$

$

Not available

Echo 13001044431

GASKET, INTAKE

Note: RePower OPTION

$2.49

$

In Stock, Qty 12

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: RePower OPTION

$2.49

$

In Stock, Qty 14

0

Echo 14586642031

GASKET, EXHAUST

Note: RePower OPTION

$2.49

$

In Stock, Qty 5

0

Echo V104000160

GASKET, EXHAUST

Note: RePower OPTION

$0.99

$

In Stock, Qty 16

0

Echo V104000003

GASKET, EXHAUST

Note: RePower OPTION

$2.99

$

Usually ships in 2-4 days

0

Echo 90072000015

O-RING - 15

Note: RePower OPTION

$1.99

$

In Stock, Qty 20+

0
