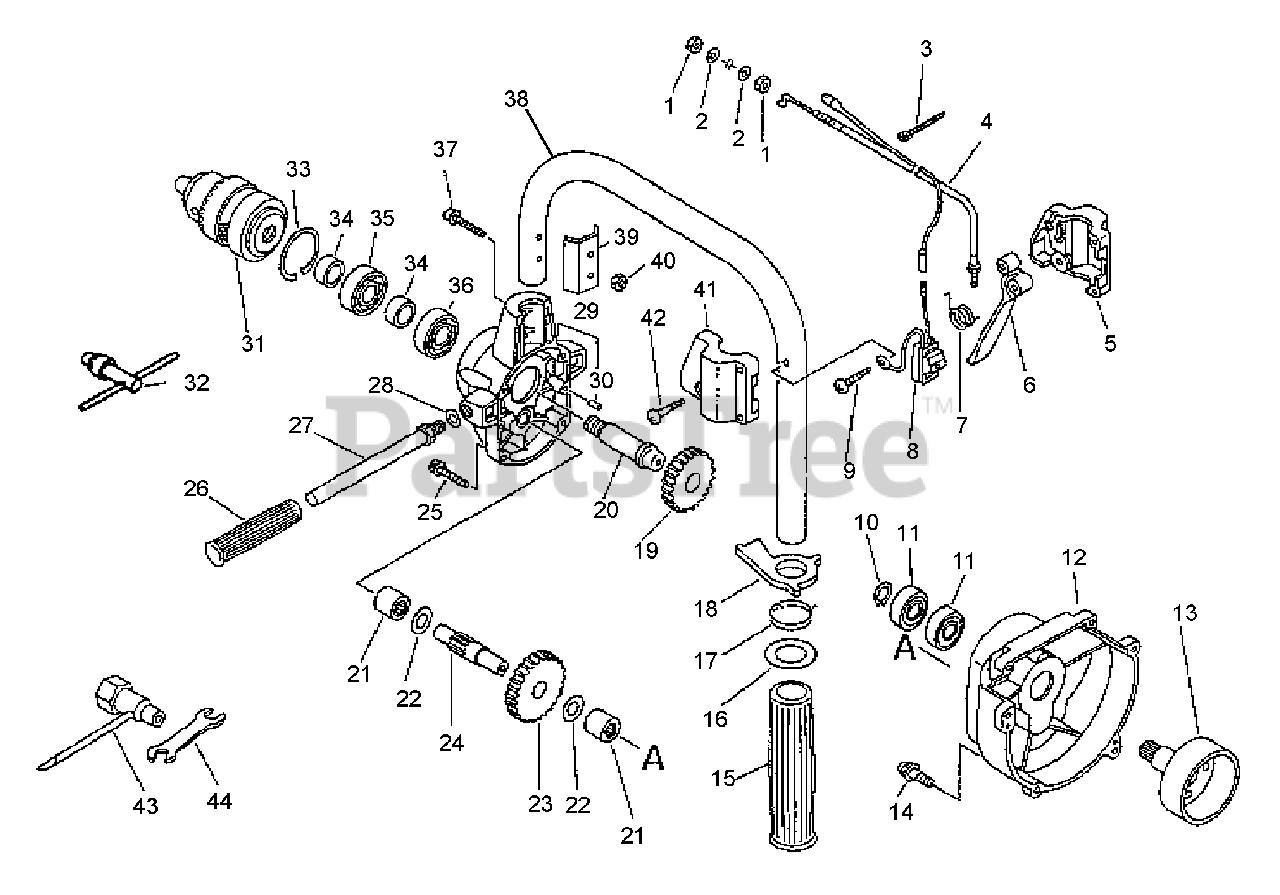

ED-2000 - Echo Engine Drill (Type 1) Gear Case, Chuck, Fan Cover, Tools Parts Diagram

Engine Drill (Type 1)

Gear Case, Chuck, Fan Cover, Tools Parts Diagram

  • Title

1

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

2

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

3

Echo 17812108550

TIE, CABLE
(Superseded to 17812156030)

$2.49

$

Usually ships in 2-4 days

0

4

Echo 17800205560

CABLE, THROTTLE
(Superseded to 17810009060)

$13.99

$

In Stock, Qty 10

0

5

Echo 17802401260

BRACKET, THROTTLE CONTROL - RIGHT
(Superseded to 17802401261)

$3.99

$

In Stock, only 1 left!

0

6

Echo 17801007660

TRIGGER, THROTTLE

$4.49

$

In Stock, only 1 left!

0

7

Echo 17804301260

SPRING, TRIGGER

$0.99

$

In Stock, only 3 left!

0

8

Echo 16340004460

IGNITION SWITCH ASSY

$10.99

$

In Stock, only 1 left!

0

9

Echo 90024504030

SCREW - 4X30

$0.99

$

In Stock, Qty 9

0

10

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

11

Echo 90080036001

BEARING, BALL - 6001C3

$9.49

$

In Stock, Qty 6

0

12

Echo 10151105560

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

13

Echo 17500505560

DRUM, CLUTCH

$60.99

$

Usually ships in 2-4 days

0

14

Echo 90024204016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

15

Echo 35131102330

GRIP, HANDLE - LEFT

$6.49

$

In Stock, only 3 left!

0

16

Echo 17807002060

SPACER
(Superseded to 17807002061)

$1.99

$

In Stock, only 3 left!

0

17

Echo 17801302060

SPRING, LOCKOUT LEVER

$2.49

$

Usually ships in 2-4 days

0

18

Echo 17801202061

LEVER, TRIGGER LOCKOUT

$5.49

$

Usually ships in 2-4 days

0

19

Echo 60422405560

GEAR - SPUR

$49.99

$

Usually ships in 2-4 days

0

20

Echo 60404205560

GEAR - SHAFT

$120.99

$

Usually ships in 2-4 days

0

21

Echo 60422105560

BEARING, NEEDLE

$9.99

$

Usually ships in 2-4 days

0

22

Echo 60422305560

WASHER

$3.49

$

Usually ships in 2-4 days

0

23

Echo 60421305560

GEAR - SPUR -- 12 TOOTH
(Superseded to 60420605560)

$68.99

$

Usually ships in 2-4 days

0

24

Echo 60422605560

GEAR - SHAFT
(Superseded to 60420605560)

$68.99

$

Usually ships in 2-4 days

0

25

Echo 90016204025

SCREW - 4X25

$1.49

$

In Stock, Qty 7

0

26

Echo 35131128330

GRIP - FRONT

$6.99

$

In Stock, Qty 6

0

27

Echo 35121005560

HANDLE - FRONT

$21.99

$

In Stock, only 3 left!

0

28

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

29

Echo 60431105560

CASE, GEAR
(Superseded to Discontinued)

Note: INCLUDES ITEM 30

$

$

Not available

30

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

31

Echo 60405105560

CHUCK

$137.99

$

In Stock, only 1 left!

0

32

Echo 89757005560

KEY, CHUCK

$19.99

$

Usually ships in 2-4 days

0

33

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 14

0

34

Echo 60404405560

COLLAR

$4.49

$

Usually ships in 2-4 days

0

35

Echo 90080206002

BEARING, BALL - 6002

$16.99

$

Usually ships in 2-4 days

0

36

Echo 90080036002

BEARING, BALL - 6002

$14.99

$

Usually ships in 2-4 days

0

37

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 6

0

38

Echo 35100005561

HANDLE ASSY - REAR

$69.99

$

Usually ships in 2-4 days

0

39

Echo 35164105560

PLATE, HANDLE

$5.99

$

Usually ships in 2-4 days

0

40

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

41

Echo 17805201260

BRACKET, THROTTLE CONTROL - LEFT
(Superseded to 17805201261)

$3.99

$

In Stock, only 1 left!

0

42

Echo 90024604025

SCREW - 4X25

$0.99

$

Usually ships in 2-4 days

0

43

Echo 89541039131

T-WRENCH - 10X19mm
(Superseded to 89541039132)

$3.49

$

In Stock, Qty 20+

0

44

Echo 89512220960

SPANNER - 17X19mm

$18.99

$

In Stock, only 1 left!

0
