ED-2000 - Echo Engine Drill (Type 1) Engine, Crankcase, Cover Parts Diagram

Engine Drill (Type 1)

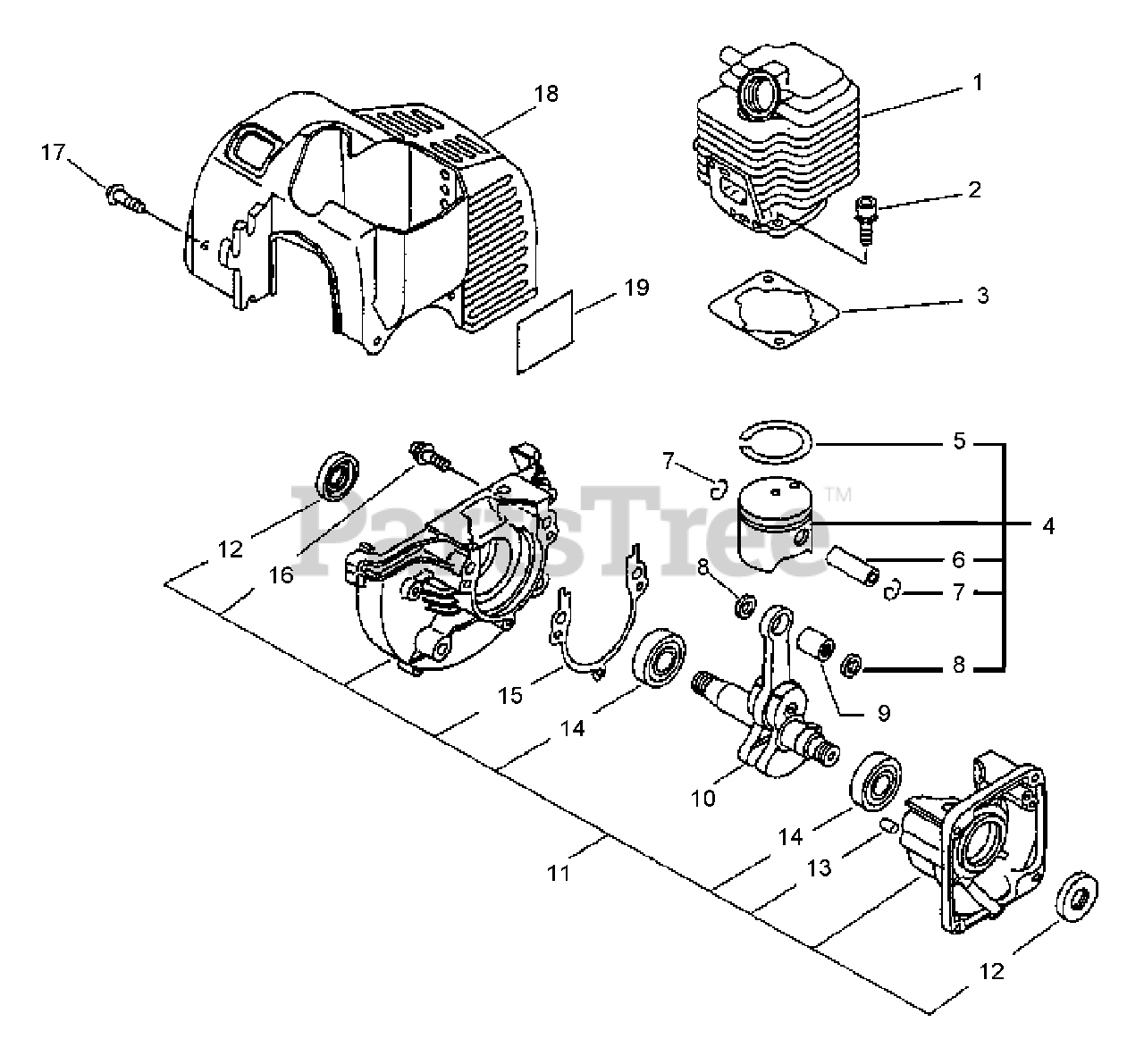

Engine, Crankcase, Cover Parts Diagram

  • Title

1

Echo 10101145230

CYLINDER

$127.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo 10101044332

GASKET, CYLINDER

Note: USE KIT P/N 88900044333

$3.99

$

In Stock, Qty 8

0

4

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: INCLUDES ITEMS 5 - 8

$65.99

$

Usually ships in 2-4 days

0

5

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, only 1 left!

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

8

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

9

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

10

Echo 10010044331

CRANKSHAFT ASSY

$283.99

$

Usually ships in 2-4 days

0

11

Echo 10020451030

CRANKCASE KIT
(Superseded to 10020451031)

Note: Includes ITEMS 12-16

$131.99

$

Usually ships in 2-4 days

0

12

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 13

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

14

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 11

0

15

------------------

GASKET, CRANKCASE

Note: USE KIT P/N 88900044333

$

$

Not available

16

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

17

Echo 90024204016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

18

Echo 10151405560

COVER, ENGINE - ORANGE
(Superseded to 10151405561)

Note: S/N 001001 - 017940

$54.99

$

In Stock, only 1 left!

0

18

Echo 10151409060

COVER, ENGINE - GRAY
(Superseded to 10151409061)

Note: S/N 017941 & UP

$36.99

$

Usually ships in 2-4 days

0

19

Echo 89011405560

LABEL - MODEL

$3.99

$

In Stock, only 1 left!

0

Echo SB1000

SHORT BLOCK -- SB1000
(Superseded to Discontinued)

$

$

Not available

Echo 88900044333

GASKET KIT

Note: RePower OPTION

$37.99

$

Usually ships in 2-4 days

0

Echo 10101044332

GASKET, CYLINDER

Note: RePower OPTION

$3.99

$

In Stock, Qty 8

0

------------------

GASKET, CRANKCASE

Note: RePower OPTION

$

$

Not available

Echo 13001044431

GASKET, INTAKE

Note: RePower OPTION

$2.49

$

In Stock, Qty 12

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: RePower OPTION

$2.49

$

In Stock, Qty 16

0

Echo 14586642031

GASKET, EXHAUST

Note: RePower OPTION

$2.49

$

In Stock, Qty 6

0

Echo V104000160

GASKET, EXHAUST

Note: RePower OPTION

$0.99

$

In Stock, Qty 16

0

Echo 14563142030

COVER, MUFFLER
(Superseded to A320000250)

Note: RePower OPTION

$4.99

$

In Stock, Qty 14

0

Echo 90072000015

O-RING - 15

Note: RePower OPTION

$1.99

$

In Stock, Qty 20+

0
