ED-2000 - Echo Engine Drill (Type 1) Carburetor S/N: 011006 - 999999 Parts Diagram

Engine Drill (Type 1)

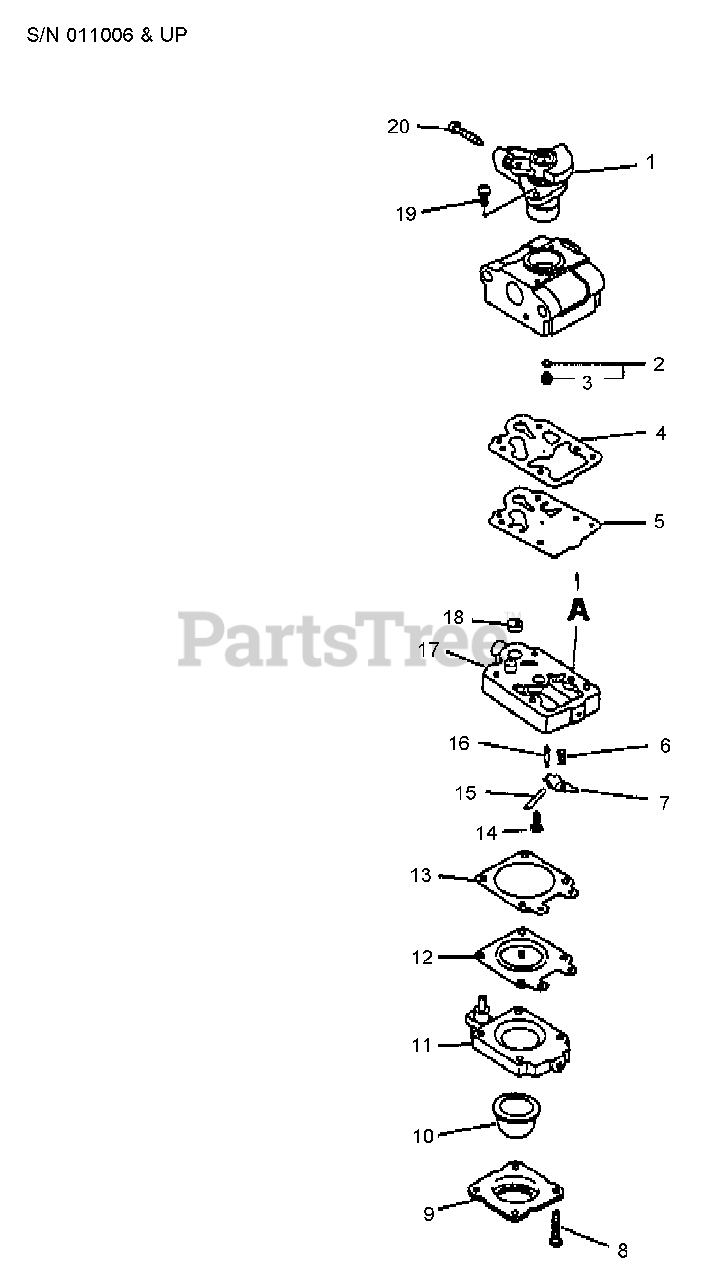

Carburetor S/N: 011006 - 999999 Parts Diagram

  • Title

Echo 12300005560

CARBURETOR WYL-23

Note: S/N 011005 & UP. INCL. THE FOLLOWING

$83.99

$

Usually ships in 2-4 days

0

1

Echo 12311605560

VALVE, THROTTLE

$18.99

$

Usually ships in 2-4 days

0

2

Echo 12310744330

JET KIT - 37
(Superseded to Discontinued)

Note: Includes ITEM 3

$

$

Not available

3

------------------

O-RING

$

$

Not available

4

------------------

GASKET, PUMP

Note: USE GASKET/DIAPHRAGM KIT P/N 12310105560 AND REBUILD KIT P/N 12310005560

$

$

Not available

5

------------------

DIAPHRAGM, PUMP

Note: USE GASKET/DIAPHRAGM KIT P/N 12310105560 AND REBUILD KIT P/N 12310005560

$

$

Not available

6

------------------

SPRING, METERING LEVER

Note: USE REBUILD KIT P/N 12310005560

$

$

Not available

7

------------------

LEVER, METERING

Note: USE REBUILD KIT P/N 12310005560

$

$

Not available

8

Echo 12311005560

SCREW, PUMP COVER

$2.99

$

In Stock, Qty 20+

0

9

Echo 12314205560

RETAINER, PURGE BULB

$4.49

$

In Stock, Qty 20+

0

10

Echo 12318140630

BULB, PURGE

$5.49

$

In Stock, Qty 20+

0

11

Echo 12318005560

PURGE BASE ASSY

$7.49

$

In Stock, only 1 left!

0

12

------------------

DIAPHRAGM, METERING

Note: USE GASKET/DIAPHRAGM KIT P/N 12310105560 AND REBUILD KIT P/N 12310005560

$

$

Not available

13

------------------

GASKET, METERING

Note: USE GASKET/DIAPHRAGM KIT P/N 12310105560 AND REBUILD KIT P/N 12310005560

$

$

Not available

14

------------------

SCREW, METERING LEVER PIN

Note: USE REBUILD KIT P/N 12310005560

$

$

Not available

15

------------------

PIN, METERING LEVER

Note: USE REBUILD KIT P/N 12310005560

$

$

Not available

16

------------------

VALVE, INLET NEEDLE

Note: USE REBUILD KIT P/N 12310005560

$

$

Not available

17

------------------

BASE, PURGE

Note: USE REBUILD KIT P/N 12310005560

$

$

Not available

18

------------------

STRAINER

Note: USE REBUILD KIT P/N 12310005560

$

$

Not available

19

Echo 12311444330

SCREW

$0.99

$

Usually ships in 2-4 days

0

20

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

Echo 12310105560

DIAPHRAGM/GASKET KIT

$5.99

$

In Stock, only 1 left!

0

Echo 12310005560

REPAIR KIT

$30.99

$

Usually ships in 2-4 days

0
