ED-200 - Echo Engine Drill (SN: E01505001001 - E01505999999) Intake, Exhaust Parts Diagram

Engine Drill

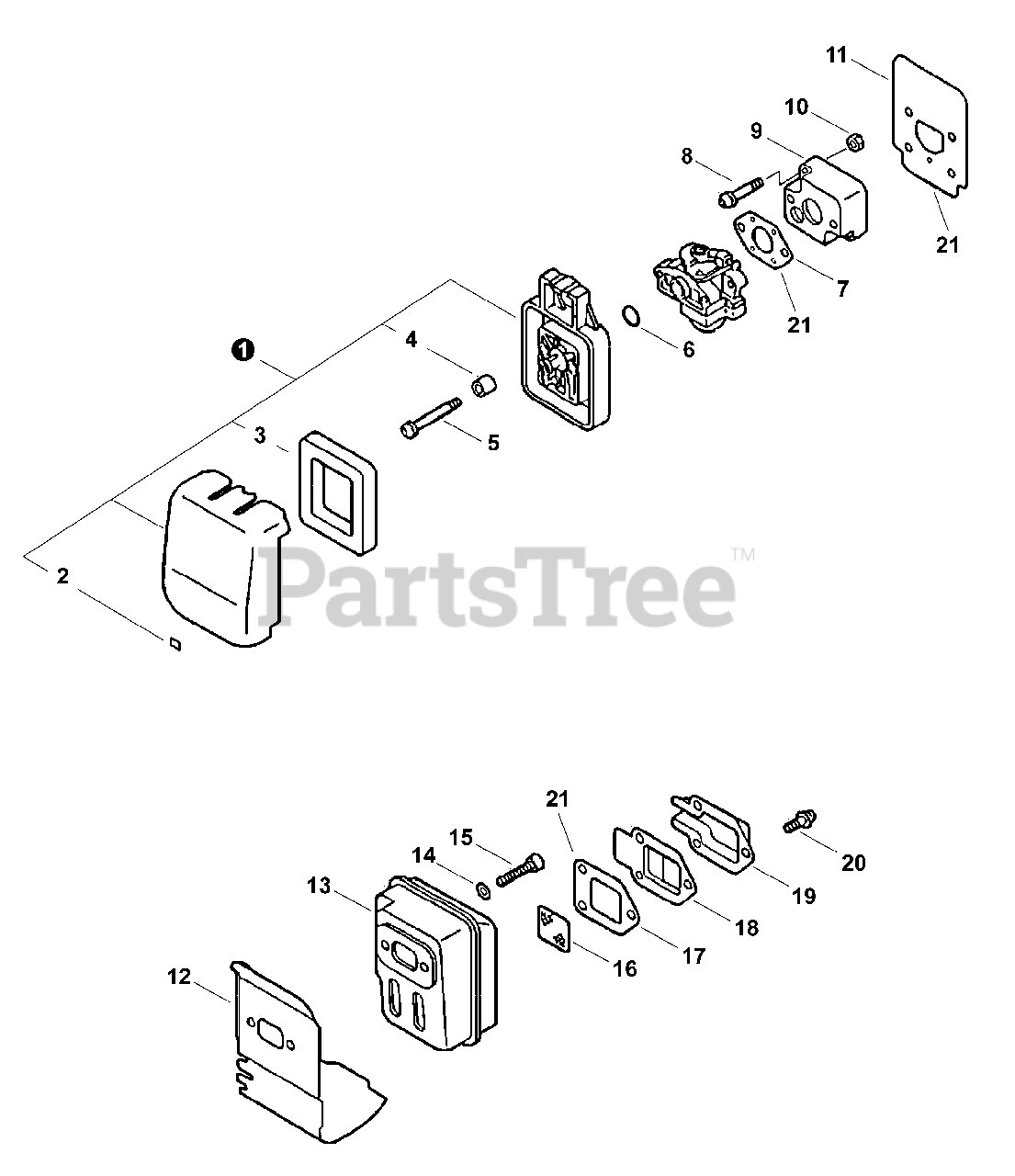

Intake, Exhaust Parts Diagram

  • Title

1

Echo 13030045130

AIR CLEANER ASSY

Note: Includes Items 2-4

$30.99

$

Usually ships in 2-4 days

0

2

Echo 89099120960

LABEL

$1.99

$

Usually ships in 2-4 days

0

3

Echo 13031044330

FILTER, AIR

$4.99

$

In Stock, Qty 8

0

4

Echo 13032744330

SLEEVE
(Superseded to Discontinued)

$

$

Not available

5

Echo 90024205064

SCREW - 5×64

$1.49

$

In Stock, Qty 9

0

6

Echo 90072000015

O-RING - 15

$1.99

$

In Stock, Qty 20+

0

7

Echo 13001044431

GASKET, INTAKE

$2.49

$

In Stock, Qty 12

0

8

Echo 90024205022

SCREW - 5×22

$0.99

$

In Stock, Qty 8

0

9

Echo 13001744331

INSULATOR, INTAKE

$9.99

$

In Stock, only 3 left!

0

10

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

11

Echo 13001042032

SHIELD, INTAKE

$2.49

$

In Stock, Qty 7

0

12

Echo 14551044331

GASKET, EXHAUST

$9.99

$

Usually ships in 2-4 days

0

13

Echo 14585805560

MUFFLER
(Superseded to Discontinued)

$

$

Not available

14

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 90010505055

SCREW - 5×55

$1.49

$

In Stock, Qty 12

0

16

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, only 2 left!

0

17

Echo V104000003

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

18

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 6

0

19

Echo A313000041

GUIDE, EXHAUST - OUTER

$3.99

$

Usually ships in 2-4 days

0

20

Echo 90024204010

SCREW - 4×10

$0.99

$

In Stock, Qty 13

0

21

Echo P021004810

GASKET KIT

$12.99

$

Usually ships in 2-4 days

0
