ED-200 - Echo Engine Drill (SN: E01505001001 - E01505999999) Handle, Throttle Control, Tools Parts Diagram

Engine Drill

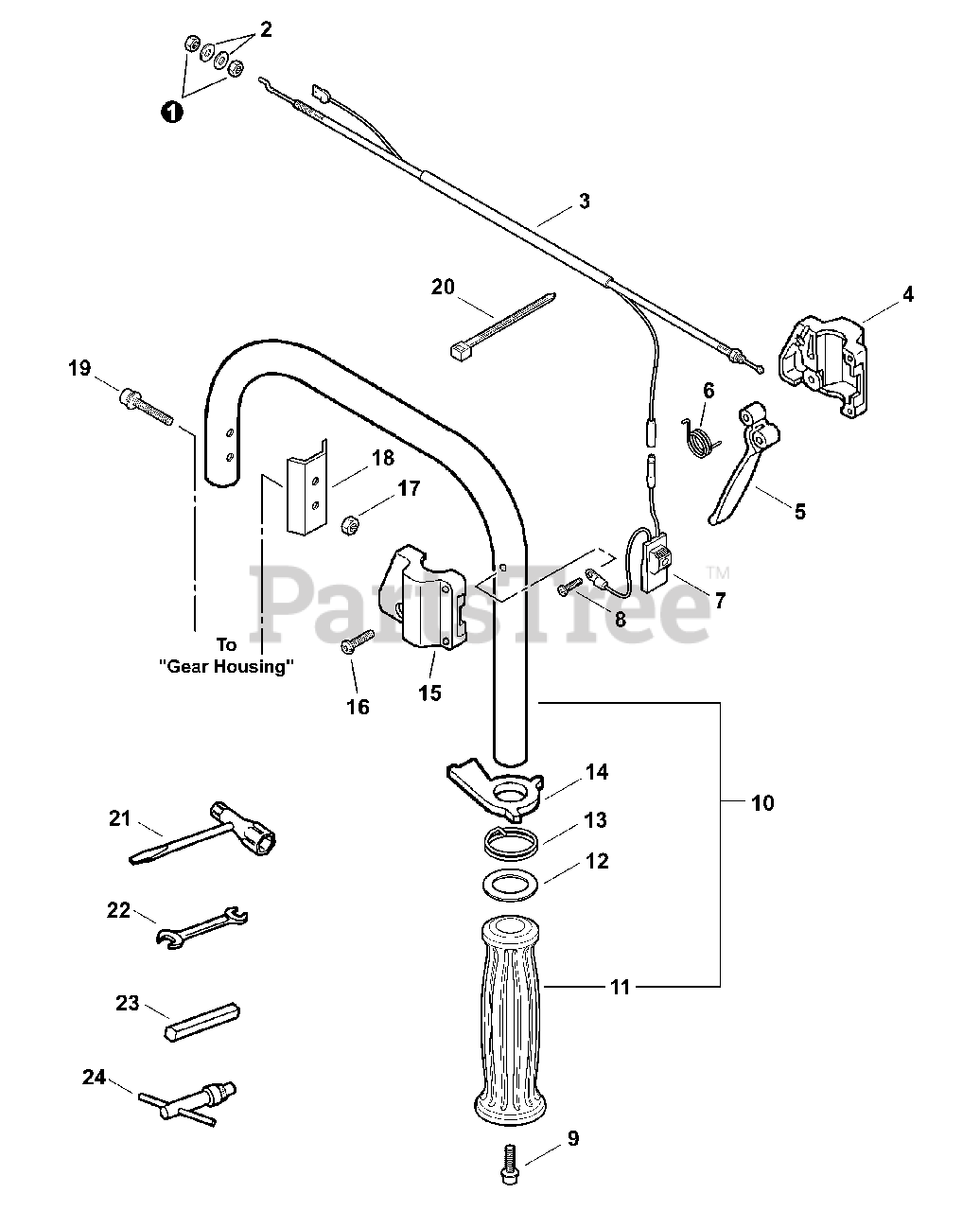

Handle, Throttle Control, Tools Parts Diagram

  • Title

1

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 1 left!

0

2

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

3

Echo 17810009060

CONTROL CABLE ASSY
(Superseded to 17810009061)

$13.99

$

In Stock, Qty 10

0

4

Echo 17802401260

BRACKET, THROTTLE CONTROL - RIGHT
(Superseded to 17802401261)

$3.99

$

In Stock, only 1 left!

0

5

Echo 17801007660

TRIGGER, THROTTLE

$4.49

$

In Stock, only 1 left!

0

6

Echo 17804301260

SPRING, TRIGGER

$0.99

$

In Stock, only 3 left!

0

7

Echo 16340004460

IGNITION SWITCH ASSY

$10.99

$

In Stock, only 1 left!

0

8

Echo 90024504030

SCREW - 4×30

$0.99

$

In Stock, Qty 9

0

9

Echo 90024205016

SCREW - 5×16

$0.99

$

In Stock, Qty 20+

0

10

Echo 35100005561

HANDLE ASSY - REAR

Note: Includes Item 11

$69.99

$

Usually ships in 2-4 days

0

11

Echo 35131527931

GRIP, HANDLE - RIGHT

$5.49

$

In Stock, only 1 left!

0

12

Echo 17807002061

SPACER

$1.99

$

In Stock, only 3 left!

0

13

Echo 17801302060

SPRING, LOCKOUT LEVER

$2.49

$

Usually ships in 2-4 days

0

14

Echo 17801202061

LEVER, TRIGGER LOCKOUT

$5.49

$

Usually ships in 2-4 days

0

15

Echo 17805201260

BRACKET, THROTTLE CONTROL - LEFT
(Superseded to 17805201261)

$3.99

$

In Stock, only 1 left!

0

16

Echo 90024504025

SCREW - 4×25

$0.99

$

In Stock, only 1 left!

0

17

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

18

Echo 35164105560

PLATE, HANDLE

$5.99

$

Usually ships in 2-4 days

0

19

Echo 90016205035

SCREW - 5×35

$1.49

$

In Stock, Qty 6

0

20

Echo 17812156030

TIE, CABLE

$2.49

$

Usually ships in 2-4 days

0

21

Echo 89541039131

T-WRENCH 10×19MM
(Superseded to 89541039132)

$3.49

$

In Stock, Qty 20+

0

22

Echo 89512220960

OPEN END WRENCH 17×19 MM

$18.99

$

In Stock, only 1 left!

0

23

Echo 89541220960

HEX BAR 10MM

$

$

Not available

24

Echo 89757005560

CHUCK KEY

$19.99

$

In Stock, only 2 left!

0
