ED-200 - Echo Engine Drill (SN: E01505001001 - E01505999999) Gear Case Parts Diagram

Engine Drill

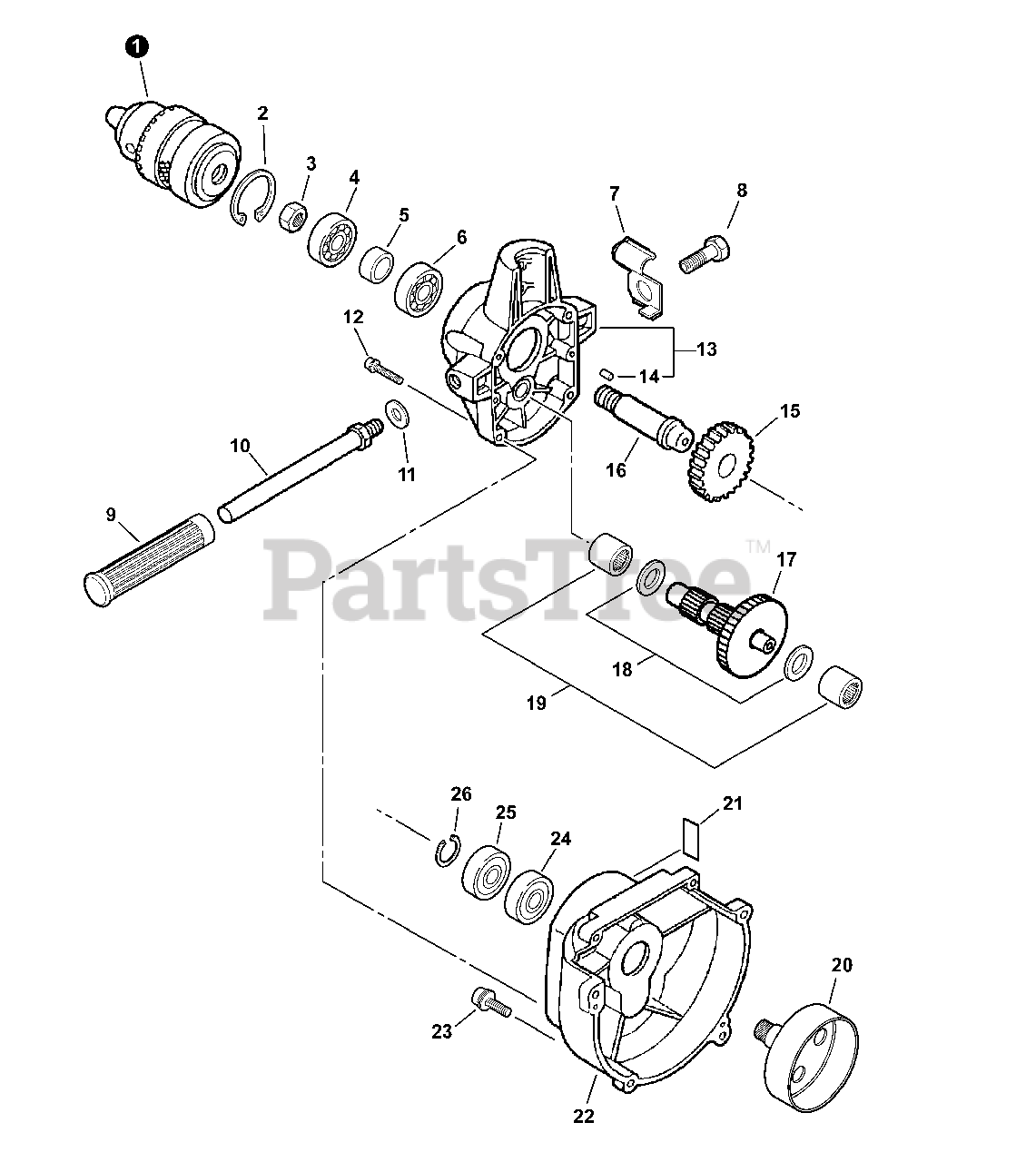

Gear Case Parts Diagram

  • Title

1

Echo 60405105560

CHUCK

$137.99

$

In Stock, only 1 left!

0

2

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 13

0

3

Echo 22431920960

NUT - 12

$14.99

$

Usually ships in 2-4 days

0

4

Echo 90080206002

BEARING, BALL - 6002

$16.99

$

Usually ships in 2-4 days

0

5

Echo 60404405560

COLLAR

$4.49

$

Usually ships in 2-4 days

0

6

Echo 90080036002

BEARING, BALL - 6002

$14.99

$

Usually ships in 2-4 days

0

7

Echo 89757505560

SPRING, FLAT

$6.99

$

Usually ships in 2-4 days

0

8

Echo 90010010015

BOLT - 10×15

$1.49

$

In Stock, only 1 left!

0

9

Echo 35151522330

GRIP, HANDLE
(Superseded to 35131128330)

$6.99

$

In Stock, Qty 5

0

10

Echo 35121005560

HANDLE - FRONT

$21.99

$

In Stock, only 3 left!

0

11

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

12

Echo 90016205025

SCREW - 5×25

$0.99

$

In Stock, Qty 20+

0

13

Echo 60430520960

GEAR CASE ASSY

Note: Includes Item 14

$84.99

$

Usually ships in 2-4 days

0

14

Echo 90033040080

PIN - LOCATING

$0.99

$

In Stock, Qty 20+

0

15

Echo 60422405560

GEAR - SPUR

$49.99

$

Usually ships in 2-4 days

0

16

Echo 60602109060

GEAR - SHAFT

$66.99

$

Usually ships in 2-4 days

0

17

Echo 60420605560

GEAR - SHAFT

$68.99

$

Usually ships in 2-4 days

0

18

Echo 60422305560

WASHER

$3.49

$

Usually ships in 2-4 days

0

19

Echo 60422105560

BEARING, NEEDLE

$9.99

$

Usually ships in 2-4 days

0

20

Echo 17500505560

DRUM, CLUTCH

$60.99

$

Usually ships in 2-4 days

0

21

Echo X505002310

LABEL - HOT SURFACE

$1.99

$

In Stock, Qty 20+

0

22

Echo 10151120960

CASE, FAN

$66.99

$

Usually ships in 2-4 days

0

23

Echo 90024204016

SCREW - 4×16

$0.99

$

In Stock, Qty 20+

0

24

Echo 90080106001

BEARING, BALL - 6001
(Superseded to 90080206001)

$9.99

$

In Stock, only 2 left!

0

25

Echo 90080006001

BEARING, BALL - 6001
(Superseded to 90080036001)

$9.49

$

In Stock, only 3 left!

0

26

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0
