ED-200 - Echo Engine Drill (SN: E01505001001 - E01505999999) Carburetor Parts Diagram

Engine Drill

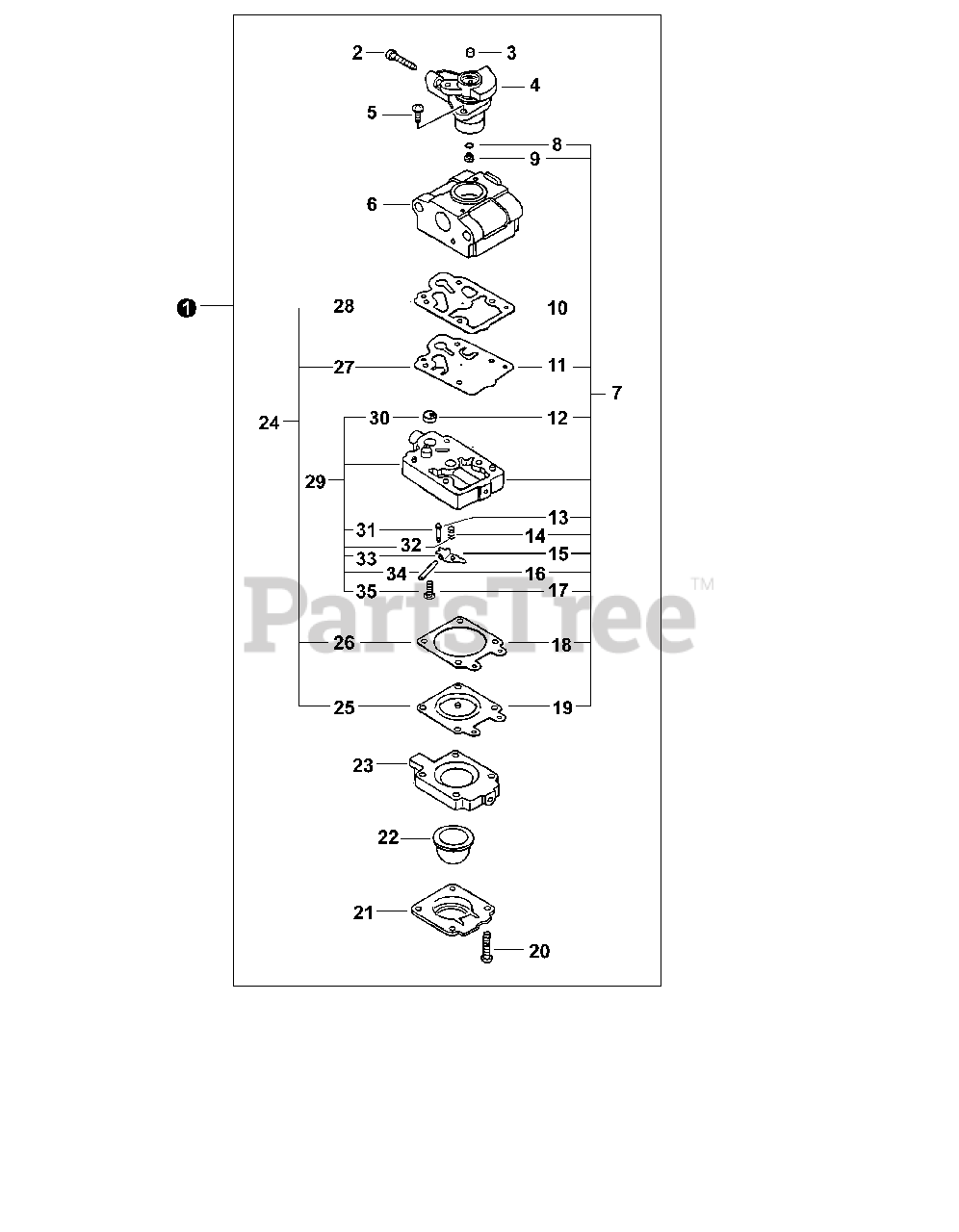

Carburetor Parts Diagram

  • Title
1

Echo A021000541

CARBURETOR WYL-180A

Note: Includes Items 2-35

$82.99

$

In Stock, only 2 left!

0

2

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

3

Echo A259000000

CAP, LIMITER

$0.99

$

Usually ships in 2-4 days

0

4

------------------

THROTTLE VALVE ASSY

$

$

Not available

$0.99

$

Usually ships in 2-4 days

0

6

------------------

BODY, CARBURETOR

$

$

Not available

7

Echo P003001320

REPAIR KIT

Note: Includes Items 8-19

$16.99

$

Usually ships in 2-4 days

0

8

------------------

O-RING

$

$

Not available

9

------------------

JET

$

$

Not available

10

------------------

GASKET, PUMP

$

$

Not available

11

------------------

DIAPHRAGM, PUMP

$

$

Not available

12

------------------

STRAINER

$

$

Not available

13

------------------

VALVE, INLET NEEDLE

$

$

Not available

14

------------------

SPRING, METERING LEVER

$

$

Not available

15

------------------

LEVER, METERING

$

$

Not available

16

------------------

PIN, METERING LEVER

$

$

Not available

17

------------------

SCREW, METERING LEVER PIN

$

$

Not available

18

------------------

GASKET, DIAPHRAGM

$

$

Not available

19

------------------

DIAPHRAGM, METERING

$

$

Not available

20

Echo 12311005560

SCREW, PUMP COVER

$2.99

$

In Stock, Qty 20+

0

21

Echo 12314205560

RETAINER, PURGE BULB

$4.49

$

In Stock, Qty 20+

0

22

Echo 12318140630

BULB, PURGE

$5.49

$

In Stock, Qty 20+

0

23

Echo 12318005560

PURGE BASE ASSY

$7.49

$

In Stock, only 1 left!

0

24

Echo P003001310

GASKET/DIAPHRAGM KIT

Note: Includes Items 25-28

$6.99

$

In Stock, only 2 left!

0

25

------------------

DIAPHRAGM, METERING

$

$

Not available

26

------------------

GASKET, DIAPHRAGM

$

$

Not available

27

------------------

DIAPHRAGM, PUMP

$

$

Not available

28

------------------

GASKET, PUMP

$

$

Not available

29

Echo 12317905560

BASE, PURGE

Note: Includes Items 30-35

$16.99

$

In Stock, only 1 left!

0

30

------------------

STRAINER

$

$

Not available

31

------------------

VALVE, INLET NEEDLE

$

$

Not available

32

------------------

SPRING, METERING LEVER

$

$

Not available

33

------------------

LEVER, METERING

$

$

Not available

34

------------------

PIN, METERING LEVER

$

$

Not available

35

------------------

SCREW, METERING LEVER PIN

$

$

Not available
