ECXKABBC21 - Exmark 21" X-Series Walk-Behind Mower, Kawasaki FJ180V, BBC (SN: 313000000 - 313999999) (2013) Engine Assembly Parts Diagram

21" X-Series Walk-Behind Mower, Kawasaki FJ180V, BBC

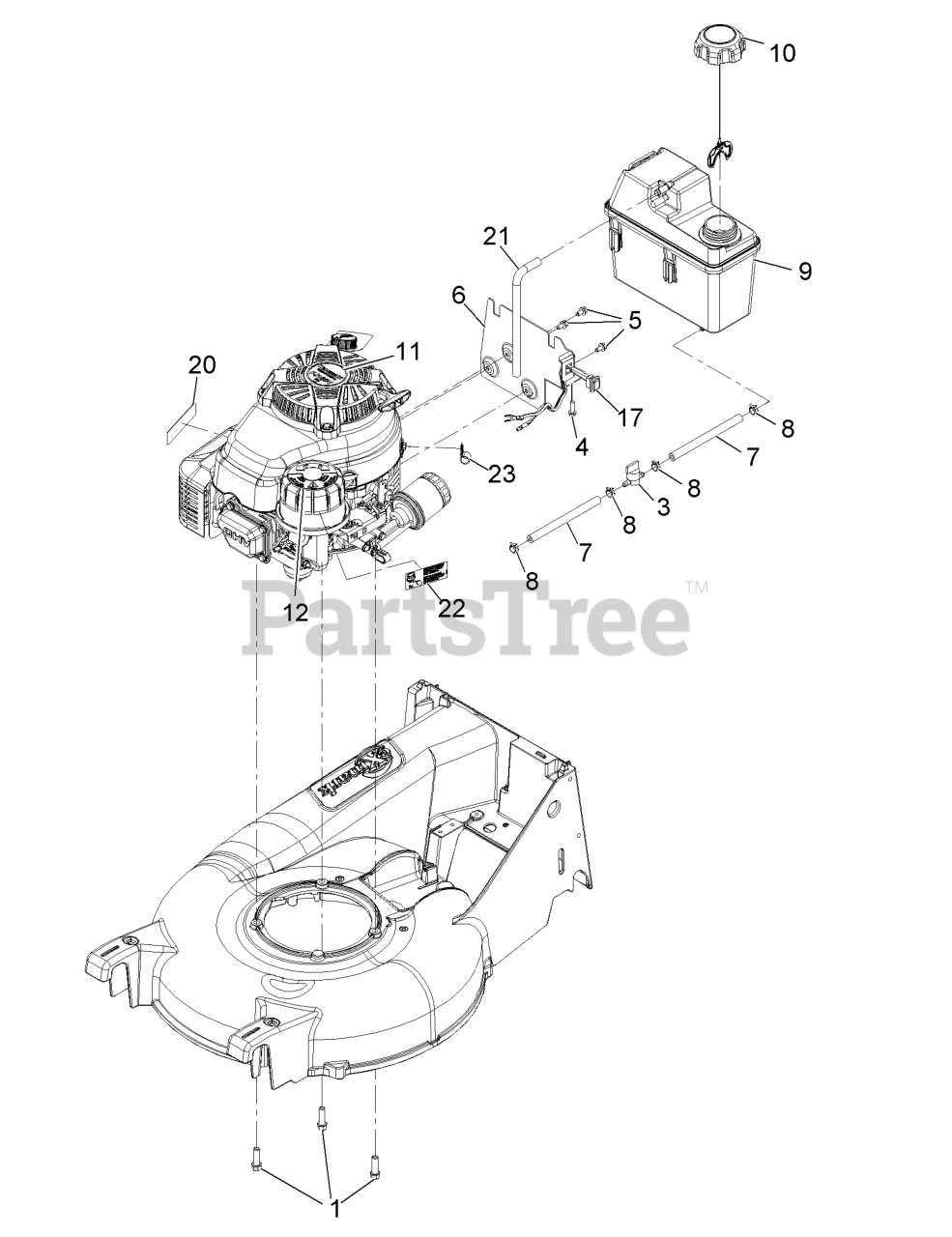

Engine Assembly Parts Diagram

  • Title

1

Exmark 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

3

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

4

Exmark 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

5

Exmark 104-2628

SCREW-HWH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.99

$

Usually ships in 3-6 days

0

6

Exmark 109-9291-03

BRACKET,FUEL TANK

$33.99

$

In Stock, Qty 8

0

7

Exmark 107-0588

HOSE-FUEL

$5.99

$

In Stock, only 4 left!

0

8

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

9

Exmark 114-0280

TANK-FUEL

$144.99

$

In Stock, only 4 left!

0

10

Exmark 109-6776

137-4127
(Superseded to 137-4127)

$23.99

$

In Stock, only 2 left!

0

11

Exmark 109-6528

DECAL

$6.49

$

In Stock, only 2 left!

0

12

Exmark 114-3415

DECAL

$7.49

$

In Stock, only 1 left!

0

17

Exmark 116-2806

HARNESS,RUN/STOP

$54.99

$

Usually ships in 3-6 days

0

20

Exmark 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

21

Exmark 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0

22

Exmark 109-8191

DECAL, PRIMER

$8.99

$

Usually ships in 3-6 days

0

23

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0
