ECX200CKC30000 - Exmark 30" X-Series Walk-Behind Mower, Kohler (SN: 411294212 - 413950473) (Rev B) (2022) Suspension Traction Assembly Parts Diagram

30" X-Series Walk-Behind Mower, Kohler

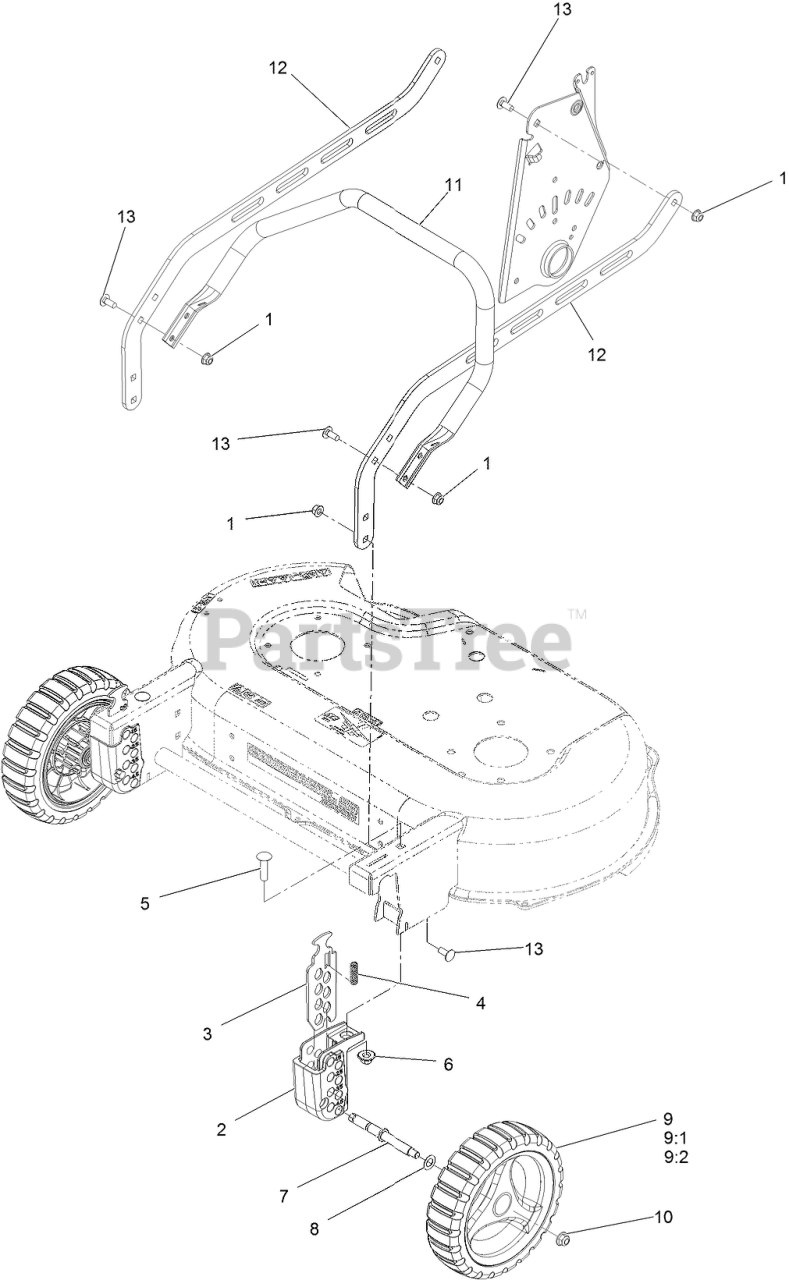

Suspension Traction Assembly Parts Diagram

  • Title

1

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Exmark 116-6357

BLOCK-FRONT QUADRANT

$25.99

$

In Stock, only 4 left!

0

3

Exmark 109-9292

PLATE, FRONT HEIGHT

$16.99

$

In Stock, only 2 left!

0

4

Exmark 109-7258

SPRING-COMPRESSION

$2.99

$

In Stock, Qty 15

0

5

Exmark 3231-26

SCREW-CARR

$5.49

$

In Stock, only 3 left!

0

6

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 2 left!

0

7

Exmark 116-0994

AXLE-WHEEL

$10.99

$

In Stock, Qty 7

0

8

Exmark 36-4780

WASHER-PLAIN

$7.99

$

In Stock, only 2 left!

0

9

Exmark 126-7347

WHEEL ASM, 9" W/BEARINGS

$86.99

$

In Stock, Qty 5

0

9:1

Exmark 126-7345

WHEEL ASM, 9

$68.99

$

In Stock, only 2 left!

0

9:2

Exmark 133-2603

BEARING-BALL

$25.99

$

In Stock, Qty 12

0

10

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 116-7675-03

GUARD-ENGINE

$57.99

$

Usually ships in 3-6 days

0

12

Exmark 116-7661-03

BRACE-RH

$44.99

$

In Stock, only 1 left!

0

13

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0
