ECX200CKC30000 - Exmark 30" X-Series Walk-Behind Mower, Kohler (SN: 411294212 - 413950473) (Rev B) (2022) Engine and Fuel Tank Assembly Parts Diagram

30" X-Series Walk-Behind Mower, Kohler

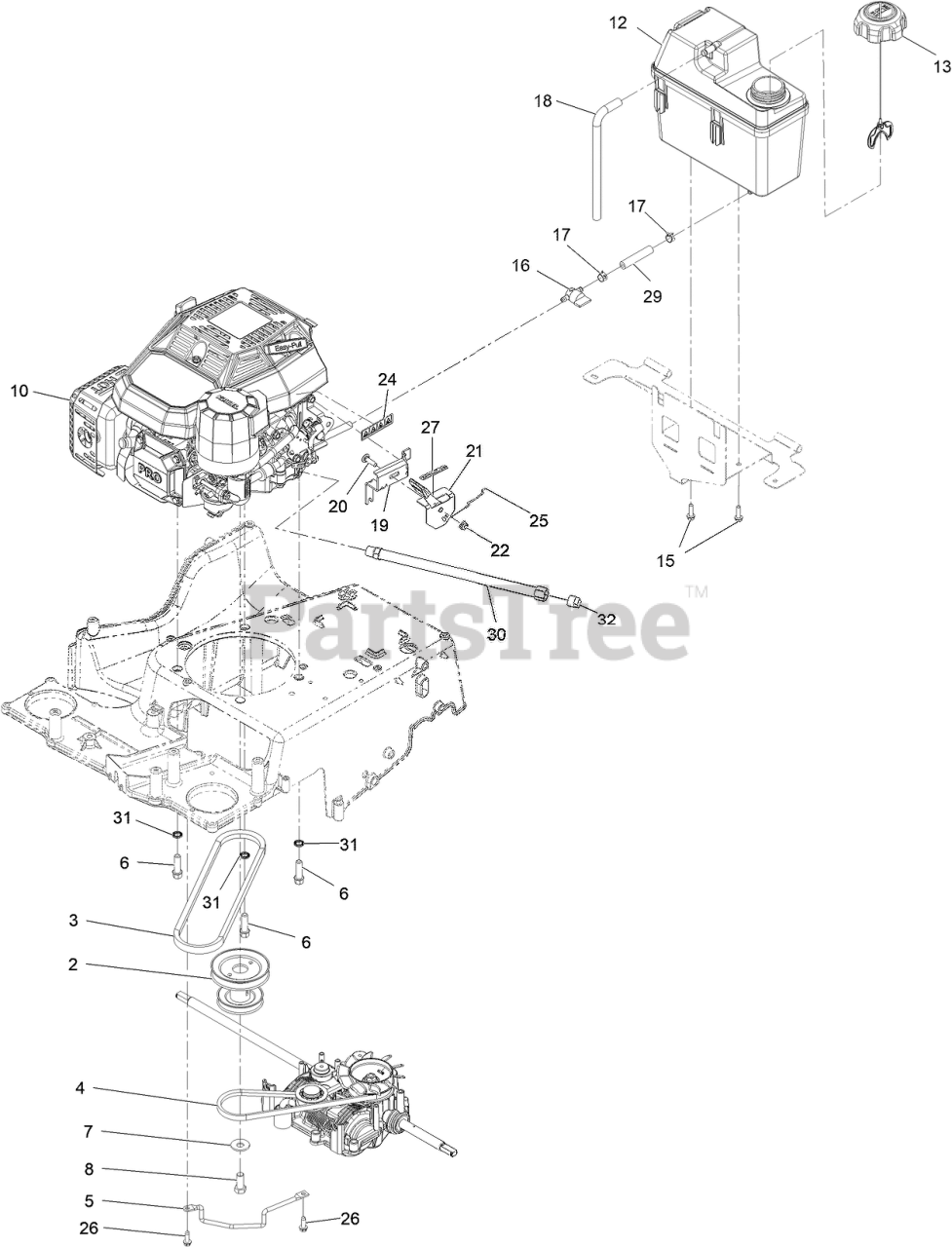

Engine and Fuel Tank Assembly Parts Diagram

  • Title

2

Exmark 137-9181

Pulley-Engine

$47.99

$

In Stock, only 4 left!

0

3

Exmark 121-5765

V-BELT

$19.99

$

In Stock, Qty 20+

0

4

Exmark 133-8151

BELT-V

$23.99

$

In Stock, Qty 20+

0

5

Exmark 138-5331-03

ROD-GUIDE, BELT

$13.99

$

In Stock, Qty 5

0

6

Exmark 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Exmark 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

8

Exmark 3212-4

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

10

Engine-Kohler

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

$

$

Not available

12

Exmark 114-0280

TANK-FUEL

$144.99

$

In Stock, Qty 11

0

13

Exmark 137-4127

CAP-FUEL

$23.99

$

In Stock, only 2 left!

0

15

Exmark 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

16

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 5

0

17

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

18

Exmark 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, Qty 12

0

19

Exmark 145-1504-03

BRACKET-THROTTLE

$25.99

$

In Stock, Qty 20+

0

20

Exmark 3229-30

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

Exmark 130-9655

CONTROL-THROTTLE

$43.99

$

In Stock, Qty 15

0

22

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Exmark 116-9313

DECAL-WARNING, ENGINE

$1.99

$

Usually ships in 3-6 days

0

25

Exmark 138-5387

Wire-Link

$2.99

$

In Stock, Qty 18

0

26

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

27

Exmark 130-9656

DECAL-THROTTLE, CHOKE

$2.99

$

In Stock, Qty 8

0

29

Exmark 109-0304

HOSE-FUEL

$2.49

$

In Stock, Qty 11

0

30

Exmark 117-1261

HOSE-DRAIN, OIL

$29.99

$

In Stock, only 3 left!

0

31

Exmark 145-3960

WASHER-LOCK

$2.99

$

In Stock, Qty 12

0

32

Exmark 281-2

PLUG-PIPE, SQH

$2.99

$

Usually ships in 3-6 days

0
