ECX200CKC30000 - Exmark 30" X-Series Walk-Behind Mower, Kohler (SN: 408644346 - 411294211) (Rev B) (2021) Side Discharge Chute Assembly Parts Diagram

30" X-Series Walk-Behind Mower, Kohler

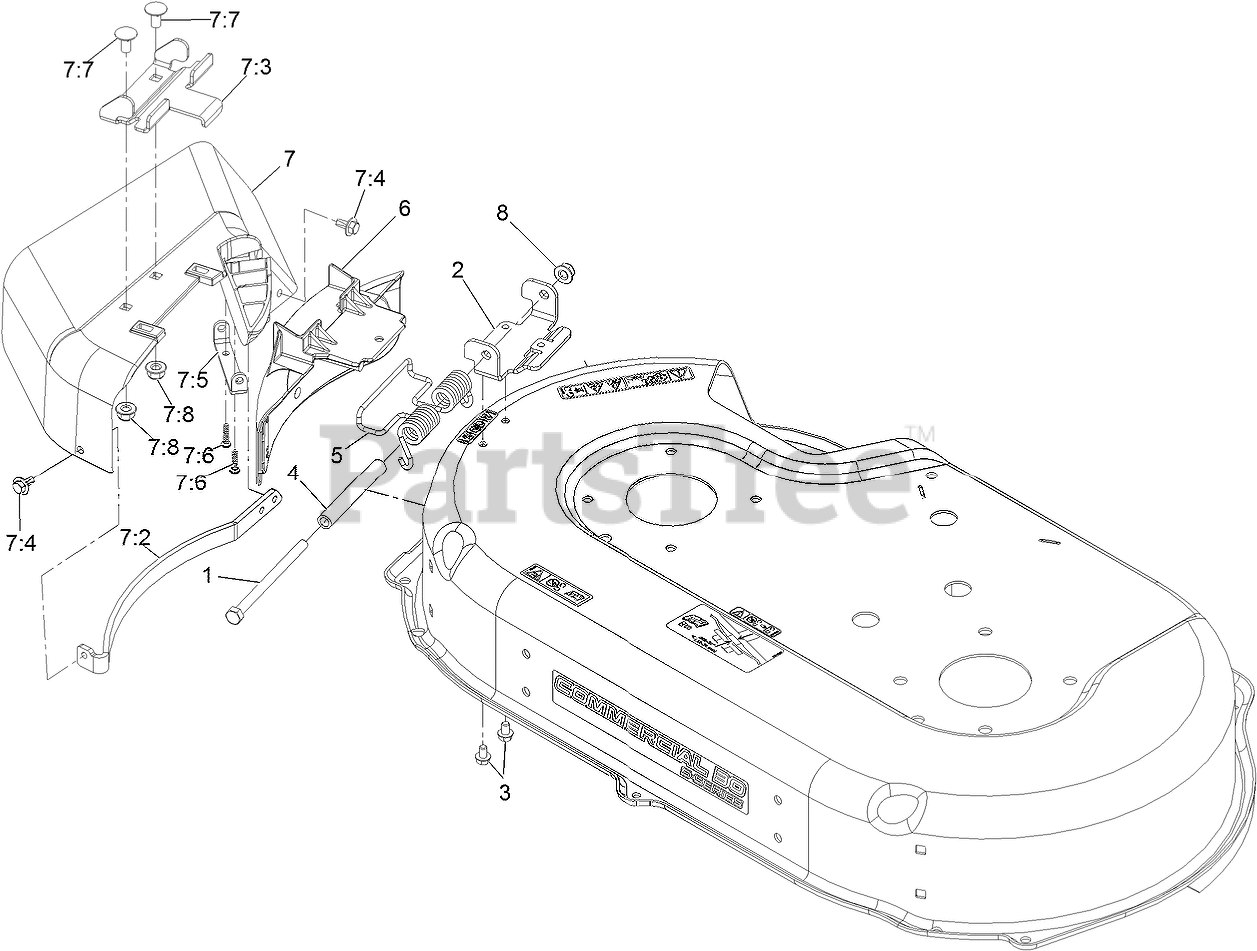

Side Discharge Chute Assembly Parts Diagram

  • Title

1

Exmark 322-38

SCREW-HH

$6.99

$

In Stock, Qty 5

0

2

Exmark 121-9195

HINGE

$17.99

$

Usually ships in 3-6 days

0

3

Exmark 137-4795

Screw

$1.49

$

In Stock, Qty 20+

0

4

Exmark 125-2478

SPACER

$9.49

$

Usually ships in 3-6 days

0

5

Exmark 121-9193

SPRING-TORSION

$28.99

$

In Stock, only 1 left!

0

6

Exmark 125-5093-01

COVER-DISCHARGE

$36.99

$

In Stock, Qty 20+

0

7

Exmark 116-9754

SIDE DISCHARGE CHUTE ASM

$67.99

$

In Stock, Qty 5

0

7:2

Exmark 116-9752-03

GUARD-CHUTE

$22.99

$

In Stock, only 1 left!

0

7:3

Exmark 121-9196

BRACKET-CHUTE

$22.99

$

In Stock, only 1 left!

0

7:4

Exmark 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

7:5

Exmark 112-6416

BRACKET-COVER

$2.99

$

In Stock, Qty 20+

0

7:6

Exmark 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

7:7

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

7:8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
