ECX180CKA30000 - Exmark 30" X-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 411294212 - 413950473) (Rev B) (2022) Deck, Frame, and Chute Assembly Parts Diagram

30" X-Series Walk-Behind Mower, Kawasaki FJ180V

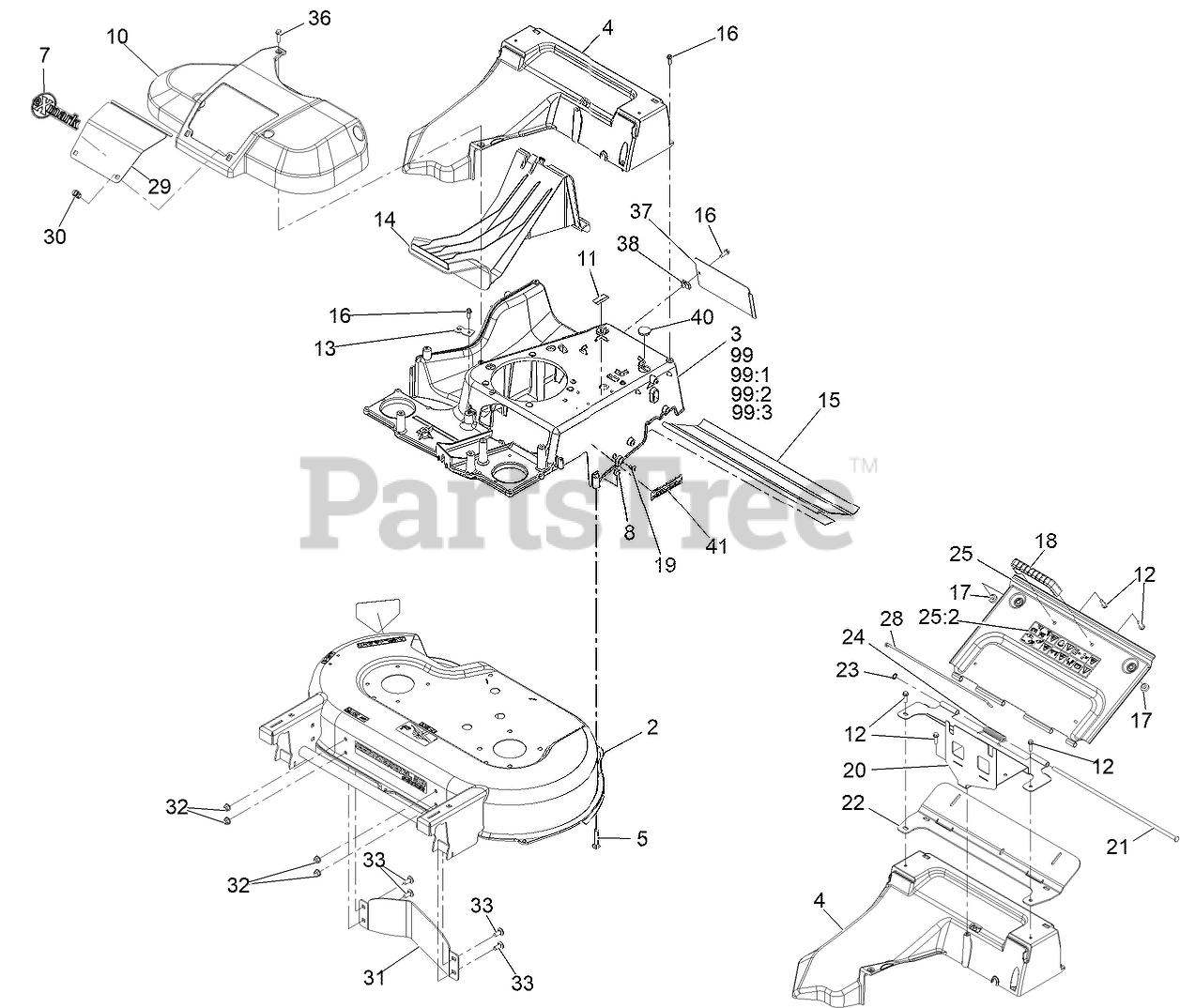

Deck, Frame, and Chute Assembly Parts Diagram

  • Title

2

Exmark 142-2491

DECK-30, X-SERIES W/DECALS

$475.99

$

Usually ships in 3-6 days

0

3

Exmark 133-8107-01

FRAME
(Superseded to 145-3920-01)

$240.99

$

In Stock, Qty 5

0

4

Exmark 133-8177

CHUTE

$58.99

$

Usually ships in 3-6 days

0

5

Exmark 3230-5

BOLT-CAR

$0.99

$

In Stock, Qty 20+

0

7

Exmark 126-6575

DECAL-EXMARK LOGO

$6.49

$

In Stock, only 1 left!

0

8

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Exmark 139-5406

COVER-BELT

$36.99

$

In Stock, Qty 8

0

11

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9

0

12

Exmark 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

13

Exmark 138-3224

BRACKET-CABLE, TRACTION

$2.99

$

In Stock, Qty 5

0

14

Exmark 120-5225

PLUG-MULCH

$29.99

$

In Stock, Qty 13

0

15

Exmark 121-5841

SHIELD-TRAILING

$22.99

$

In Stock, only 2 left!

0

16

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

17

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 9

0

18

Exmark 65-5100

HANDLE-DOOR

$9.99

$

In Stock, only 2 left!

0

19

Exmark 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

20

Exmark 142-8180-03

Weld-Tank Mount

$71.99

$

Usually ships in 0 days

0

21

Exmark 116-6933

PIN-HINGE

$8.99

$

Usually ships in 3-6 days

0

22

Exmark 116-6229

SEAL-DOOR

$22.99

$

In Stock, Qty 16

0

23

Exmark 32151-72

RING-RETAINING

$1.99

$

Usually ships in 3-6 days

0

24

Exmark 116-7573

SPRING-TORSION, COVER

$5.49

$

Usually ships in 3-6 days

0

25

Exmark 116-8355

REAR DOOR ASM

$72.99

$

In Stock, only 1 left!

0

25:2

Exmark 116-7583

DECAL-WARNING

$17.99

$

In Stock, Qty 11

0

28

Exmark 116-6966

CLIP-SEAL

$6.49

$

Usually ships in 3-6 days

0

29

Exmark 121-5793-03

DOOR-ACCESS

$17.99

$

In Stock, only 4 left!

0

30

Exmark 121-5840

FASTENER

$6.49

$

In Stock, Qty 20+

0

31

Exmark 130-2352-01

BAFFLE-CONTROL

$27.99

$

Usually ships in 3-6 days

0

32

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

33

Exmark 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

36

Exmark 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

37

Exmark 138-5332-01

Cover-Frame

$8.49

$

In Stock, Qty 5

0

38

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

40

Exmark 126-7151

PLUG-BUTTON

$5.49

$

In Stock, Qty 20+

0

41

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

99

Exmark 125-5072

FRAME PLATE KIT

$49.99

$

Usually ships in 3-6 days

0

99:1

Exmark 125-2542

PLATE-FRAME

$44.99

$

Usually ships in 3-6 days

0

99:2

Exmark 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

99:3

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
