ECX180CKA210BC - Exmark 21" X-Series Walk-Behind Mower, Kawasaki FJ180V, BBC (SN: 406294345 - 408644345) (Rev A) (2020) Handle Assembly Parts Diagram

21" X-Series Walk-Behind Mower, Kawasaki FJ180V, BBC

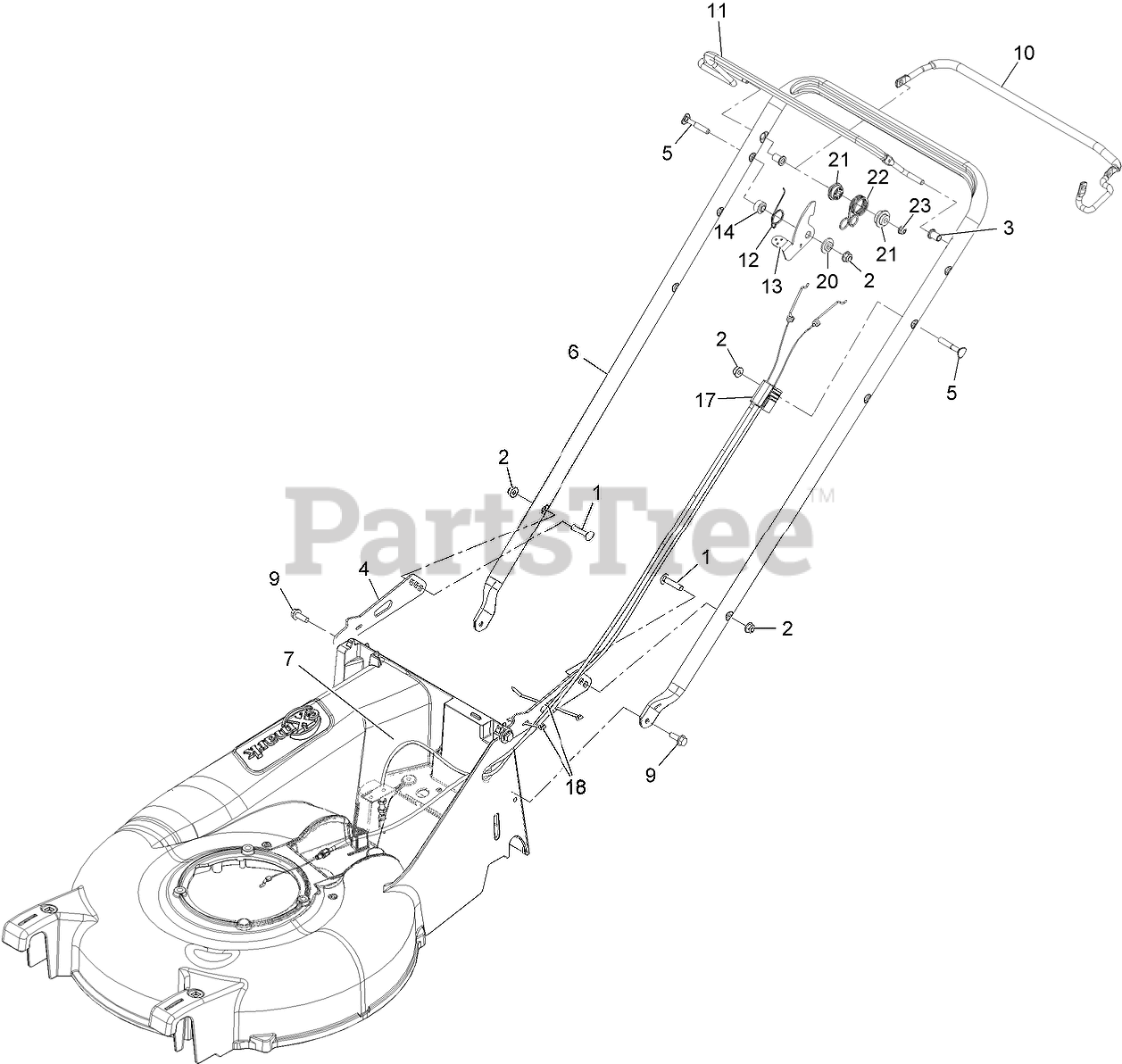

Handle Assembly Parts Diagram

  • Title

1

Exmark 33-5790

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

2

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

3

Exmark 116-1478

BUSHING-HANDLEBAR

$6.49

$

In Stock, only 2 left!

0

4

Exmark 109-9323-03

BRACKET,HANDLEBAR

$8.49

$

In Stock, only 2 left!

0

5

Exmark 112-8876

92-2260
(Superseded to 92-2260)

$3.99

$

In Stock, only 2 left!

0

6

Exmark 116-0119-03

HANDLEBAR-P21

$138.99

$

In Stock, only 4 left!

0

7

Exmark 126-7397

CABLE, DRIVE EC21

$44.99

$

In Stock, Qty 19

0

9

Exmark 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

10

Exmark 116-7907

BAIL-DRIVE COATED

$50.99

$

In Stock, only 2 left!

0

11

Exmark 109-8442

BAIL

$51.99

$

In Stock, only 1 left!

0

12

Exmark 109-9318

SPRING-LEVER, BBC

$6.49

$

In Stock, Qty 9

0

13

Exmark 116-2998

LEVER-BBC

$18.99

$

Usually ships in 3-6 days

0

14

Exmark 116-2690

BUSHING-STEPPED

$13.99

$

In Stock, only 4 left!

0

17

Exmark 116-0901

CABLE-BBC

$35.99

$

In Stock, only 1 left!

0

18

Exmark 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

20

Exmark 105-3006

WASHER-STEPPED

$2.99

$

In Stock, only 1 left!

0

21

Exmark 109-8457

BUSHING-SPRING, PIVOT

$6.49

$

In Stock, only 3 left!

0

22

Exmark 109-9293

SPRING,BBC RETURN

$10.99

$

Usually ships in 3-6 days

0

23

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
