ECX180CKA210BC - Exmark 21" X-Series Walk-Behind Mower, Kawasaki FJ180V, BBC (SN: 316000000 - 399999999) (2016) Engine Assembly Parts Diagram

21" X-Series Walk-Behind Mower, Kawasaki FJ180V, BBC

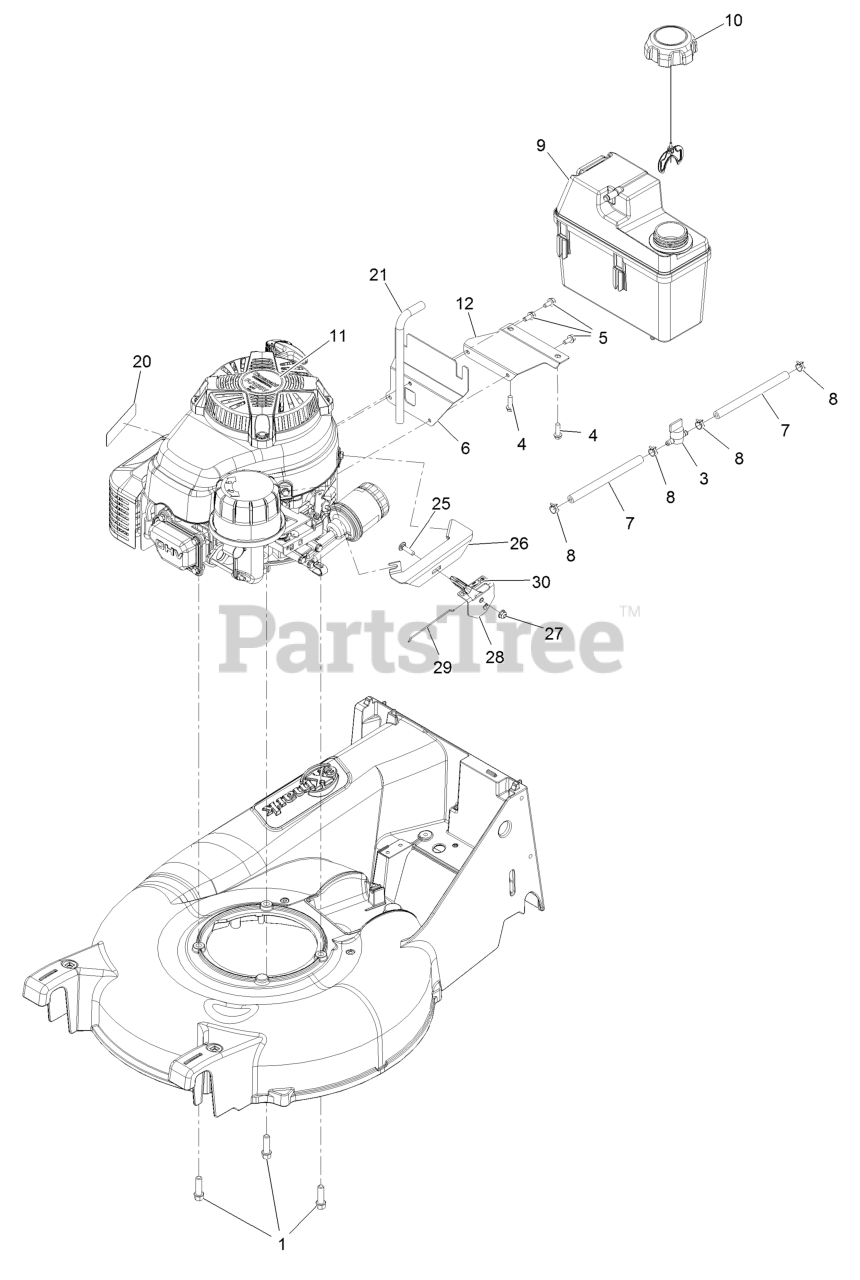

Engine Assembly Parts Diagram

  • Title

1

Exmark 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

3

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

4

Exmark 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

5

Exmark 125-8383

SCREW-HWH

$2.99

$

Usually ships in 3-6 days

0

6

Exmark 125-8381-03

BRACKET-TANK, MOUNTING

$13.99

$

In Stock, only 3 left!

0

7

Exmark 107-0588

HOSE-FUEL

$5.99

$

In Stock, only 4 left!

0

8

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

9

Exmark 114-0280

TANK-FUEL

$144.99

$

In Stock, only 4 left!

0

10

Exmark 109-6776

137-4127
(Superseded to 137-4127)

$23.99

$

In Stock, only 2 left!

0

11

Exmark 109-6528

DECAL

$6.49

$

In Stock, only 2 left!

0

12

Exmark 125-8382-03

BRACKET-TANK, SUPPORT

$11.99

$

Usually ships in 3-6 days

0

20

Exmark 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

21

Exmark 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0

25

Exmark 3229-30

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

26

Exmark 130-6440-03

BRACKET-MOUNT, THROTTLE

$33.99

$

In Stock, only 2 left!

0

27

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Exmark 130-9655

CONTROL-THROTTLE

$43.99

$

In Stock, only 4 left!

0

29

Exmark 130-9654

WIRE-CONTROL

$2.99

$

In Stock, Qty 20+

0

30

Exmark 130-9656

DECAL-THROTTLE, CHOKE

$2.99

$

In Stock, only 2 left!

0
