ECX180CKA210BC - Exmark 21" X-Series Walk-Behind Mower, Kawasaki FJ180V, BBC (SN: 315000000 - 315999999) (2015) Deck and Wheel Assembly (Part 2) Parts Diagram

21" X-Series Walk-Behind Mower, Kawasaki FJ180V, BBC

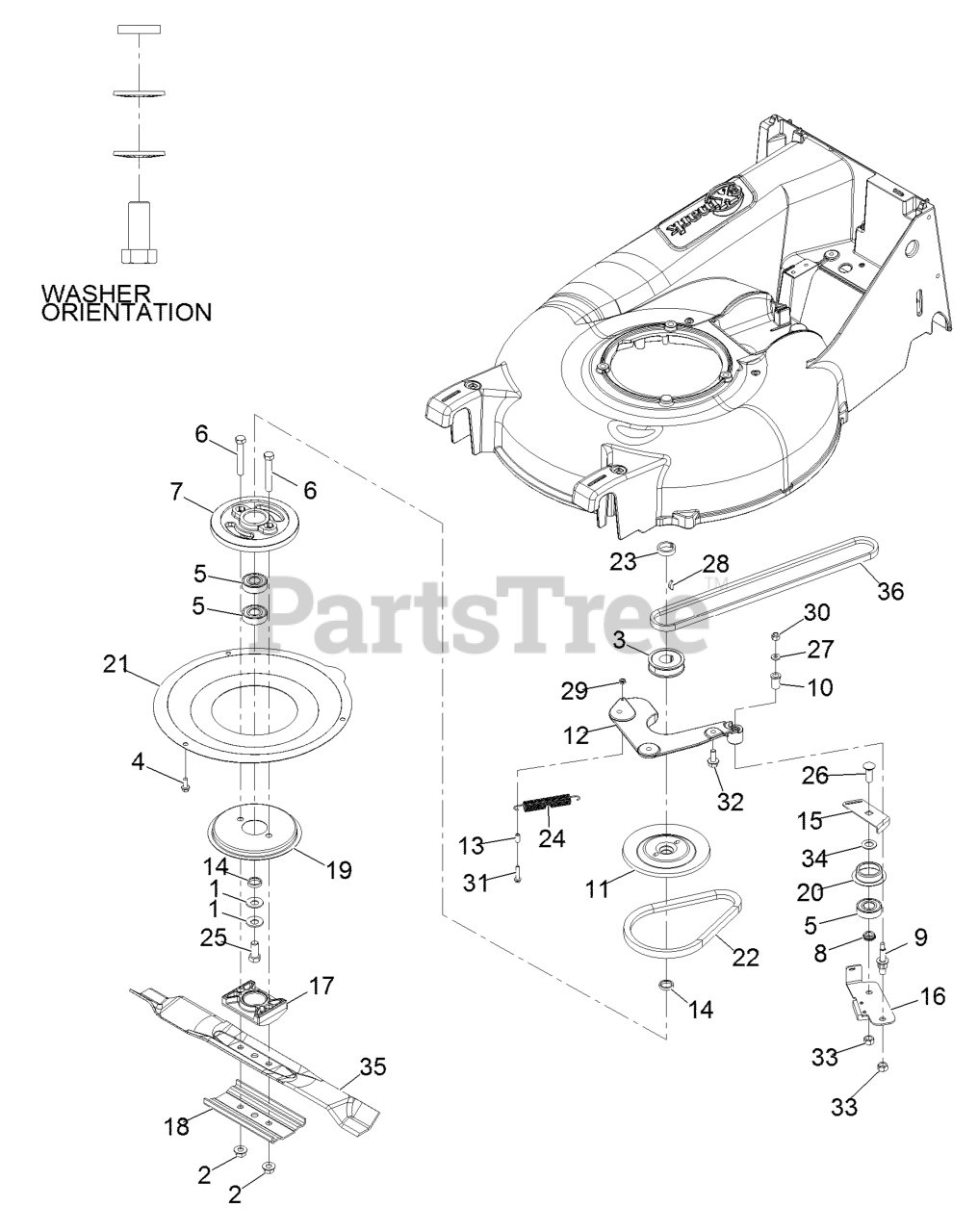

Deck and Wheel Assembly (Part 2) Parts Diagram

  • Title

1

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 10

0

2

Exmark 127-6852

NUT-FLANGE, LOCK

$2.99

$

In Stock, Qty 20+

0

3

Exmark 56-6180

PULLEY-DRIVER

$51.99

$

In Stock, Qty 9

0

4

Exmark 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

5

Exmark 100-1048

38-7820
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

6

Exmark 3211-42

SCREW-HH

$4.99

$

In Stock, Qty 14

0

7

Exmark 107-0754

126-8108
(Superseded to 126-8108)

$54.99

$

In Stock, only 1 left!

0

8

Exmark 107-0758

SPACER-BEARING

$3.49

$

In Stock, Qty 6

0

9

Exmark 107-0759

BOLT-SHOULDER

$10.99

$

In Stock, Qty 16

0

10

Exmark 107-0797

BUSHING

$6.49

$

In Stock, Qty 9

0

11

Exmark 107-4277-03

PULLEY-DRIVER, UPPER

$149.99

$

In Stock, only 2 left!

0

12

Exmark 116-3572

PLATE-MOUNTING, BBC

$47.99

$

In Stock, only 2 left!

0

13

Exmark 107-4292

SPACER-BBC

$7.99

$

In Stock, only 1 left!

0

14

Exmark 107-4293

SPACER-PLATE, BBC

$12.99

$

In Stock, only 2 left!

0

15

Exmark 107-7471

PLATE-GUIDE
(Superseded to 138-3222)

$3.49

$

In Stock, Qty 20+

0

16

Exmark 125-1063

PLATE-BRAKE

$23.99

$

In Stock, Qty 5

0

17

Exmark 107-7487

SUPPORT-BLADE

$21.99

$

In Stock, only 1 left!

0

18

Exmark 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

19

Exmark 108-3787

DISC
(Superseded to 138-3225)

$12.99

$

In Stock, only 4 left!

0

20

Exmark 108-3790

RETAINER-BELT
(Superseded to 138-3217)

$2.99

$

In Stock, Qty 20+

0

21

Exmark 116-3360-03

COVER-BBC

$62.99

$

In Stock, only 2 left!

0

22

Exmark 110-1790

BELT
(Superseded to 110-1790-SL)

$35.99

$

Usually ships in 3-6 days

0

23

Exmark 110-2142

SPACER-PULLEY

$22.99

$

Usually ships in 3-6 days

0

24

Exmark 115-4471

SPRING-EXTENSION

$20.99

$

In Stock, only 4 left!

0

25

Exmark 3212-4

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$3.49

$

In Stock, only 2 left!

0

26

Exmark 3231-38

SCREW-CARR

$7.99

$

In Stock, only 1 left!

0

27

Exmark 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Exmark 3257-17

KEY-WOODRUFF

$5.49

$

In Stock, only 1 left!

0

29

Exmark 3296-27

NUT-LOCK, NI

$1.49

$

In Stock, Qty 10

0

30

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

31

Exmark 32144-9

SCREW-TAP

$5.49

$

In Stock, only 2 left!

0

32

Exmark 33104-020

SCREW-HHF

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$3.49

$

In Stock, only 3 left!

0

33

Exmark 125-5069

NUT-HEX
(Superseded to 603773)

$2.99

$

In Stock, only 4 left!

0

34

Exmark 605256

SPACER

$2.99

$

In Stock, Qty 20+

0

35

Exmark 116-4500

116-4500-S
(Superseded to 116-4500-S)

$29.99

$

In Stock, Qty 14

0

36

Exmark 109-7299

BELT,3L P21 DRIVE
(Superseded to 109-7299-SL)

$28.99

$

In Stock, Qty 20+

0
