ECX180CKA21000 - Exmark 21" X-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 316000000 - 399999999) (2016) Handle Assembly Parts Diagram

21" X-Series Walk-Behind Mower, Kawasaki FJ180V

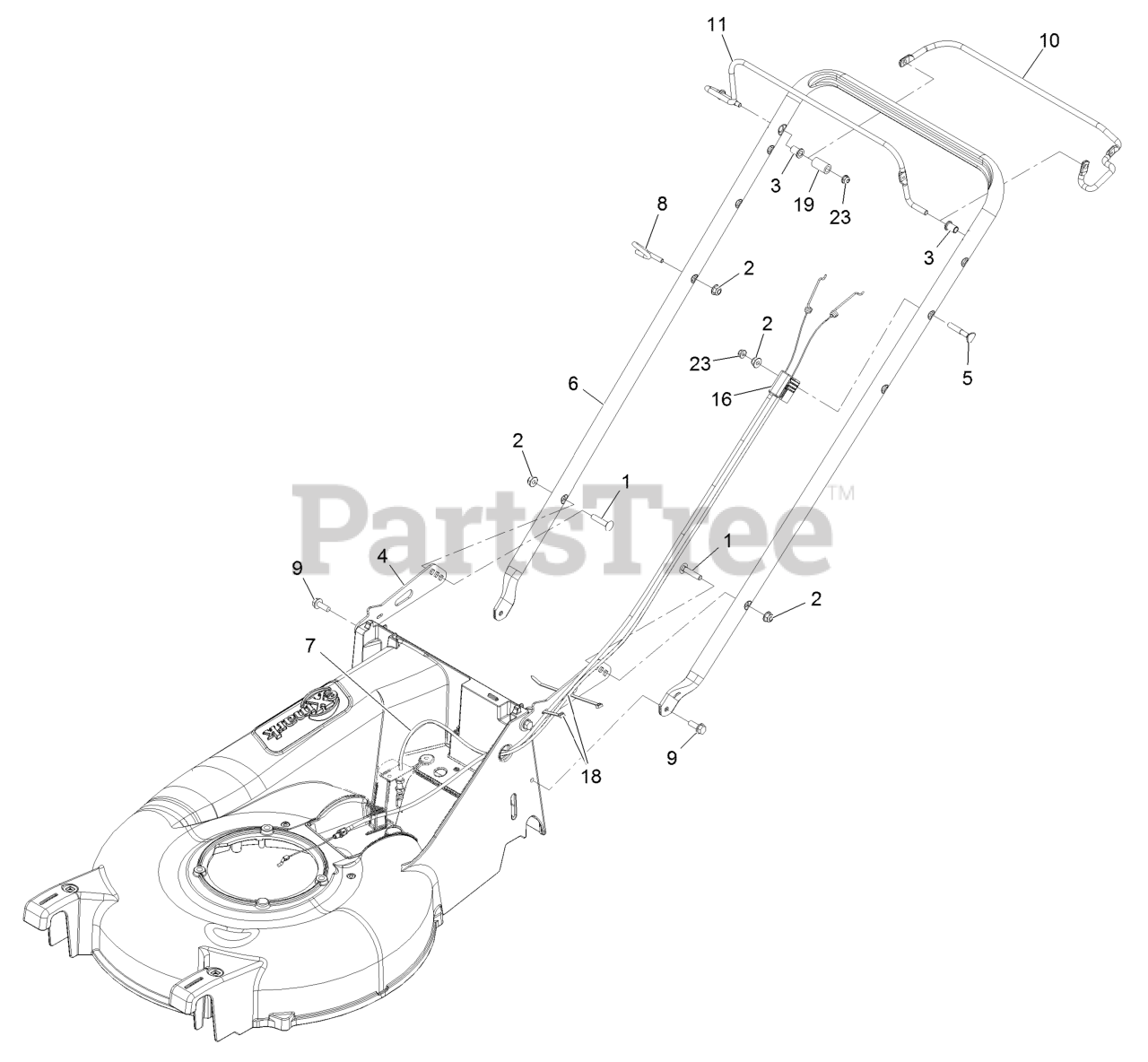

Handle Assembly Parts Diagram

  • Title

1

Exmark 33-5790

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

2

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

3

Exmark 116-1478

BUSHING-HANDLEBAR

$6.49

$

In Stock, only 2 left!

0

4

Exmark 109-9323-03

BRACKET,HANDLEBAR

$8.49

$

In Stock, only 2 left!

0

5

Exmark 112-8876

92-2260
(Superseded to 92-2260)

$3.99

$

In Stock, only 2 left!

0

6

Exmark 116-0119-03

HANDLEBAR-P21

$138.99

$

In Stock, only 4 left!

0

7

Exmark 126-7397

CABLE, DRIVE EC21

$44.99

$

In Stock, Qty 19

0

8

Exmark 116-1056

GUIDE,ROPE

$6.49

$

In Stock, only 2 left!

0

9

Exmark 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

10

Exmark 116-7907

BAIL-DRIVE COATED

$50.99

$

In Stock, only 2 left!

0

11

Exmark 109-8442

BAIL

$51.99

$

In Stock, only 1 left!

0

16

Exmark 116-0905

CABLE-ZONE KAWASAKI

$33.99

$

In Stock, Qty 20+

0

18

Exmark 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

19

Exmark 1-603401

SPACER

$6.99

$

In Stock, Qty 8

0

23

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
