ECX160CHN21000 - Exmark 21" X-Series Walk-Behind Mower, Honda GXV160 (SN: 402082300 - 404314158) (2018) Handle Assembly Parts Diagram

21" X-Series Walk-Behind Mower, Honda GXV160

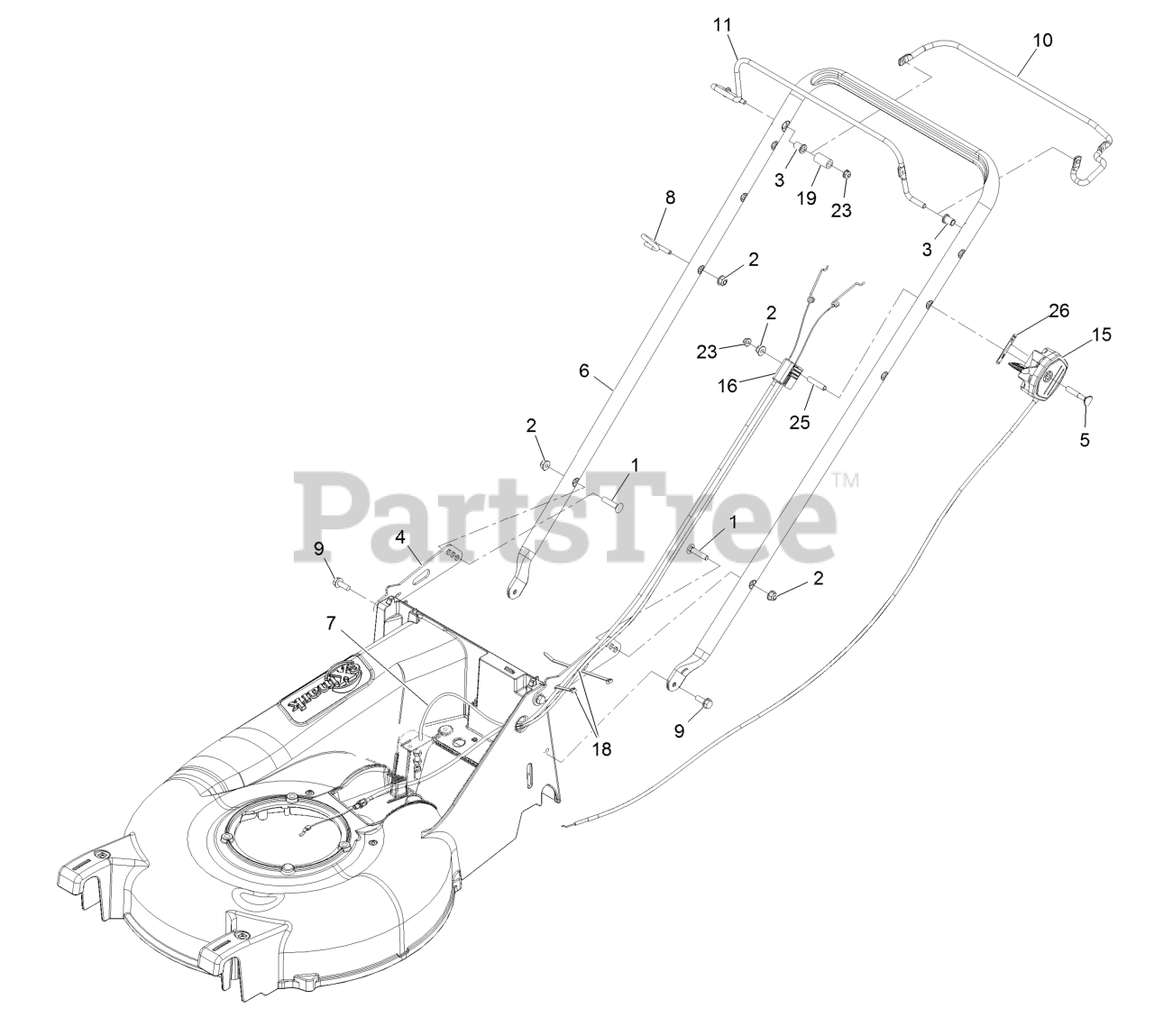

Handle Assembly Parts Diagram

  • Title

1

Exmark 33-5790

Bolt-Carriage 5/16-18 X 1 1/2

$5.49

$

Usually ships in 3-6 days

0

2

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

3

Exmark 116-1478

Bushing-Handlebar

$6.49

$

In Stock, only 2 left!

0

4

Exmark 109-9323-03

Bracket,Handlebar

$8.49

$

In Stock, only 2 left!

0

5

Exmark 321-23

Screw-HH

$4.49

$

Usually ships in 3-6 days

0

6

Exmark 116-0119-03

Handlebar-P21

$138.99

$

In Stock, only 4 left!

0

7

Exmark 126-7397

Cable, Drive Ec21

$44.99

$

In Stock, Qty 19

0

8

Exmark 116-1056

Guide,Rope

$6.49

$

In Stock, only 2 left!

0

9

Exmark 32144-41

Screw-HWH 3/8-16 X 7/8 Taptite

$5.49

$

In Stock, Qty 20+

0

10

Exmark 116-7907

Bail-Drive Coated

$50.99

$

In Stock, only 2 left!

0

11

Exmark 109-8442

Bail

$51.99

$

In Stock, only 1 left!

0

15

Exmark 116-4424

Cable-Throttle/Choke

$70.99

$

In Stock, only 2 left!

0

16

Exmark 116-4443

Cable-Zone Honda

$46.99

$

In Stock, only 1 left!

0

18

Exmark 614249

Tie-Cable

$1.49

$

In Stock, Qty 6

0

19

Exmark 1-603401

Spacer

$6.99

$

In Stock, Qty 8

0

23

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

25

Exmark 116-3035

Spacer-Throttle

$6.99

$

Usually ships in 3-6 days

0

26

Exmark 103-6327

Decal, Throttle/Choke

$6.49

$

Usually ships in 3-6 days

0
