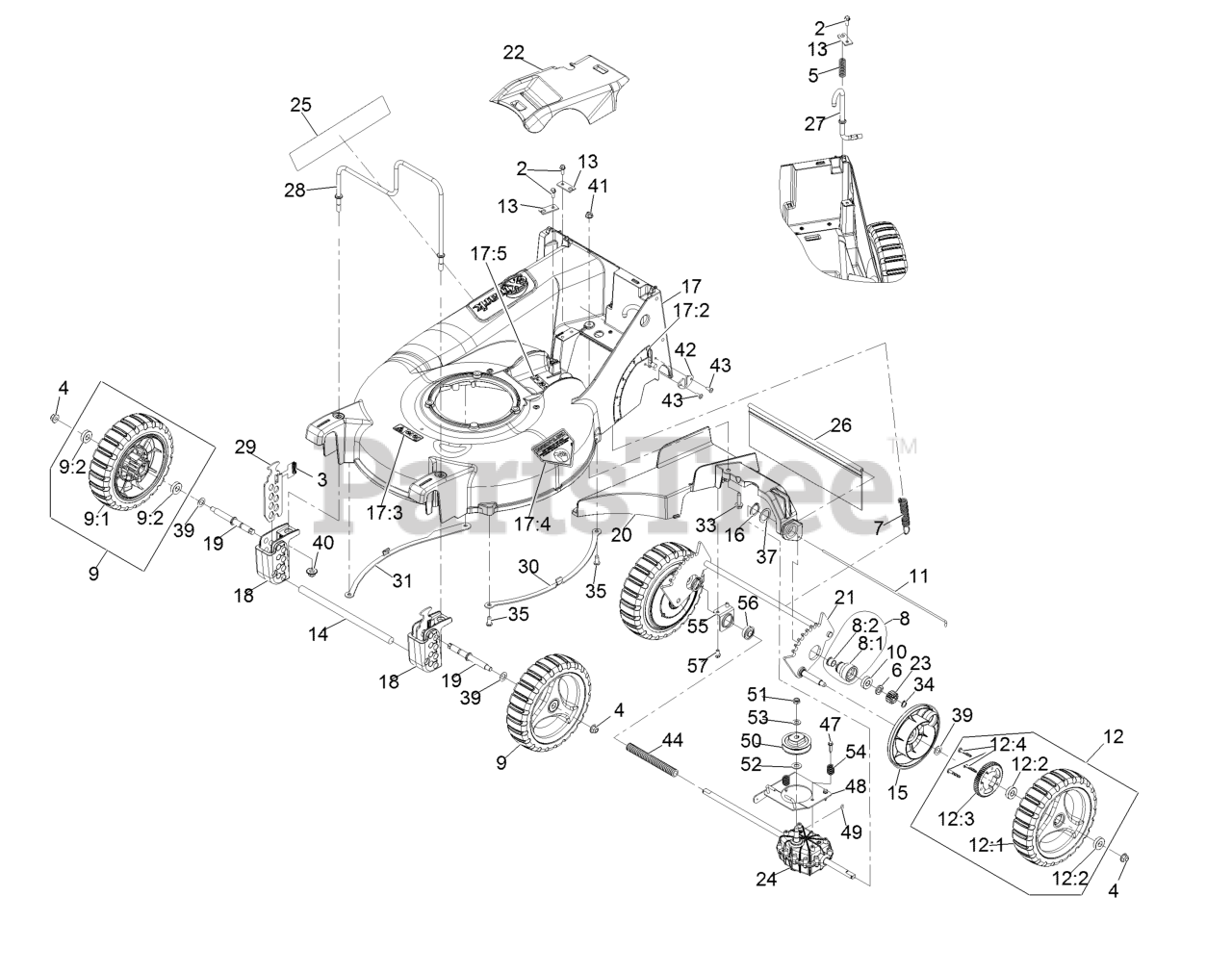

ECX160CHN21000 - Exmark 21" X-Series Walk-Behind Mower, Honda GXV160 (SN: 402082300 - 404314158) (2018) Deck and Wheel Assembly Parts Diagram

21" X-Series Walk-Behind Mower, Honda GXV160

Deck and Wheel Assembly Parts Diagram

  • Title

2

Exmark 32144-85

Screw-HWH 1/4-20 X .62

$1.99

$

In Stock, Qty 20+

0

3

Exmark 109-7258

Spring-Compression

$2.99

$

In Stock, Qty 15

0

4

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

5

Exmark 109-7694

Spring-Compression

$6.99

$

In Stock, only 2 left!

0

6

Exmark 108-5059

Spacer-Bushing

$7.99

$

In Stock, only 4 left!

0

7

Exmark 109-7692

Spring-Extension

$6.49

$

In Stock, only 3 left!

0

8

Exmark 116-6172

Housing ASM

$17.99

$

In Stock, Qty 11

0

8:1

Exmark 116-6171

Housing-Bearing

$17.99

$

In Stock, Qty 5

0

8:2

Exmark 116-4279

Bearing-Flange

$5.49

$

In Stock, Qty 5

0

9

Exmark 126-7347

Wheel ASM, 9" W/Bearings

$86.99

$

In Stock, Qty 5

0

9:1

Exmark 126-7345

Wheel ASM, 9"

$68.99

$

In Stock, only 2 left!

0

9:2

Exmark 133-2603

Bearing-Ball

$26.99

$

In Stock, Qty 20+

0

10

Exmark 133-2603

Bearing-Ball

$26.99

$

In Stock, Qty 20+

0

11

Exmark 109-8025

Rod,Shield

$11.99

$

In Stock, only 1 left!

0

12

Exmark 126-7758

Wheel ASM, 9 W/Gear

$90.99

$

In Stock, Qty 8

0

12:1

Exmark 126-7345

Wheel ASM, 9"

$68.99

$

In Stock, only 2 left!

0

12:2

Exmark 133-2603

Bearing-Ball

$26.99

$

In Stock, Qty 20+

0

12:3

Exmark 133-2625

Gear-Wheel, 52T

$18.99

$

In Stock, only 2 left!

0

12:4

Exmark 130-6426

Stud-Drive

$1.49

$

In Stock, Qty 10

0

13

Exmark 109-8441

Bracket,Mount

$5.99

$

In Stock, only 4 left!

0

14

Exmark 109-8454

Rod,Bumper

$17.99

$

In Stock, only 1 left!

0

15

Exmark 126-8259

Cover,Gear

$5.99

$

In Stock, only 4 left!

0

16

Exmark 32151-36

Ring-Retaining

$4.99

$

In Stock, only 4 left!

0

17

Exmark 116-2006

Deck W/Decals
(Superseded to 142-8690)

$351.99

$

Usually ships in 3-6 days

0

17:2

Exmark 116-1922

Decal-Height Of Cut

$7.49

$

In Stock, Qty 7

0

17:3

Exmark 130-9670

Decal-Warning, Blade

$2.99

$

In Stock, Qty 13

0

17:4

Exmark 94-8072

Decal-Danger

$6.49

$

In Stock, Qty 12

0

17:5

Exmark 119-0217

Decal-Danger

$5.49

$

Usually ships in 3-6 days

0

18

Exmark 109-9302

Block,Front Quadrant

$24.99

$

In Stock, only 2 left!

0

19

Exmark 116-0994

Axle-Wheel

$10.99

$

In Stock, only 3 left!

0

20

Exmark 116-9646-01

Bracket-Transmission And Chute

$54.99

$

In Stock, only 1 left!

0

21

Exmark 109-9312

Wld,Rear Axle P21

$115.99

$

In Stock, only 3 left!

0

22

Exmark 109-9324

Cover,Belt

$16.99

$

In Stock, only 2 left!

0

23

Exmark 131-5399

Gear-Pinion, 15T

$5.49

$

In Stock, Qty 20+

0

24

Exmark 116-9906

Transmission-HD, 4.5/1

$172.99

$

In Stock, only 2 left!

0

25

Exmark 126-6886

Decal-Comm 21 X-Series

$8.99

$

Usually ships in 3-6 days

0

26

Exmark 116-0252

Shield-Trailing P21

$31.99

$

In Stock, only 3 left!

0

27

Exmark 116-0329

Rod-Height Adj P21

$8.99

$

In Stock, only 3 left!

0

28

Exmark 116-0522

Guard,Engine

$36.99

$

In Stock, only 1 left!

0

29

Exmark 109-9292

Plate, Front Height

$16.99

$

In Stock, only 2 left!

0

30

Exmark 116-0995-03

Skid,LH

$44.99

$

In Stock, only 2 left!

0

31

Exmark 116-0996-03

Skid,RH

$44.99

$

In Stock, only 2 left!

0

33

Exmark 32144-49

Screw-HWH 5/16-18 1 1/4 Tf

$5.49

$

In Stock, only 1 left!

0

34

Exmark 32151-61

Ring-Retaining

$2.99

$

In Stock, Qty 20+

0

35

Exmark 613381

Screw-Button Head 5/16-18 X .725 Tf

$5.49

$

In Stock, only 1 left!

0

37

Exmark 74-1810

Washer

$0.99

$

In Stock, Qty 7

0

39

Exmark 36-4780

Washer

$7.99

$

In Stock, Qty 7

0

40

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

41

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

42

Exmark 116-2221

Plate,Wear

$7.49

$

In Stock, only 3 left!

0

43

Exmark 114439

Rivet

$1.49

$

In Stock, Qty 20+

0

44

Exmark 126-2335

Cover-Shaft-Drive

$5.99

$

Usually ships in 3-6 days

0

47

Exmark 27-0220

Screw-Special

$7.99

$

In Stock, only 4 left!

0

48

Exmark 116-3539-03

Transmission Plate ASM

$54.99

$

Usually ships in 3-6 days

0

49

Exmark 3257-1

Key-Woodruff 1/8 X 1/2

$2.99

$

In Stock, Qty 14

0

50

Exmark 39-6740

Pulley

$54.99

$

Usually ships in 3-6 days

0

51

Exmark 3296-5

Nut-Nyloc 3/8-24 Thin

$3.49

$

In Stock, Qty 8

0

52

Exmark 36-4792

Washer-Thrust

$1.49

$

In Stock, Qty 16

0

53

Exmark 3256-45

Washer-Flat

$0.99

$

In Stock, only 3 left!

0

54

Exmark 116-1438

Spring,Compression

$2.99

$

In Stock, only 2 left!

0

55

Exmark 120-7008

Mount-Bearing
(Superseded to 138-3233)

$5.49

$

In Stock, only 3 left!

0

56

Exmark 104-8699

Bearing-Ball

$4.99

$

In Stock, Qty 18

0

57

Exmark 9266714

Screw-HWH 1/4-20 X .50

$1.49

$

In Stock, Qty 5

0
