ECV980-3017 - Kohler Command PRO EFI Engine, Made for Exmark, 38hp 05 Ignition/Charging Parts Diagram

Command PRO EFI Engine, Made for Exmark, 38hp

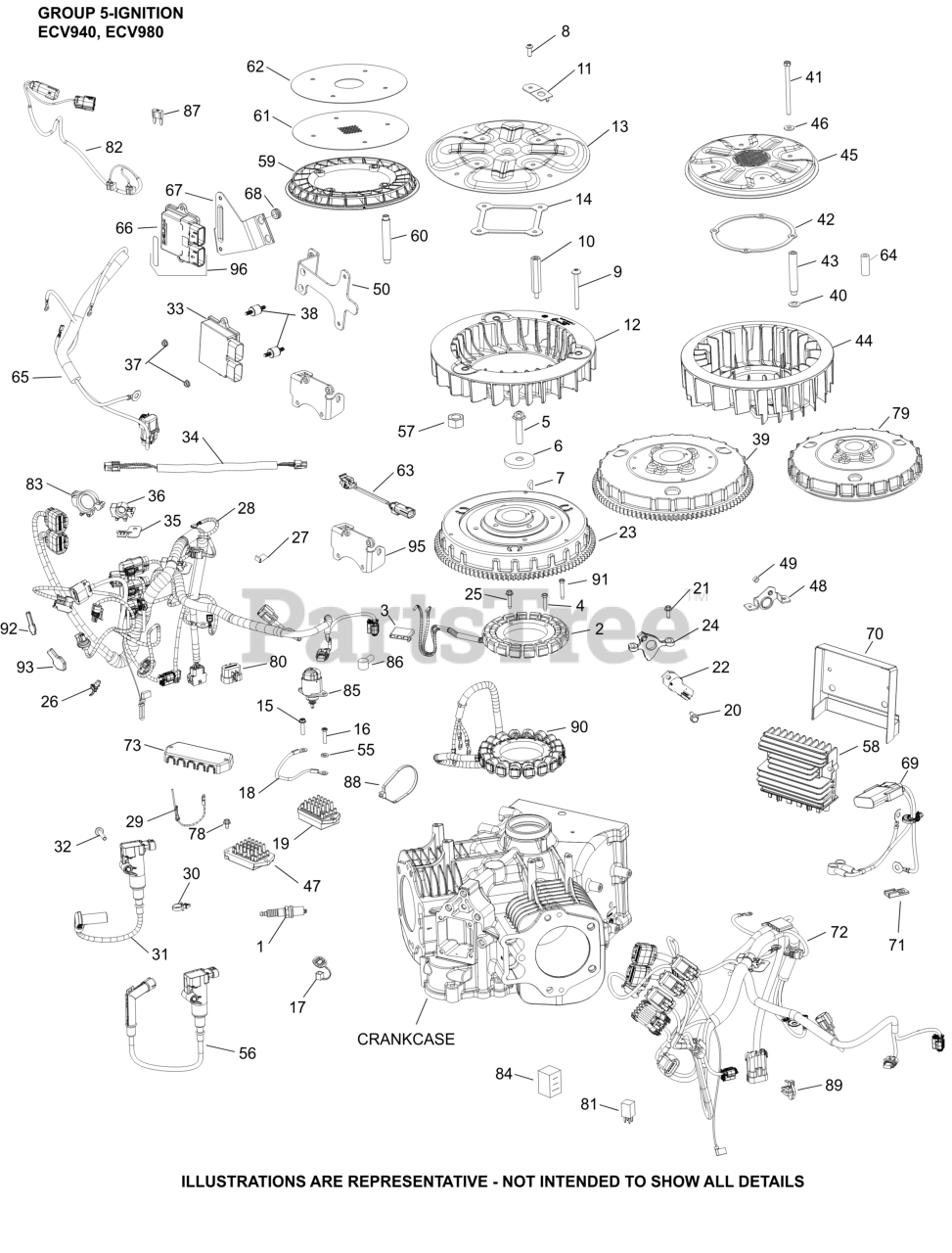

05 Ignition/Charging Parts Diagram

  • Title

1

Kohler 62 132 04-S

PLUG, SPARK

$13.99

$

Usually ships in 2-5 days

0

2

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 8

0

3

Kohler 25 155 41-S

CONNECTOR

$24.99

$

In Stock, only 1 left!

0

4

Kohler 25 086 402-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

5

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45-USE 25 086 361-S
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

6

Kohler 62 468 01-S

WASHER, FLAT 13/32"

$5.49

$

Usually ships in 2-5 days

0

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

15

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, only 2 left!

0

21

Kohler 25 086 398-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

22

Kohler 25 418 01-S

SENSOR, SPEED

$37.99

$

In Stock, only 1 left!

0

25

Kohler 25 086 473-S

SCREW, THREAD FORMING

$2.49

$

In Stock, Qty 20+

0

27

Kohler 62 154 09-S

CLIP, BLOWER HOUSING

$2.49

$

Usually ships in 2-5 days

0

30

Kohler 62 154 05-S

CLIP

$11.99

$

Usually ships in 2-5 days

0

31

Kohler 25 519 02-S

COIL, IGNITION - EFI

$167.99

$

In Stock, only 1 left!

0

37

Kohler M-541050-S

NUT, FLG M5X.8

$2.99

$

In Stock, Qty 10

0

38

Kohler 25 384 02-S

ISOLATOR, VIBRATION STUD

$12.99

$

Usually ships in 2-5 days

0

39

Kohler 62 025 17-S

FLYWHEEL, ASSEMBLY

$388.99

$

Usually ships in 2-5 days

0

40

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

Usually ships in 2-5 days

0

41

Kohler 25 086 647-S

SCREW, HEX HEAD

$3.49

$

In Stock, Qty 16

0

42

Kohler 25 141 08-S

RING, SUPPORT

$5.49

$

Usually ships in 2-5 days

0

43

Kohler 62 112 13-S

SPACER, GRASS SCREEN

$4.49

$

In Stock, only 4 left!

0

44

Kohler 62 157 04-S

FAN-(#6215706S)
(Superseded to 62 157 06-S)

$14.99

$

In Stock, only 1 left!

0

45

Kohler 62 162 18-S

SCREEN, GRASS

$46.99

$

Usually ships in 2-5 days

0

46

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

Usually ships in 2-5 days

0

47

Kohler 25 403 39-S

REGULATOR, RECT (20-30AMP, FW W/OVP)
(Superseded to 25 403 48-S)

$68.99

$

In Stock, Qty 20+

0

48

Kohler 62 126 74-S

BRACKET, CRANK SENSOR

$2.99

$

Usually ships in 2-5 days

0

49

Kohler 25 112 27-S

SPACER

$2.49

$

Usually ships in 2-5 days

0

66

Kohler 62 584 51-S

MODULE, ECU MT05.3-USE 25 584 29-S
(Superseded to 25 584 33-S)

$289.99

$

Usually ships in 2-5 days

0

72

Kohler 62 176 41-S

HARNESS, WIRING (8-BAY, EFI-ETB)

$330.99

$

In Stock, only 1 left!

0

78

Kohler 25 086 693-S

SCREW, THREAD FORMING

$2.49

$

Usually ships in 2-5 days

0

80

Kohler 25 173 57-S

CAP, DIAGNOSTIC (8-WAY)

$2.99

$

Usually ships in 2-5 days

0

88

Kohler 25 454 07-S

TIE

$2.49

$

Usually ships in 2-5 days

0

89

Kohler 25 454 14-S

TIE, WIRE EDGE FIXED

$1.99

$

Usually ships in 2-5 days

0
