ECV940-2013 - Kohler Command PRO EFI Engine, Made for Scag, 33hp 08 Fuel System Parts Diagram

Command PRO EFI Engine, Made for Scag, 33hp

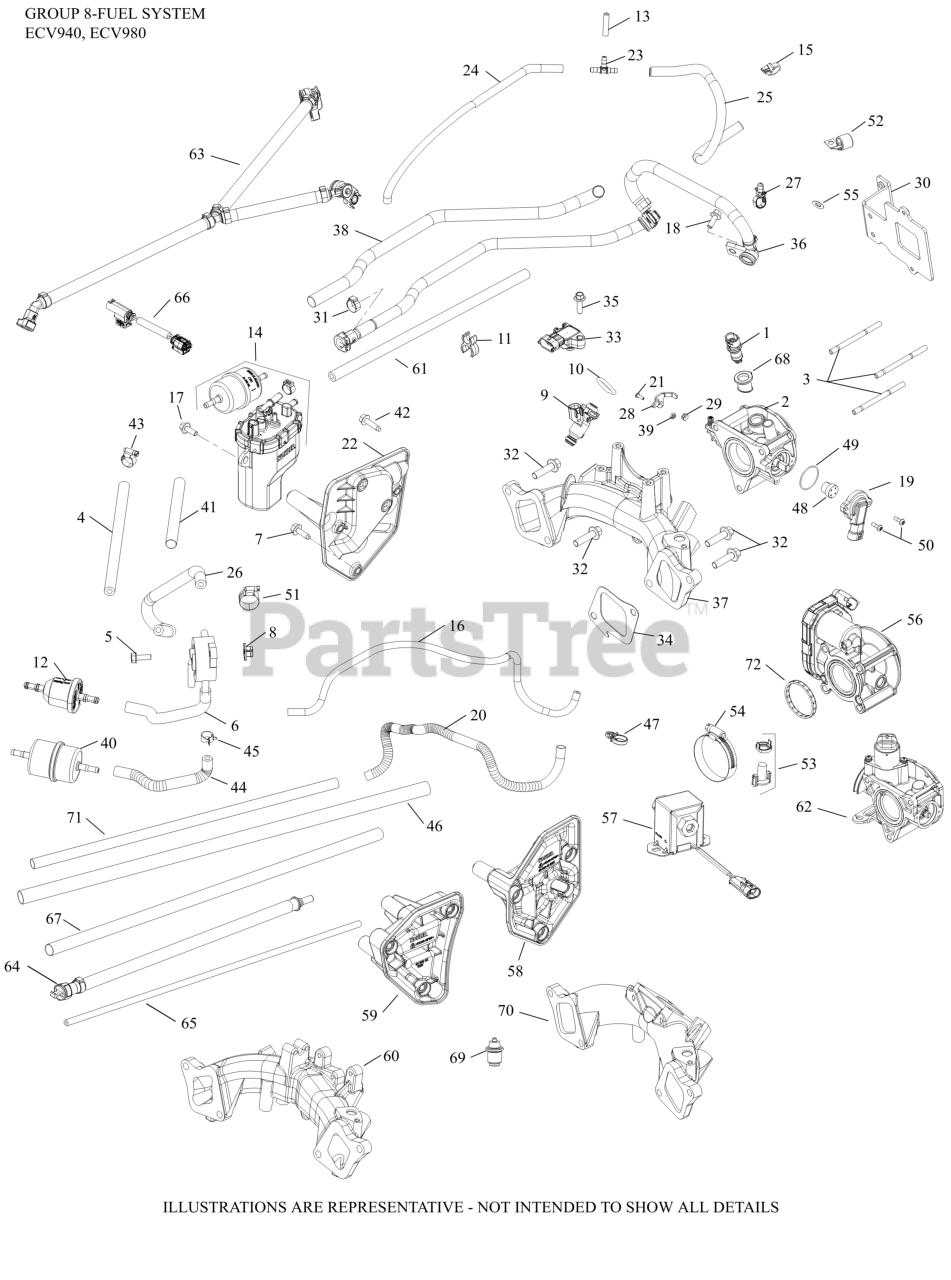

08 Fuel System Parts Diagram

  • Title

1

Kohler 25 418 03-S

SENSOR, AIR TEMPERATURE

$16.99

$

In Stock, only 1 left!

0

2

Kohler 25 583 10-S

KIT, THROTTLE BODY ASSEMBLY

$274.99

$

Usually ships in 2-5 days

0

3

Kohler M-629085-S

STUD,M6X1.0X84

$3.99

$

Usually ships in 2-5 days

0

4

Kohler 25 353 27-S

LINE, FLEXIBLE FUEL

$3.49

$

In Stock, only 1 left!

0

5

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

6

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 18

0

7

Kohler 25 086 396-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 1 left!

0

8

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, Qty 7

0

9

Kohler 25 331 01-S

INJECTOR, FUEL

$80.99

$

Usually ships in 2-5 days

0

10

Kohler 25 755 41-S

KIT, FUEL INJECTOR O-RING

$32.99

$

In Stock, only 2 left!

0

11

Kohler 62 018 06-S

RETAINER, CLIP

$2.99

$

Usually ships in 2-5 days

0

13

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 25 755 73-S

KIT,FP MODULE (ECH/ECV 440,630,940)

$353.99

$

In Stock, Qty 8

0

15

Kohler 62 154 05-S

CLIP

$11.99

$

Usually ships in 2-5 days

0

16

Kohler 25 326 08-S

HOSE, EVAPORATIVE 20"- (#24326143S)
(Superseded to 24 326 143-S)

$5.49

$

In Stock, only 1 left!

0

17

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, Qty 6

0

18

Kohler M-651016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 3 left!

0

19

Kohler 25 418 08-S

SENSOR, THROTTLE POSITION

$110.99

$

In Stock, only 3 left!

0

20

Kohler 25 431 22-S

SLEEVE, ANTI-ABRASION

$5.49

$

Usually ships in 2-5 days

0

22

Kohler 62 063 22-S

BAFFLE, V/S FUEL PUMP MODULE

$35.99

$

Usually ships in 2-5 days

0

23

Kohler 25 155 56-S

TEE CONNECTOR

$2.99

$

Usually ships in 2-5 days

0

24

Kohler 62 326 33-S

HOSE, EVAPORATIVE

$3.49

$

In Stock, only 1 left!

0

25

Kohler 62 431 03-S

SLEEVE, ANTI ABRASION

$3.49

$

Usually ships in 2-5 days

0

26

Kohler 62 111 12-S

HOSE, FUEL LINE

$2.99

$

Usually ships in 2-5 days

0

30

Kohler 62 126 64-S

BRACKET, ECU MOUNTING-USE 62 126 76-S
(Superseded to 62 126 76-S)

$24.99

$

Usually ships in 2-5 days

0

31

Kohler 24 237 17-S

CLAMP, HOSE

$2.49

$

In Stock, only 1 left!

0

31

Kohler 25 237 28-S

CLAMP, OETIKER

$2.99

$

Usually ships in 2-5 days

0

32

Kohler M-851030-S

SCREW, FLG M8X1.25X30

$2.49

$

Usually ships in 2-5 days

0

33

Kohler 25 418 09-S

SENSOR, MAP

$69.99

$

Usually ships in 2-5 days

0

34

Kohler 62 041 13-S

GASKET, INTAKE MANIFOLD

$14.99

$

Usually ships in 2-5 days

0

36

Kohler 62 399 10-S

FUEL HOSE ASSY ECV940 THRU ECV980
(Superseded to 62 399 11-S)

$151.99

$

Usually ships in 2-5 days

0

37

Kohler 62 164 23-S

MANIFOLD, INTAKE EFI - VERTICAL

$281.99

$

Usually ships in 2-5 days

0

38

Kohler 25 431 32-S

SLEEVE, ANTI ABRASION

$13.99

$

Usually ships in 2-5 days

0

40

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

41

Kohler 20 431 01-S

SLEEVE, ANTI ABRASION -USE 25 431 12-S
(Superseded to 20 431 02-S)

$10.99

$

In Stock, only 1 left!

0

43

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

44

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 4 left!

0

45

Kohler 25 237 37-S

SPRING CLAMP, HOSE

$2.49

$

In Stock, Qty 11

0

46

Kohler 25 431 35-S

SLEEVE, HEAT REFLECTIVE

$30.99

$

Usually ships in 2-5 days

0

51

Kohler 25 237 12-S

CLAMP, HOSE-USE 25 237 32-S
(Superseded to 25 237 32-S)

$6.49

$

Usually ships in 2-5 days

0

54

Kohler 25 237 07-S

CLAMP, HOSE-USE 25 237 21-S
(Superseded to 25 237 21-S)

$7.99

$

In Stock, only 1 left!

0
