ECV880-3031 - Kohler Command PRO EFI Engine, Made for Excel, 33hp 05 Ignition/Charging Parts Diagram

Command PRO EFI Engine, Made for Excel, 33hp

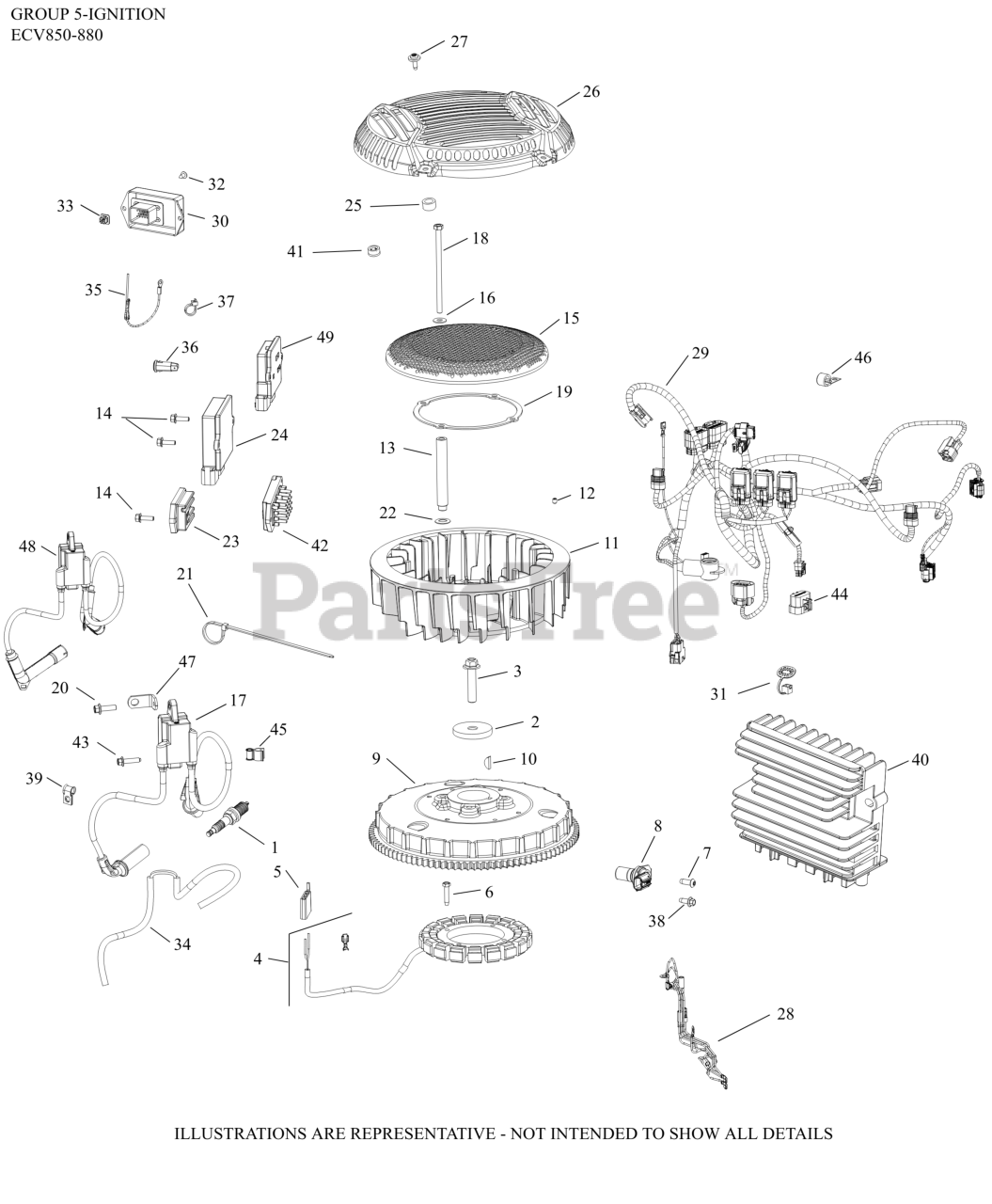

05 Ignition/Charging Parts Diagram

  • Title

1

Kohler 25 132 25-S

PLUG, SPARK

$11.99

$

In Stock, Qty 20+

0

2

Kohler 62 468 01-S

WASHER, FLAT 13/32"

$5.49

$

Usually ships in 2-5 days

0

3

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45-USE 25 086 361-S
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

4

Kohler 28 085 02-S

KIT, 25 AMP STATOR ASSY.

$194.99

$

In Stock, only 1 left!

0

5

Kohler 25 155 41-S

CONNECTOR

$24.99

$

In Stock, only 1 left!

0

6

Kohler 25 086 412-S

SCREW, THREAD FORMING

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 25 418 01-S

SENSOR, SPEED

$37.99

$

In Stock, only 1 left!

0

9

Kohler 62 025 17-S

FLYWHEEL, ASSEMBLY

$388.99

$

Usually ships in 2-5 days

0

10

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

11

Kohler 62 157 04-S

FAN
(Superseded to 62 157 06-S)

$14.99

$

In Stock, only 1 left!

0

12

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 19 112 02-S

SPACER GRASS SCREEN

$5.49

$

Usually ships in 2-5 days

0

14

Kohler M-551016-S

SCREW, HVY FLG M5X.8X16

$2.49

$

In Stock, only 2 left!

0

15

Kohler 24 162 41-S

SCREEN, GRASS

$24.99

$

In Stock, only 1 left!

0

16

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 19 519 01-S

COIL, IGNITION DUAL OUTPUT

$106.99

$

In Stock, Qty 6

0

18

Kohler 25 086 599-S

SCREW, HEX HEAD

$3.99

$

Usually ships in 2-5 days

0

19

Kohler 25 141 08-S

RING, SUPPORT

$5.49

$

Usually ships in 2-5 days

0

20

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, Qty 6

0

22

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

Usually ships in 2-5 days

0

24

Kohler 19 584 39-S

MODULE, ECU
(Superseded to 19 584 48-S)

$259.99

$

Usually ships in 2-5 days

0

26

Kohler 25 314 04-S

GUARD, GRASS SCREEN (METAL)

$27.99

$

In Stock, only 1 left!

0

27

Kohler 25 086 160-S

SCREW, SEMS

$2.99

$

In Stock, Qty 7

0

29

Kohler 19 176 11-S

HARNESS, WIRING ASSEMBLY - EFI

$274.99

$

Usually ships in 2-5 days

0

31

Kohler 24 173 08-S

CAP, CONNECTOR

$7.49

$

Usually ships in 2-5 days

0

38

Kohler 25 086 404-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

41

Kohler 25 112 30-S

SPACER

$4.49

$

In Stock, only 1 left!

0

42

Kohler 25 403 39-S

REGULATOR, RECT (20-30AMP, FW W/OVP)
(Superseded to 25 403 48-S)

$68.99

$

In Stock, Qty 20+

0

NI

Kohler 48 154 01-S

CLIP, CABLE (KM)

$2.49

$

In Stock, only 1 left!

0
