ECV749-3073 - Kohler Command PRO EFI Engine, Made for Bad Boy, 26.5hp, 19.8kW 08 Fuel System Parts Diagram

Command PRO EFI Engine, Made for Bad Boy, 26.5hp, 19.8kW

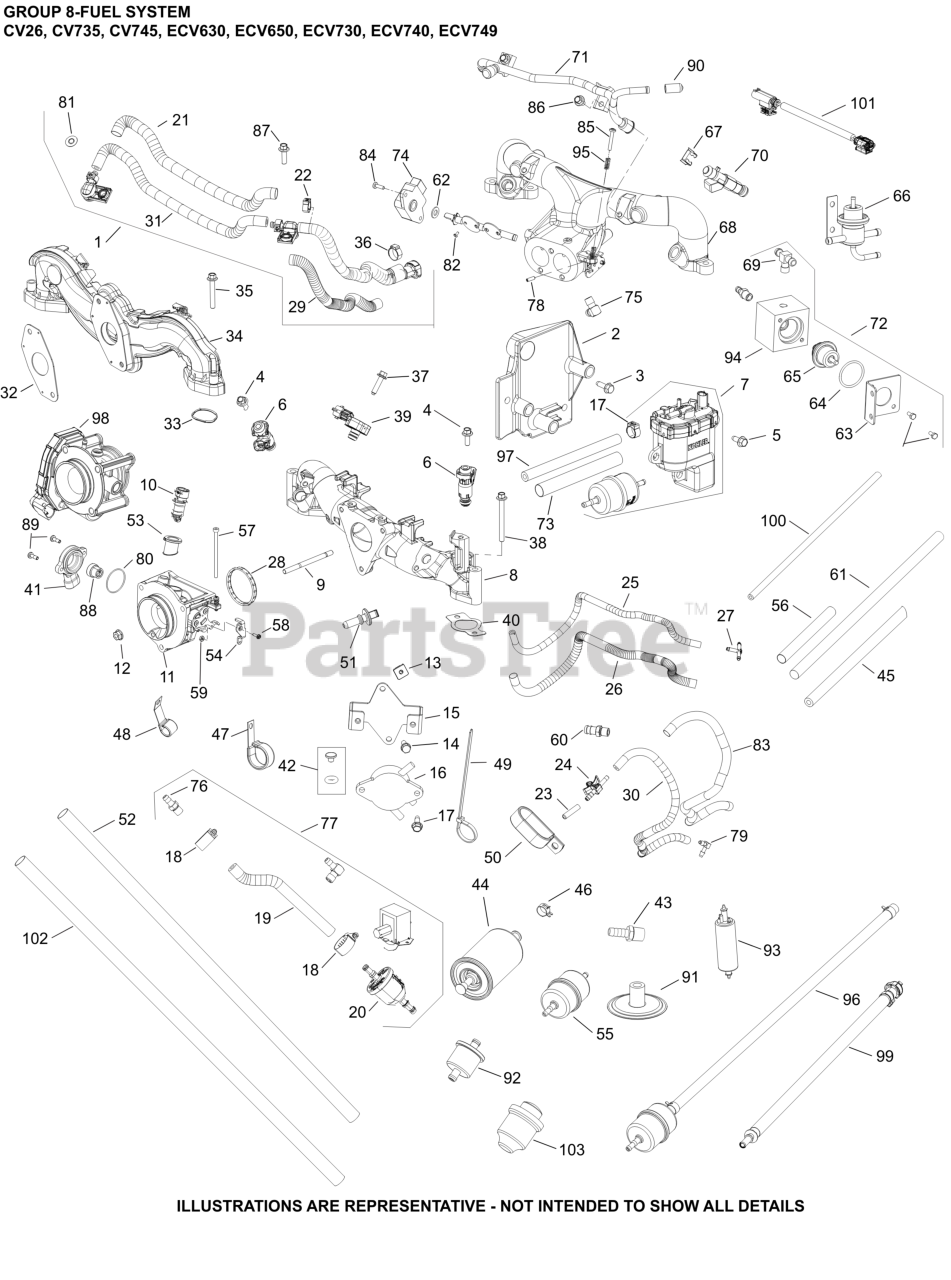

08 Fuel System Parts Diagram

  • Title

1

Kohler 24 399 36-S

FUEL HOSE ASSY(ECV,FCV,EZT,EKT,PCH,PCV)

$137.99

$

Usually ships in 2-5 days

0

2

Kohler 24 063 106-S

KIT,BAFFLE, FUEL MODULE

$25.99

$

Usually ships in 2-5 days

0

3

Kohler 25 086 413-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 3 left!

0

5

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, Qty 6

0

6

Kohler 25 331 01-S

INJECTOR, FUEL

$80.99

$

In Stock, only 2 left!

0

7

Kohler 25 393 19-S

KIT, FUEL PUMP MODULE

$359.99

$

In Stock, only 4 left!

0

8

Kohler 24 164 185-S

KIT, MANIFOLD

$100.99

$

Usually ships in 2-5 days

0

9

Kohler M-629085-S

STUD,M6X1.0X84

$3.99

$

Usually ships in 2-5 days

0

11

Kohler 25 583 13-S

BODY, THROTTLE ASM (30)

$402.99

$

Usually ships in 2-5 days

0

13

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, Qty 7

0

14

Kohler 25 086 784-S

SCREW, HEX HEAD

$2.49

$

In Stock, Qty 20+

0

15

Kohler 24 126 183-S

BRACKET, FUEL PUMP MOUNTING

$7.99

$

In Stock, only 1 left!

0

16

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 16

0

17

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 13

0

19

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 2 left!

0

22

Kohler 25 237 28-S

CLAMP, OETIKER

$2.99

$

Usually ships in 2-5 days

0

23

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

Usually ships in 2-5 days

0

24

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 3 left!

0

26

Kohler 25 431 22-S

SLEEVE, ANTI-ABRASION

$5.49

$

Usually ships in 2-5 days

0

27

Kohler 25 155 56-S

TEE CONNECTOR

$2.99

$

Usually ships in 2-5 days

0

28

Kohler 25 153 12-S

O-RING, THROTTLE BODY

$13.99

$

Usually ships in 2-5 days

0

30

Kohler 24 326 119-S

HOSE, EVAPORATIVE (15.0)

$3.99

$

In Stock, only 1 left!

0

35

Kohler M-651040-S

SCREW, FLG M6X1.0X40

$2.49

$

In Stock, Qty 12

0

36

Kohler 24 237 17-S

CLAMP, HOSE

$2.49

$

In Stock, only 1 left!

0

38

Kohler M-651060-S

SCREW, FLG M6X1.0X60

$3.99

$

Usually ships in 2-5 days

0

39

Kohler 25 418 13-S

SENSOR, T-MAP

$77.99

$

In Stock, only 1 left!

0

40

Kohler 24 041 79-S

KIT, INTAKE MANIFOLD GASKET

$2.99

$

In Stock, Qty 7

0

41

Kohler 25 418 12-S

SENSOR, THROTTLE POSITION

$86.99

$

In Stock, only 1 left!

0

42

Kohler 25 755 41-S

KIT, FUEL INJECTOR O-RING

$32.99

$

In Stock, only 2 left!

0

46

Kohler 25 237 37-S

SPRING CLAMP, HOSE

$2.49

$

In Stock, Qty 11

0

49

Kohler 25 454 05-S

TIE

$2.49

$

In Stock, only 2 left!

0

52

Kohler 25 431 35-S

SLEEVE, HEAT REFLECTIVE

$30.99

$

Usually ships in 2-5 days

0

55

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

80

Kohler 25 153 17-S

O-RING, TPS SENSOR

$2.49

$

Usually ships in 2-5 days

0

81

Kohler 25 154 31-S

CLIP, RETAINER

$2.49

$

Usually ships in 2-5 days

0

87

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, Qty 6

0

88

Kohler 25 152 08-S

MAGNET ASSEMBLY, TPS

$16.99

$

In Stock, only 2 left!

0

89

Kohler 25 086 600-S

SCREW, M4

$2.49

$

Usually ships in 2-5 days

0

97

Kohler 25 111 189-S

HOSE, FUEL LOW-PERMEATION

$18.99

$

Usually ships in 2-5 days

0
