ECV749-3071 - Kohler Command PRO EFI Engine, Made for Toro, 26.5hp, 19.8kW 08 Fuel System Parts Diagram

Command PRO EFI Engine, Made for Toro, 26.5hp, 19.8kW

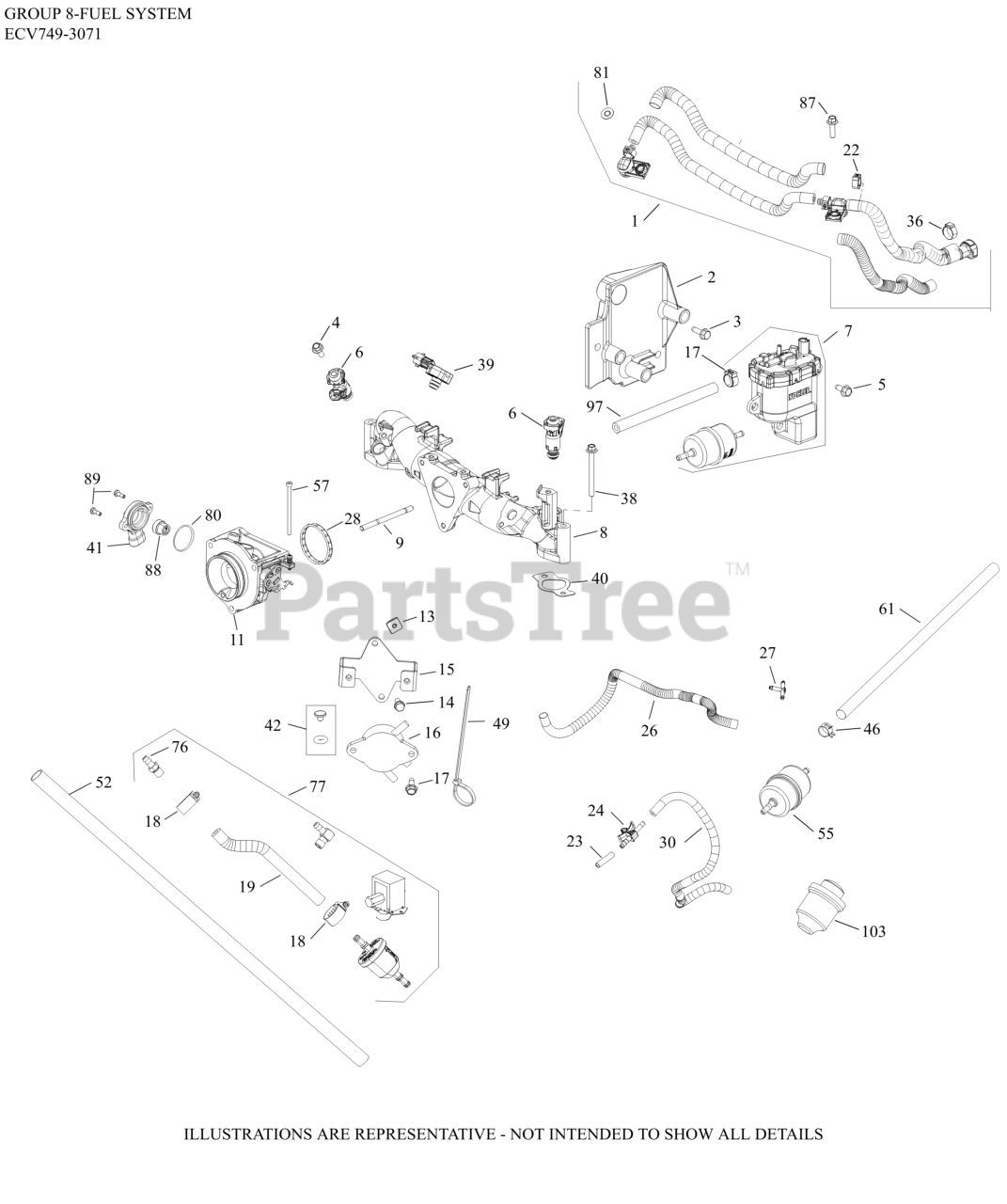

08 Fuel System Parts Diagram

  • Title

1

Kohler 24 399 36-S

FUEL HOSE ASSY(ECV,FCV,EZT,EKT,PCH,PCV)

$137.99

$

Usually ships in 2-5 days

0

2

Kohler 24 063 106-S

KIT,BAFFLE, FUEL MODULE

$24.99

$

Usually ships in 2-5 days

0

3

Kohler 25 086 413-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 3 left!

0

5

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 2 left!

0

6

Kohler 25 331 01-S

INJECTOR, FUEL

$80.99

$

In Stock, only 2 left!

0

7

Kohler 25 393 19-S

FUEL PUMP

Note: After S/N 4916300001

$358.99

$

In Stock, Qty 9

0

7

Kohler 25 755 73-S

KIT,FP MODULE (ECH/ECV 440,630,940)

Note: Before S/N 4916300011

$352.99

$

In Stock, Qty 8

0

8

Kohler 24 164 185-S

KIT, MANIFOLD

$100.99

$

Usually ships in 2-5 days

0

9

Kohler M-629085-S

STUD,M6X1.0X84

$3.99

$

Usually ships in 2-5 days

0

11

Kohler 25 583 13-S

BODY, THROTTLE ASM (30)

$401.99

$

Usually ships in 2-5 days

0

13

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, Qty 13

0

14

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

15

Kohler 24 126 183-S

BRACKET, FUEL PUMP MOUNTING

$7.99

$

In Stock, only 1 left!

0

16

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 9

0

17

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 15

0

18

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

19

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 3 left!

0

22

Kohler 25 237 28-S

CLAMP, OETIKER

$2.99

$

Usually ships in 2-5 days

0

23

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

In Stock, only 1 left!

0

24

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 3 left!

0

26

Kohler 25 431 22-S

SLEEVE, ANTI-ABRASION

$5.49

$

Usually ships in 2-5 days

0

27

Kohler 25 155 56-S

TEE CONNECTOR

$2.99

$

Usually ships in 2-5 days

0

28

Kohler 25 153 12-S

O-RING, THROTTLE BODY

$13.99

$

Usually ships in 2-5 days

0

30

Kohler 24 326 119-S

HOSE, EVAPORATIVE (15.0)

$3.99

$

In Stock, only 1 left!

0

36

Kohler 24 237 17-S

CLAMP, HOSE

$2.49

$

In Stock, only 1 left!

0

38

Kohler M-651060-S

SCREW, FLG M6X1.0X60

$3.99

$

Usually ships in 2-5 days

0

39

Kohler 25 418 13-S

SENSOR, T-MAP

$77.99

$

In Stock, only 1 left!

0

40

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD-USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 9

0

41

Kohler 25 418 12-S

SENSOR, THROTTLE POSITION

$86.99

$

Usually ships in 2-5 days

0

42

Kohler 25 755 41-S

KIT, FUEL INJECTOR O-RING

$32.99

$

In Stock, only 2 left!

0

46

Kohler 25 237 37-S

SPRING CLAMP, HOSE

$2.49

$

In Stock, Qty 11

0

49

Kohler 25 454 05-S

TIE

$2.49

$

In Stock, only 2 left!

0

52

Kohler 25 431 35-S

SLEEVE, HEAT REFLECTIVE

$30.99

$

Usually ships in 2-5 days

0

55

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

57

Kohler 25 086 602-S

SCREW, HEX SOCKET HEAD CAP

$2.49

$

Usually ships in 2-5 days

0

61

Kohler 20 431 01-S

SLEEVE, ANTI ABRASION -USE 25 431 12-S
(Superseded to 20 431 02-S)

$10.99

$

In Stock, only 1 left!

0

80

Kohler 25 153 17-S

O-RING, TPS SENSOR

$2.49

$

Usually ships in 2-5 days

0

81

Kohler 25 154 31-S

CLIP, RETAINER

$2.49

$

Usually ships in 2-5 days

0

87

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, Qty 6

0

88

Kohler 25 152 08-S

MAGNET ASSEMBLY, TPS

$16.99

$

In Stock, only 2 left!

0

89

Kohler 25 086 600-S

SCREW, M4

$2.49

$

Usually ships in 2-5 days

0

97

Kohler 25 111 189-S

HOSE, FUEL LOW-PERMEATION

$18.99

$

Usually ships in 2-5 days

0

103

Kohler 25 755 24-S

KIT, AIR FILTER SENSOR

$96.99

$

Usually ships in 2-5 days

0
