ECV749-3071 - Kohler Command PRO EFI Engine, Made for Toro, 26.5hp, 19.8kW 05 Ignition/Charging Parts Diagram

Command PRO EFI Engine, Made for Toro, 26.5hp, 19.8kW

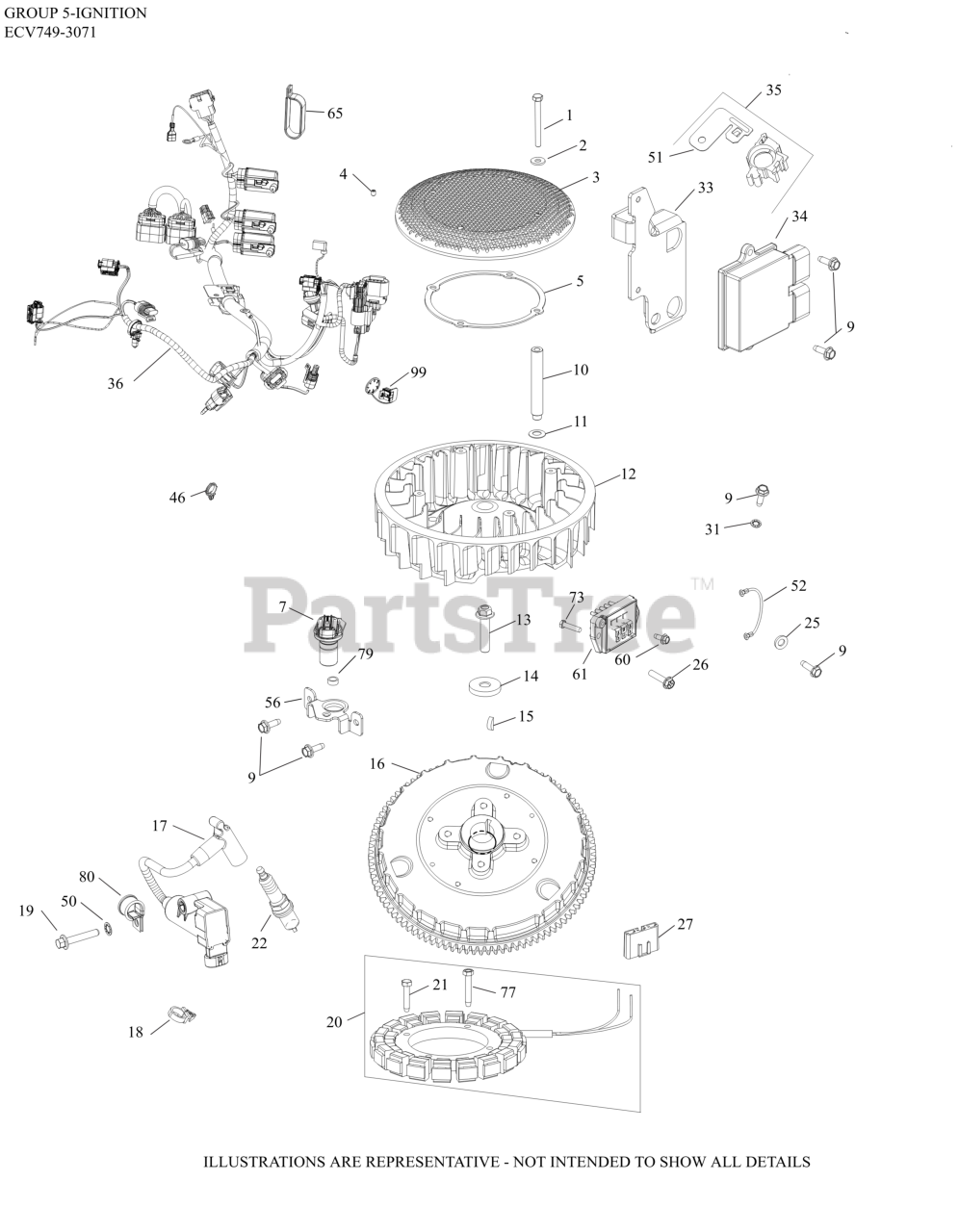

05 Ignition/Charging Parts Diagram

  • Title

1

Kohler M-603100-S

SCREW, CAP M6X1.0X99.5

$4.49

$

In Stock, only 4 left!

0

2

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

In Stock, only 3 left!

0

3

Kohler 24 162 41-S

SCREEN, GRASS

$24.99

$

In Stock, only 1 left!

0

4

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

5

Kohler 25 141 08-S

RING, SUPPORT

$5.49

$

Usually ships in 2-5 days

0

7

Kohler 25 418 01-S

SENSOR, SPEED

$37.99

$

In Stock, only 1 left!

0

9

Kohler 25 086 398-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

10

Kohler 24 112 14-S

SPACER

$18.99

$

Usually ships in 2-5 days

0

11

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 24 157 12-S

FAN

$22.99

$

In Stock, only 1 left!

0

13

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45-USE 25 086 361-S
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

14

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

15

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 7

0

16

Kohler 24 025 111-S

FLYWHEEL, ASSEMBLY

$

$

Not available

17

Kohler 25 519 02-S

COIL, IGNITION - EFI

$167.99

$

Usually ships in 2-5 days

0

18

Kohler 62 154 05-S

CLIP

$11.99

$

Usually ships in 2-5 days

0

19

Kohler M-640034-S

SCREW, FLG (BLACK) M6X1.0X34

$2.49

$

In Stock, Qty 18

0

20

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 15

0

21

Kohler 25 086 402-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

22

Kohler 25 132 14-S

SPARK PLUG, RFI

$14.99

$

Usually ships in 2-5 days

0

25

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

26

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, only 2 left!

0

27

Kohler 25 155 41-S

CONNECTOR

$24.99

$

In Stock, only 1 left!

0

31

Kohler X-22-9-S

WASHER, INT TOOTH LOCK #10

$3.99

$

In Stock, only 1 left!

0

33

Kohler 24 126 197-S

BRACKET, ECU

$8.49

$

Usually ships in 2-5 days

0

34

Kohler 24 584 197-S

MODULE, ECU
(Superseded to 24 584 213-S)

$261.99

$

Usually ships in 2-5 days

0

35

Kohler 25 154 21-S

KIT, MOUNTING CLIP
(Superseded to 25 237 35-S)

$2.49

$

Usually ships in 2-5 days

0

36

Kohler 24 176 269-S

HARNESS, WIRING ASSEMBLY

$313.99

$

In Stock, only 1 left!

0

46

Kohler 25 018 05-S

RETAINER, WIRE HARNESS
(Superseded to 25 154 27-S)

$2.49

$

Usually ships in 2-5 days

0

50

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

51

Kohler 25 154 20-S

CLIP USE 25 154 21-S
(Superseded to 25 154 21-S)

$8.49

$

Usually ships in 2-5 days

0

52

Kohler 24 518 43-S

LEAD

$2.99

$

Usually ships in 2-5 days

0

56

Kohler 25 126 18-S

BRACKET, SENSOR

$3.49

$

Usually ships in 2-5 days

0

60

Kohler 25 086 693-S

SCREW, THREAD FORMING

$2.49

$

Usually ships in 2-5 days

0

61

Kohler 25 403 39-S

REGULATOR, RECT (20-30AMP, FW W/OVP)
(Superseded to 25 403 48-S)

$68.99

$

In Stock, Qty 11

0

65

Kohler 25 237 45-S

CLAMP, INSULATED DOUBLE

$2.99

$

Usually ships in 2-5 days

0

79

Kohler 25 112 27-S

SPACER

$2.49

$

Usually ships in 2-5 days

0

80

Kohler 25 237 36-S

CLAMP

$2.99

$

Usually ships in 2-5 days

0

99

Kohler 25 173 53-S

CAP, CONNECTOR (4-WAY, BLACK)

$2.99

$

Usually ships in 2-5 days

0
