ECV749-3042 - Kohler Command PRO EFI Engine, Made for MTD, 26.5hp, 19.8kW Ignition/Charging Group 5-24-1557 ECV630-749 Parts Diagram

Command PRO EFI Engine, Made for MTD, 26.5hp, 19.8kW

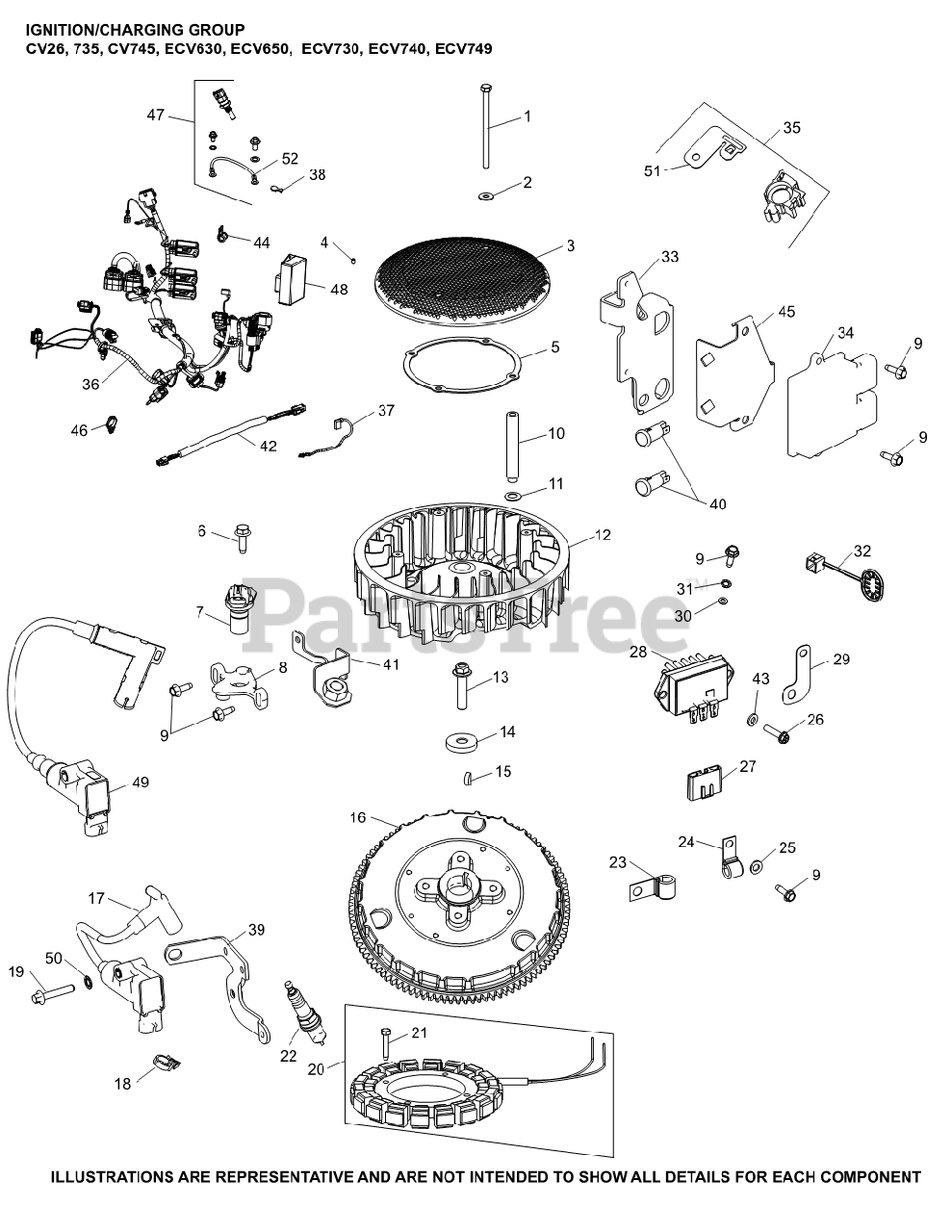

Ignition/Charging Group 5-24-1557 ECV630-749 Parts Diagram

  • Title

1

Kohler M-603100-S

SCREW, CAP M6X1.0X99.5

$4.49

$

In Stock, only 4 left!

0

2

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

In Stock, only 3 left!

0

3

Kohler 24 162 41-S

SCREEN, GRASS

$24.99

$

In Stock, only 1 left!

0

4

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

5

Kohler 24 141 06-S

RING, SUPPORT USE 25 141 08-S
(Superseded to 25 141 08-S)

$5.49

$

Usually ships in 2-5 days

0

7

Kohler 25 418 01-S

SENSOR, SPEED

$37.99

$

In Stock, only 1 left!

0

9

Kohler 25 086 398-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

10

Kohler 24 112 14-S

SPACER

$18.99

$

In Stock, only 1 left!

0

11

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

In Stock, only 3 left!

0

12

Kohler 24 157 12-S

FAN

$22.99

$

In Stock, only 1 left!

0

13

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

14

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

15

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 8

0

16

Kohler 24 025 111-S

FLYWHEEL, ASSEMBLY

$

$

Not available

17

Kohler 25 519 02-S

COIL, IGNITION - EFI

$167.99

$

Usually ships in 2-5 days

0

18

Kohler 62 154 05-S

CLIP

$11.99

$

Usually ships in 2-5 days

0

19

Kohler M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

In Stock, Qty 18

0

20

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 15

0

21

Kohler 25 086 402-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

22

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

26

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, only 2 left!

0

27

Kohler 25 155 41-S

CONNECTOR

$24.99

$

In Stock, only 1 left!

0

28

Kohler 25 403 32-S

REGULATOR, RECTIFIER (20-30AMP,FW W/O USE 25 403 39-S
(Superseded to 25 403 48-S)

$68.99

$

In Stock, Qty 11

0

30

Kohler X-25-79-S

WASHER, FLAT 3/16"

$3.99

$

In Stock, only 2 left!

0

31

Kohler X-22-9-S

WASHER, INT TOOTH LOCK #10

$3.99

$

In Stock, only 1 left!

0

32

Kohler 24 173 08-S

CAP, CONNECTOR

$7.49

$

Usually ships in 2-5 days

0

33

Kohler 24 126 197-S

BRACKET, ECU

$8.49

$

Usually ships in 2-5 days

0

34

Kohler 24 584 128-S

MODULE, ECU
(Superseded to 24 584 213-S)

$261.99

$

Usually ships in 2-5 days

0

35

Kohler 25 154 21-S

KIT, MOUNTING CLIP
(Superseded to 25 237 35-S)

$2.49

$

Usually ships in 2-5 days

0

36

Kohler 24 176 247-S

HARNESS, WIRING ASSEMBLY USE 24 176 258-S
(Superseded to 24 176 258-S)

$269.99

$

In Stock, only 1 left!

0

44

Kohler 25 237 36-S

CLAMP

$2.99

$

Usually ships in 2-5 days

0

51

Kohler 25 154 20-S

CLIP, MOUNTING BRACKET USE 25 154 21-S
(Superseded to 25 154 21-S)

$8.49

$

Usually ships in 2-5 days

0

2511227-S

Kohler 25 112 27-S

SPACER

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2512618-S

Kohler 25 126 18-S

BRACKET, SENSOR

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

X-22-11-S

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

2451843-S

Kohler 24 518 43-S

LEAD

Note: NOT ILLUSTRATED

$2.99

$

Usually ships in 2-5 days

0
