ECV650-3011 - Kohler Command PRO EFI Engine, Made for Exmark, 21hp, 15.7kW Lubrication Group 3-24-869 ECV630-749 Parts Diagram

Command PRO EFI Engine, Made for Exmark, 21hp, 15.7kW

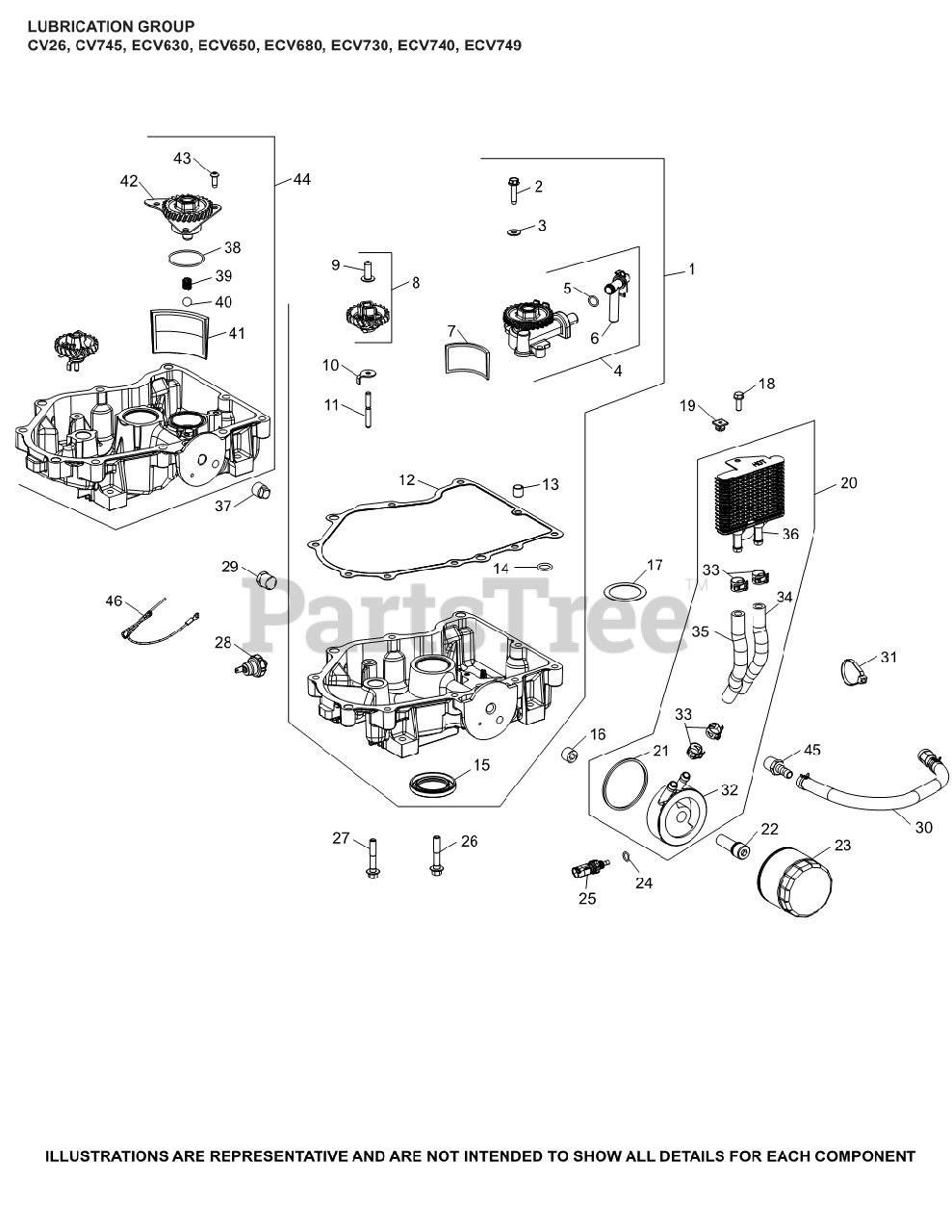

Lubrication Group 3-24-869 ECV630-749 Parts Diagram

  • Title

8

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

$68.99

$

In Stock, Qty 12

0

9

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 9

0

10

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

11

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 8

0

12

Kohler 24 041 66-S

GASKET, OIL PAN

$25.99

$

In Stock, Qty 8

0

14

Kohler 24 153 08-S

O-RING

$6.99

$

In Stock, only 1 left!

0

15

Kohler 25 032 06-S

SEAL, OIL

$10.99

$

In Stock, Qty 20+

0

16

Kohler 25 139 62-S

PLUG, PIPE CTSK 3/8"

$3.49

$

In Stock, only 2 left!

0

22

Kohler 24 136 01-S

NIPPLE, OIL FILTER
(Superseded to 24 136 09-S)

$5.99

$

Usually ships in 2-5 days

0

23

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

27

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 5

0

28

Kohler 24 099 03-S

SENSOR, OIL PSI
(Superseded to 24 755 425-S)

$29.99

$

In Stock, only 1 left!

0

29

Kohler 52 139 02-S

PLUG, HD PIPE 3/8"

$8.49

$

In Stock, only 2 left!

0

38

Kohler 12 153 05-S

O-RING (1.78" DIA)

$7.99

$

In Stock, only 1 left!

0

39

Kohler 24 089 74-S

SPRING, COMPRESSION

$2.49

$

In Stock, only 2 left!

0

40

Kohler 25 194 03-S

PRESSURE RELIEF BALL

$2.49

$

In Stock, only 2 left!

0

41

Kohler 32 162 06-S

SCREEN, OIL

$5.49

$

In Stock, only 2 left!

0

42

Kohler 24 393 89-S

PUMP, OIL ASSEMBLY

$29.99

$

In Stock, only 1 left!

0

43

Kohler 25 086 414-S

SCREW, BUTTON HEAD
(Superseded to 25 086 792-S)

$2.49

$

In Stock, only 2 left!

0

44

Kohler 24 199 35-S

KIT, OIL PAN ASSEMBLY

$337.99

$

In Stock, only 1 left!

0

25086317-S

Kohler 25 086 317-S

SCREW, HEX FLANGE

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0
