ECV650-3011 - Kohler Command PRO EFI Engine, Made for Exmark, 21hp, 15.7kW Ignition/Charging Group 5-24-1161 Parts Diagram

Command PRO EFI Engine, Made for Exmark, 21hp, 15.7kW

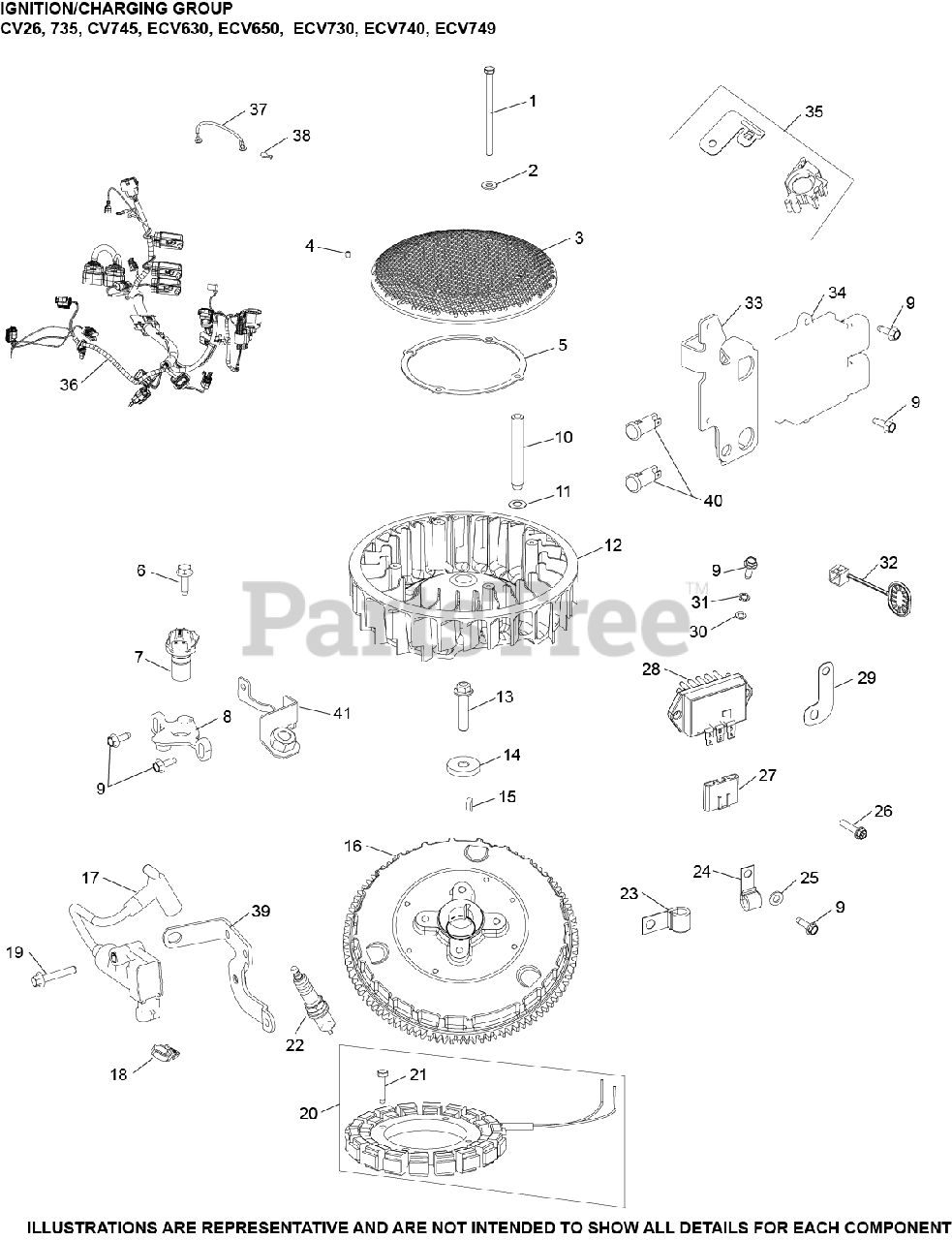

Ignition/Charging Group 5-24-1161 Parts Diagram

  • Title

1

Kohler M-603100-S

SCREW, CAP M6X1.0X99.5

$4.49

$

In Stock, only 4 left!

0

2

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

Usually ships in 2-5 days

0

3

Kohler 24 162 41-S

SCREEN, GRASS

$24.99

$

In Stock, only 1 left!

0

4

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

5

Kohler 24 141 06-S

RING, SUPPORT USE 25 141 08-S
(Superseded to 25 141 08-S)

$5.49

$

Usually ships in 2-5 days

0

6

Kohler 25 086 396-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 1 left!

0

7

Kohler 25 418 01-S

SENSOR, SPEED

$37.99

$

In Stock, only 1 left!

0

8

Kohler 25 126 13-S

BRACKET, SENSOR MOUNT-(#2512616S)
(Superseded to 25 126 16-S)

$7.49

$

Usually ships in 2-5 days

0

9

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

10

Kohler 24 112 14-S

SPACER

$18.99

$

Usually ships in 2-5 days

0

11

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 24 157 12-S

FAN

$22.99

$

In Stock, only 1 left!

0

13

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

14

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

15

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

16

Kohler 24 025 62-S

FLYWHEEL ASSEMBLY

$283.99

$

In Stock, only 1 left!

0

17

Kohler 25 519 03-S

COIL, IGNITION-EFI - USE 25 519 02-S
(Superseded to 25 519 02-S)

$167.99

$

In Stock, only 1 left!

0

18

Kohler 62 154 05-S

CLIP

$11.99

$

Usually ships in 2-5 days

0

19

Kohler M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

In Stock, Qty 18

0

20

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 7

0

21

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

22

Kohler 25 132 14-S

SPARK PLUG, RFI

$14.99

$

Usually ships in 2-5 days

0

24

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 4 left!

0

25

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

26

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, only 2 left!

0

27

Kohler 25 155 41-S

CONNECTOR

$24.99

$

In Stock, only 1 left!

0

28

Kohler 25 403 21-S

REGULATOR, RECTIFIER USE 25 403 32-S
(Superseded to 25 403 48-S)

$68.99

$

In Stock, Qty 20+

0

29

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

$4.99

$

Usually ships in 2-5 days

0

30

Kohler X-25-79-S

WASHER, FLAT 3/16"

$3.99

$

In Stock, only 2 left!

0

31

Kohler X-22-9-S

WASHER, INT TOOTH LOCK #10

$3.99

$

In Stock, only 1 left!

0

32

Kohler 24 173 08-S

CAP, CONNECTOR

$7.49

$

Usually ships in 2-5 days

0

33

Kohler 24 126 197-S

BRACKET, ECU

$8.49

$

Usually ships in 2-5 days

0

34

Kohler 24 584 75-S

MODULE, ECU ECV650 USE 24 584 185-S
(Superseded to 24 584 185-S)

$300.99

$

Usually ships in 2-5 days

0

35

Kohler 25 154 21-S

KIT, MOUNTING CLIP
(Superseded to 25 237 35-S)

$2.49

$

Usually ships in 2-5 days

0

36

Kohler 24 176 157-S

HARNESS, WIRING ASSEMBLY
(Superseded to 24 176 275-S)

$261.99

$

Usually ships in 2-5 days

0

X-22-11-S

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0
