ECV650-3011 - Kohler Command PRO EFI Engine, Made for Exmark, 21hp, 15.7kW Fuel System 8-24-793 ECV630-749 Parts Diagram

Command PRO EFI Engine, Made for Exmark, 21hp, 15.7kW

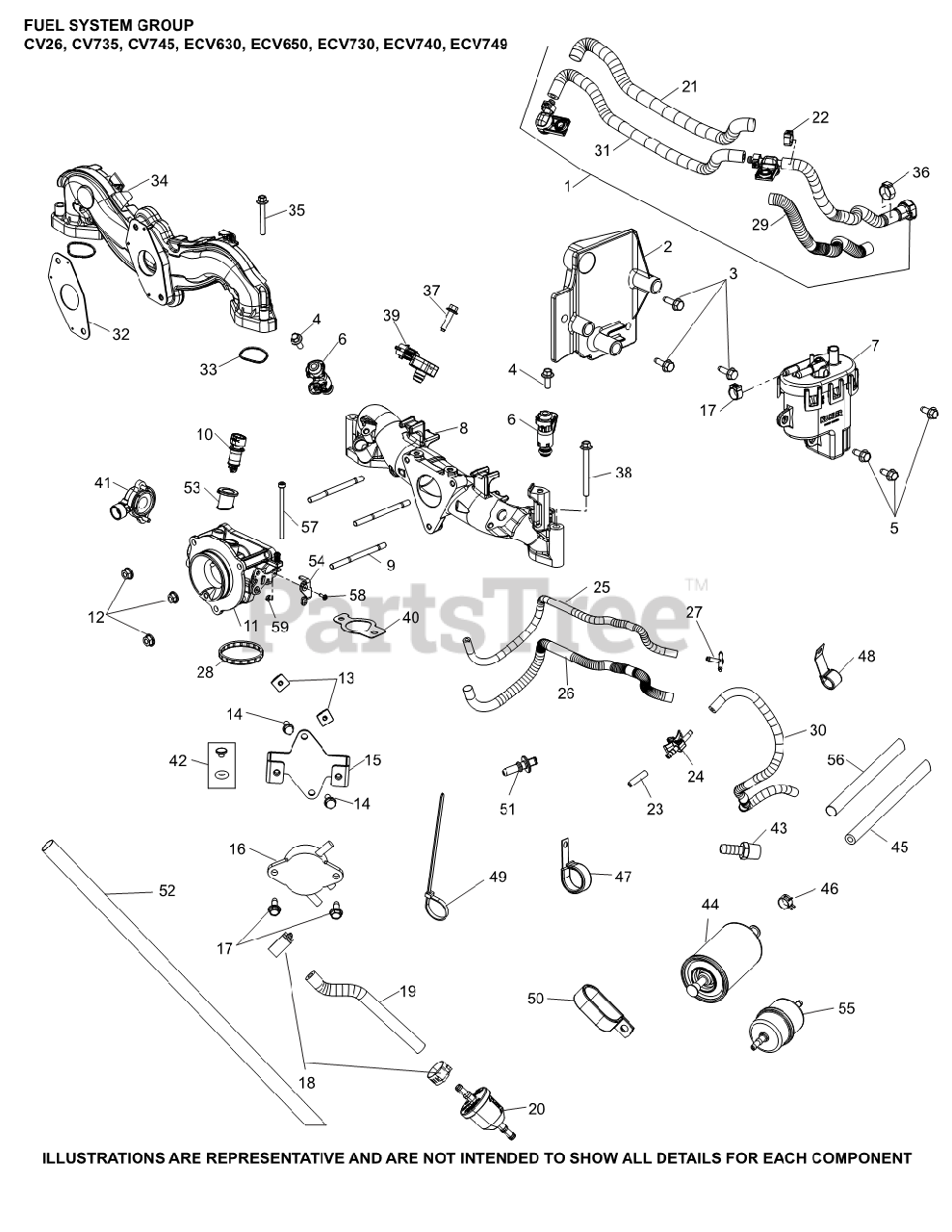

Fuel System 8-24-793 ECV630-749 Parts Diagram

  • Title

1

Kohler 24 399 25-S

FUEL HOSE ASSY (STRAIGHT FITTING)

$116.99

$

In Stock, only 1 left!

0

2

Kohler 24 063 106-S

KIT,BAFFLE, FUEL MODULE

$25.99

$

Usually ships in 2-5 days

0

3

Kohler 25 086 413-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 3 left!

0

4

Kohler M-651016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 3 left!

0

5

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, Qty 6

0

6

Kohler 25 331 01-S

INJECTOR, FUEL

$80.99

$

Usually ships in 2-5 days

0

7

Kohler 25 393 11-S

PUMP, FUEL MODULE - USE 25 393 14-S
(Superseded to 25 393 16-S)

$

$

Not available

8

Kohler 24 164 102-S

KIT, MANIFOLD

$131.99

$

Usually ships in 2-5 days

0

9

Kohler 24 072 16-S

STUD, HDAC-USE M-629085-S
(Superseded to M-629085-S)

$3.99

$

Usually ships in 2-5 days

0

10

Kohler 25 418 03-S

SENSOR, AIR TEMPERATURE

$16.99

$

In Stock, only 1 left!

0

11

Kohler 25 583 10-S

BODY, THROTTLE ASSEMBLY INCLUDES THROTTLE POSITION SENSOR

$274.99

$

Usually ships in 2-5 days

0

12

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 6

0

13

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, Qty 7

0

14

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

15

Kohler 24 126 183-S

BRACKET, FUEL PUMP MOUNTING

$7.99

$

In Stock, only 1 left!

0

16

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 16

0

17

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

18

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

19

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 3 left!

0

20

Kohler 25 050 42-S

FILTER, FUEL

$12.99

$

In Stock, Qty 12

0

22

Kohler 25 237 28-S

CLAMP, OETIKER

$2.99

$

Usually ships in 2-5 days

0

23

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

Usually ships in 2-5 days

0

24

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 3 left!

0

26

Kohler 25 431 22-S

SLEEVE, ANTI-ABRASION

$5.49

$

Usually ships in 2-5 days

0

27

Kohler 25 155 56-S

TEE CONNECTOR

$2.99

$

Usually ships in 2-5 days

0

28

Kohler 25 153 12-S

O-RING, THROTTLE BODY

$13.99

$

Usually ships in 2-5 days

0

30

Kohler 24 326 119-S

HOSE, EVAPORATIVE (15.0)

$3.99

$

In Stock, only 1 left!

0

38

Kohler M-651060-S

SCREW, FLG M6X1.0X60

$3.99

$

Usually ships in 2-5 days

0

39

Kohler 25 418 09-S

SENSOR, MAP

$69.99

$

Usually ships in 2-5 days

0

40

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 7

0

41

Kohler 25 418 08-S

SENSOR, THROTTLE POSITION

$110.99

$

In Stock, only 3 left!

0

42

Kohler 25 755 41-S

KIT, FUEL INJECTOR O-RING

$32.99

$

In Stock, only 2 left!

0

48

Kohler 25 154 04-S

CLIP, CABLE

$3.49

$

Usually ships in 2-5 days

0

50

Kohler 25 237 34-S

CLAMP, INSULATED DOUBLE

$2.99

$

Usually ships in 2-5 days

0
