ECV650-3011 - Kohler Command PRO EFI Engine, Made for Exmark, 21hp, 15.7kW Crankcase Group 2-24-380 ECV630-749 Parts Diagram

Command PRO EFI Engine, Made for Exmark, 21hp, 15.7kW

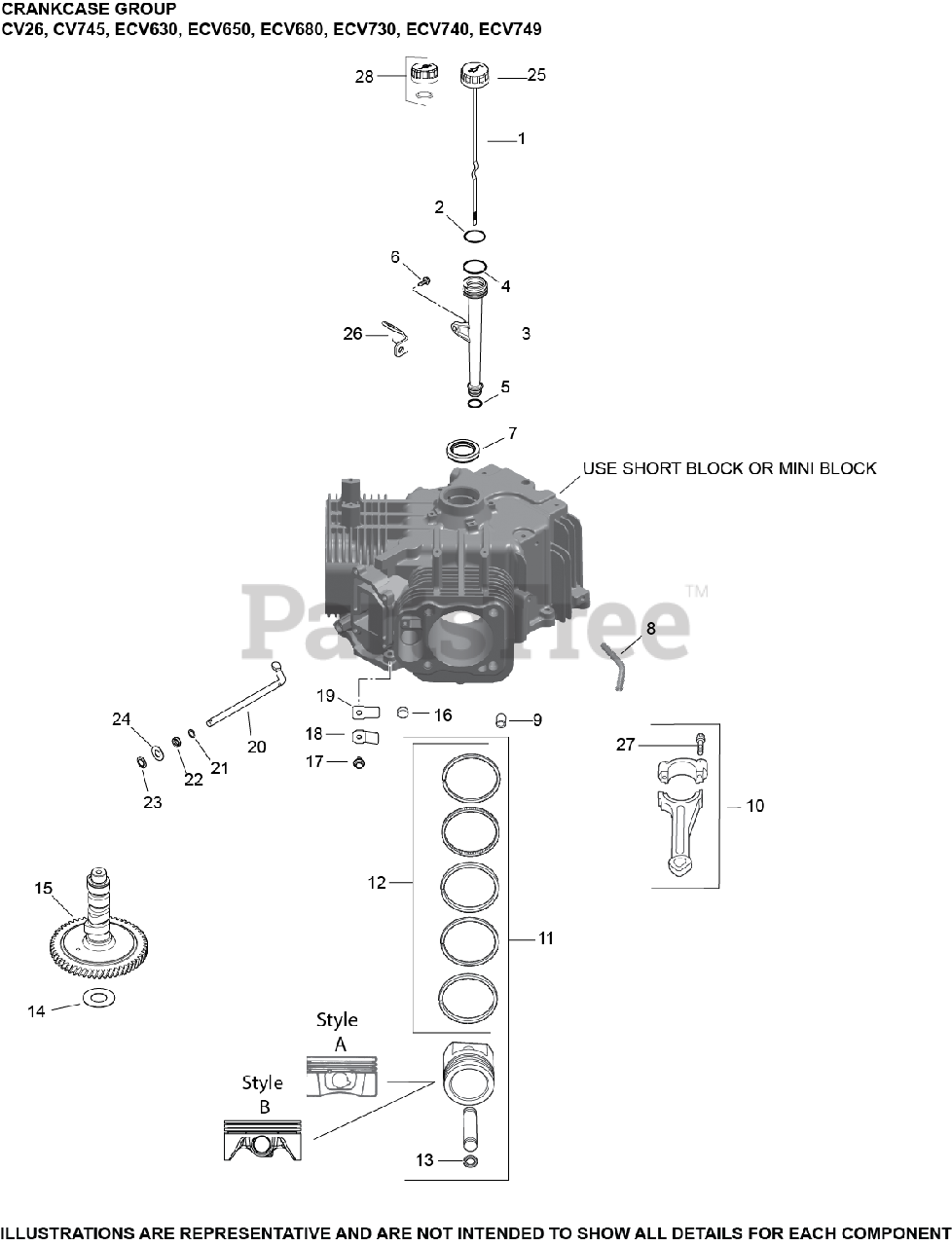

Crankcase Group 2-24-380 ECV630-749 Parts Diagram

  • Title

1

Kohler 24 038 04-S

DIPSTICK, ASSY

$19.99

$

In Stock, only 1 left!

0

2

Kohler 25 153 02-S

O-RING, DIPSTICK

$2.49

$

In Stock, only 1 left!

0

3

Kohler 25 123 07-S

TUBE ASSEMBLY

$16.99

$

In Stock, only 1 left!

0

4

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$2.49

$

In Stock, Qty 8

0

5

Kohler 12 153 01-S

O-RING, LOWER OIL FILL TUBE

$4.99

$

In Stock, Qty 16

0

6

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

7

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

8

Kohler 24 294 13-S

FITTING

$11.99

$

Usually ships in 2-5 days

0

9

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

10

Kohler 24 067 34-S

KIT, CONNECTING ROD ASSEMBLY USE 25 067 04-S
(Superseded to 25 067 04-S)

$59.99

$

In Stock, only 3 left!

0

11

Kohler 24 108 18-S

RING SET (STYLE A)(STD) 1.5MM TOP RING THICKNESS USE PISTON ASSY PER SPEC - Discontinued
(Superseded to 24 108 19-S)

Note: (Before S/N 4310600011)

$

$

Not available

11

Kohler 24 108 19-S

RING SET (STYLE A) (.08) 1.5MM TOP RING THICKNESS -DISCONTINUED
(Superseded to 24 874 43-S)

Note: (Before S/N 4310600011)

$

$

Not available

11

Kohler 24 108 20-S

RING SET (STYLE A)(.25)1.5MM TOP RING THICKNESS - USE 24 874 44-S
(Superseded to 24 874 44-S)

Note: (Before S/N 4310600011)

$289.99

$

Usually ships in 2-5 days

0

11

Kohler 24 108 21-S

RING SET (STYLE A)(.50)1.5MM TOP RING THICKNESS
(Superseded to 24 108 29-S)

Note: (Before S/N 4310600011)

$146.99

$

Usually ships in 2-5 days

0

11

Kohler 24 108 26-S

RING SET (STYLE B) (STD)1.2MM TOP RING THICKNESS

Note: (After S/N 4310600001)

$150.99

$

Usually ships in 2-5 days

0

11

Kohler 24 108 27-S

RING SET (STYLE B) (.08)1.2MM TOP RING THICKNESS

Note: (After S/N 4310600001)

$146.99

$

Usually ships in 2-5 days

0

11

Kohler 24 108 28-S

RING SET (STYLE B) (.25)1.2MM TOP RING THICKNESS

Note: (After S/N 4310600001)

$146.99

$

Usually ships in 2-5 days

0

11

Kohler 24 108 29-S

RING SET (STYLE B) (.50)1.2MM TOP RING THICKNESS

Note: (After S/N 4310600001)

$146.99

$

Usually ships in 2-5 days

0

12

Kohler 24 874 50-S

PISTON W/RINGS (STYLE A)(STD) - USE 24 874 58-S
(Superseded to 24 874 58-S)

Note: (Before S/N 4310600011)

$141.99

$

Usually ships in 2-5 days

0

12

Kohler 24 874 51-S

PISTON W/RINGS (STYLE A)(.08) - DISCONTINUED

Note: (Before S/N 4310600011)

$

$

Not available

12

Kohler 24 874 58-S

PISTON W/RINGS (STYLE B)(STD) - RING SET 24 108 26-S

Note: (After S/N 4310600001)

$141.99

$

Usually ships in 2-5 days

0

12

Kohler 24 874 59-S

PISTON W/RINGS (STYLE B)(.08) - RING SET 24 108 27-S

Note: (After S/N 4310600001)

$141.99

$

Usually ships in 2-5 days

0

12

Kohler 24 874 60-S

PISTON W/RINGS (STYLE B)(.25) - RING SET 24 108 28-S

Note: (After S/N 4310600001)

$141.99

$

Usually ships in 2-5 days

0

12

Kohler 24 874 61-S

PISTON W/RINGS (STYLE B)(.50) - RING SET 24 108 29-S

Note: (After S/N 4310600001)

$141.99

$

Usually ships in 2-5 days

0

13

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

15

Kohler 24 012 29-S

KIT, CAMSHAFT

$153.99

$

In Stock, only 1 left!

0

16

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0

17

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

18

Kohler 24 018 04-S

RETAINER, BREATHER REED

$2.49

$

In Stock, only 2 left!

0

19

Kohler 24 402 05-S

REED, BREATHER
(Superseded to 24 402 07-S)

$3.99

$

In Stock, Qty 8

0

20

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$41.99

$

Usually ships in 2-5 days

0

21

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

22

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 6

0

23

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

Usually ships in 2-5 days

0

24

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

27

Kohler 25 086 452-S

KIT, ROD BOLTS
(Superseded to 25 086 677-S)

$2.49

$

In Stock, only 3 left!

0

28

Kohler 25 755 13-S

KIT, OIL FILL CAP (BLACK)

$13.99

$

In Stock, only 1 left!

0
