ECV650-3011 - Kohler Command PRO EFI Engine, Made for Exmark, 21hp, 15.7kW Blower Housing Group 6-24-456 ECV630-749 Parts Diagram

Command PRO EFI Engine, Made for Exmark, 21hp, 15.7kW

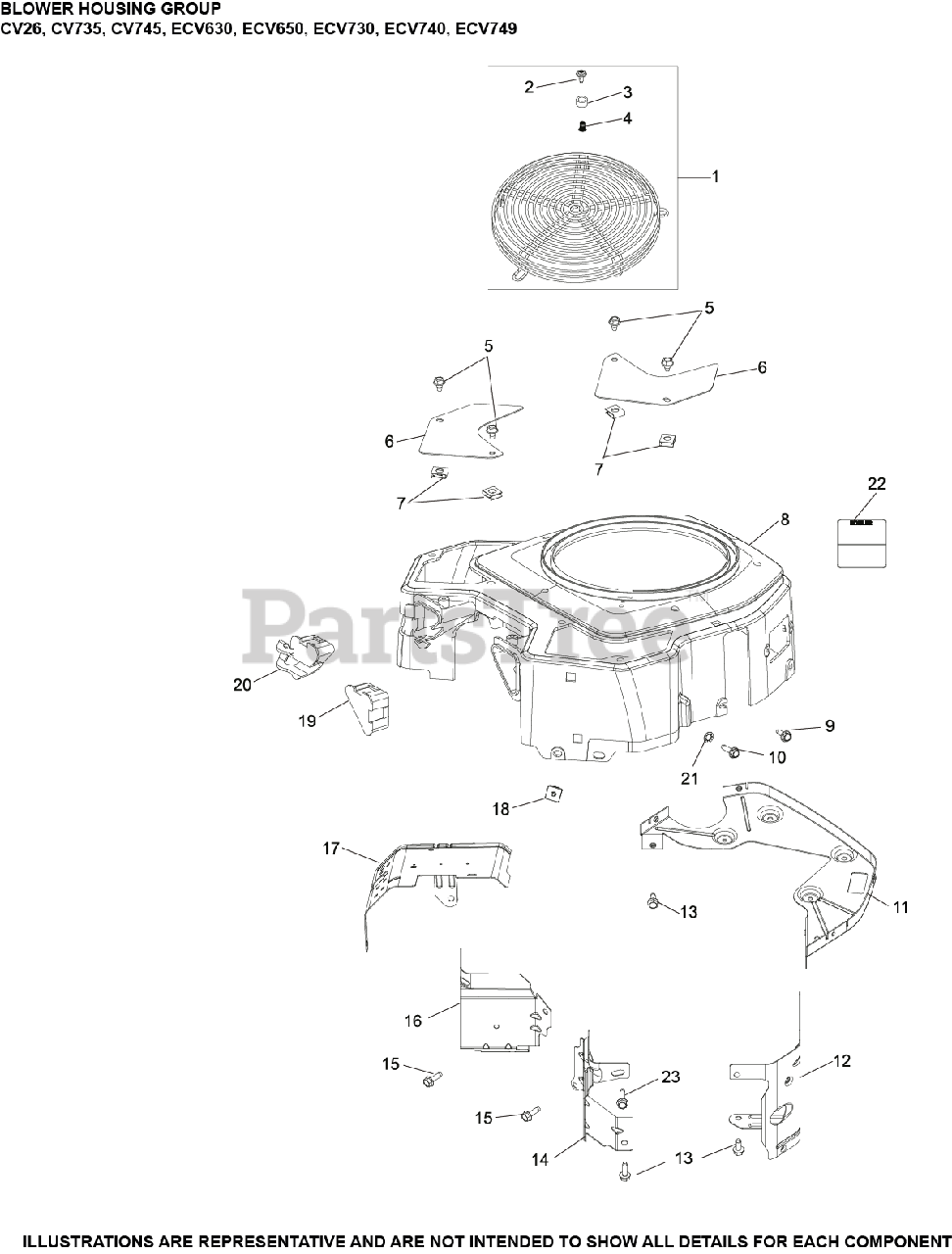

Blower Housing Group 6-24-456 ECV630-749 Parts Diagram

  • Title

1

Kohler 24 755 94-S

KIT, GUARD

$86.99

$

In Stock, only 1 left!

0

2

Kohler 25 086 160-S

SCREW, SEMS

$2.99

$

In Stock, Qty 14

0

3

Kohler 24 112 09-S

SPACER USE 25 112 30-S
(Superseded to 25 112 30-S)

$4.49

$

In Stock, only 1 left!

0

4

Kohler 24 332 01-S

INSERT, THREADED USE 25 332 19-S
(Superseded to 25 332 19-S)

$3.49

$

In Stock, Qty 5

0

5

Kohler 25 086 158-S

SCREW, FLNG THD FRM M6X1.0X10 USE 25 086 406-S
(Superseded to 25 086 406-S)

$2.49

$

In Stock, Qty 9

0

6

Kohler 25 755 20-S

KIT, ACCESS PANEL

$27.99

$

In Stock, Qty 5

0

7

Kohler 25 154 13-S

CLIP, BAFFLE MOUNTING USE 25 154 37-S
(Superseded to 25 154 37-S)

$2.49

$

In Stock, Qty 12

0

8

Kohler 24 027 457-S

HOUSING, BLOWER

$87.99

$

In Stock, only 1 left!

0

9

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

10

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

11

Kohler 24 146 57-S

PLATE, BACKING

$16.99

$

Usually ships in 2-5 days

0

12

Kohler 24 063 102-S

BARREL, LEFT BAFFLE-(#24063112S)
(Superseded to 24 063 112-S)

$16.99

$

Usually ships in 2-5 days

0

13

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

14

Kohler 24 063 94-S

BAFFLE, VALLEY #2 CYLINDER

$9.49

$

Usually ships in 2-5 days

0

15

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

16

Kohler 24 063 93-S

BAFFLE, VALLEY #1 CYLINDER
(Superseded to 24 063 114-S)

$6.49

$

In Stock, only 1 left!

0

17

Kohler 24 063 101-S

BAFFLE, BARREL
(Superseded to 24 063 111-S)

$17.99

$

Usually ships in 2-5 days

0

18

Kohler 24 100 02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 24 096 17-S

COVER, BLOWER HOUSING USE 24 096 160-S
(Superseded to 24 096 160-S)

$4.99

$

In Stock, only 2 left!

0

20

Kohler 24 096 119-S

COVER, BLOWER HOUSING-MOLDED USE 24 096 161-S
(Superseded to 24 096 161-S)

$2.49

$

In Stock, only 1 left!

0
