ECV100-145322G - Tecumseh Engine Engine Parts List #1 Parts Diagram

Engine

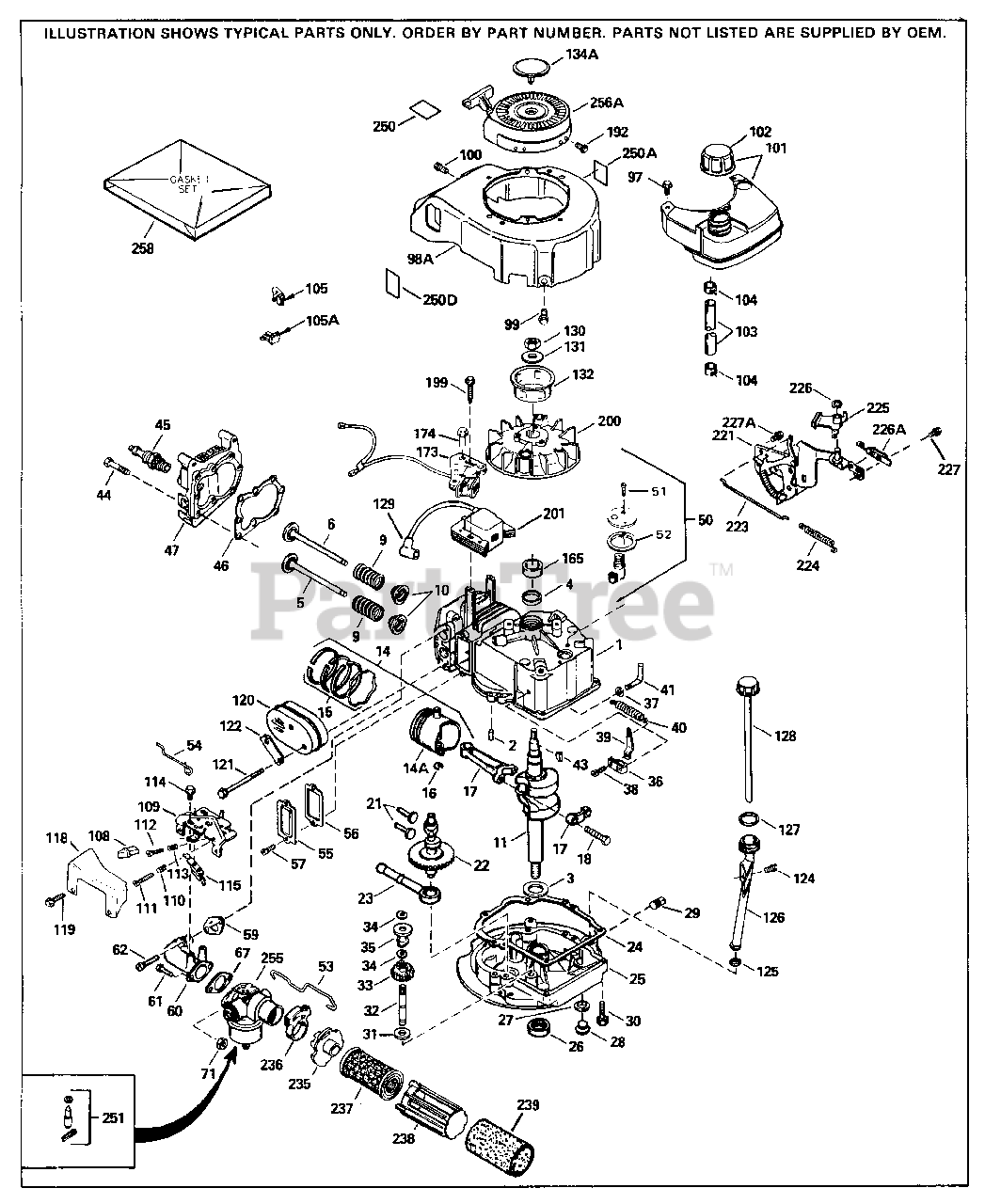

Engine Parts List #1 Parts Diagram

  • Title

1

Tecumseh 35512

"Cylinder (Incl. 2 & 4) (2-5/8" Bore)

$127.99

$

Usually ships in 3-12 days

0

2

Tecumseh 26727

Dowel Pin

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 32323

Washer, Thrust

$8.49

$

Usually ships in 3-12 days

0

4

Tecumseh 32600

Seal, Oil

$

$

Not available

5

Tecumseh 29313C

Exhaust Valve (Std.) (Incl. 151) (Con ventional Ports)

$

$

Not available

5

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151) (Conventional Ports)

$

$

Not available

6

Tecumseh 29314B

Intake Valve (Std.) (Incl. 151) (Conv entional Ports)
(Superseded to 29314C)

$5.99

$

Usually ships in 3-12 days

0

6

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151) (Conventional Ports)

$

$

Not available

9

Tecumseh 31672

Spring, Valve

$1.99

$

In Stock, Qty 14

0

10

Tecumseh 31673

Cap, Lower valve spring

$1.99

$

In Stock, Qty 5

0

11

Tecumseh 35175

Crankshaft

$85.99

$

Usually ships in 3-12 days

0

14

Tecumseh 34851

Piston, Pin & Ring Set (Std.) 2-5/8" Bore
(Superseded to 35544A)

$60.99

$

In Stock, only 2 left!

0

14

Tecumseh 34852

Piston, Pin & Ring Set (.010" OS)
(Superseded to 35545A)

$

$

Not available

14

Tecumseh 34853

Piston, Pin & Ring Set (.020" OS)
(Superseded to 35546)

$

$

Not available

14A

Tecumseh 32603B

Piston & Pin Ass'y. (Incl. 16)(Std.) 2-5/8"
(Superseded to 35544A)

$60.99

$

In Stock, only 2 left!

0

14A

Tecumseh 32604B

Piston & Pin Ass'y. (Incl. 16) .010" OS
(Superseded to 35545A)

$

$

Not available

14A

Tecumseh 32605B

Piston & Pin Ass'y. (Incl. 16) .020" OS
(Superseded to 35546)

$

$

Not available

15

Tecumseh 34854

Ring Set (Std.) (2-5/8" Bore)

$

$

Not available

15

Tecumseh 34855

Ring Set (.010" OS)

$

$

Not available

15

Tecumseh 34856

Ring Set (.020" OS)

$

$

Not available

16

Tecumseh 20381

Piston Pin Retaining Ring

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 30963B

Rod Assy., Connecting (Incl. 18)

$29.99

$

Usually ships in 3-12 days

0

18

Tecumseh 32610A

Bolt, Connecting rod

$1.99

$

In Stock, Qty 6

0

21

Tecumseh 27241

Valve Lifter

$5.49

$

In Stock, only 2 left!

0

22

Tecumseh 33553

Camshaft (MCR)
(Superseded to 35992)

$72.99

$

Usually ships in 3-12 days

0

23

Tecumseh 29914

Oil Pump Ass'y.

$9.49

$

Usually ships in 3-12 days

0

24

Tecumseh 35261

* Gasket, Mounting flange
(Superseded to 37609)

$2.99

$

Usually ships in 3-12 days

0

25

Tecumseh 34311B

Flange Ass'y. (Incl. 26, 28, 29 & 32)
(Superseded to 37608A)

$77.99

$

Usually ships in 3-12 days

0

26

Tecumseh 27897

Oil Seal

$8.49

$

In Stock, Qty 14

0

27

Tecumseh 28833

* Drain Plug Gasket Not req. w/plastic plug

$1.99

$

In Stock, only 1 left!

0

28

Tecumseh 30572

Plug, Oil drain
(Superseded to 36083)

$6.99

$

In Stock, Qty 5

0

30

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

31

Tecumseh 30590A

Washer, Flat

$1.99

$

In Stock, Qty 5

0

32

Tecumseh 30574

Shaft, Mechanical governor
(Superseded to 30574A)

$7.49

$

In Stock, only 2 left!

0

33

Tecumseh 30591

Gear Assy., Governor (Incl. 31)

$13.99

$

Usually ships in 3-12 days

0

34

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, Qty 5

0

35

Tecumseh 30588A

Spool, Governor

$1.99

$

In Stock, Qty 5

0

36

Tecumseh 31335

Clamp, Governor lever

$1.99

$

In Stock, only 1 left!

0

37

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 3 left!

0

38

Tecumseh 650548

Screw, 8-32 x 5/16"
(Superseded to 651018)

$1.99

$

In Stock, Qty 5

0

39

Tecumseh 31383A

Lever, Governor

$1.99

$

In Stock, only 3 left!

0

40

Tecumseh 31361

Spring, Governor

$1.99

$

In Stock, Qty 5

0

41

Tecumseh 30589

Rod, Governor (Incl. 37)

$5.49

$

In Stock, only 1 left!

0

43

Tecumseh 611004

Flywheel Key (also available in Packa ged Part #740007B)

$1.49

$

In Stock, only 4 left!

0

44

Tecumseh 6021A

Screw, 5/16-18 x 1-1/2"

$1.99

$

In Stock, Qty 6

0

45

Tecumseh 35395

Resistor Spark Plug (RJ19LM) also ava ilable in Packaged Part #740081

$3.99

$

In Stock, Qty 14

0

46

Tecumseh 33015

* Gasket, Cylinder head
(Superseded to 33015A)

$11.99

$

Usually ships in 3-12 days

0

47

Tecumseh 34342

Head, Cylinder
(Superseded to 36476)

$32.99

$

Usually ships in 3-12 days

0

51

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

53

Tecumseh 34336

Link, Governor-to-throttle
(Superseded to 34336A)

$1.99

$

In Stock, Qty 5

0

54

Tecumseh 34337

Link, Governor spring

$1.99

$

In Stock, only 1 left!

0

55

Tecumseh 32755

Cover, Valve spring box

$5.49

$

Usually ships in 3-12 days

0

56

Tecumseh 27234

* Gasket, Valve spring cover
(Superseded to 27234A)

$5.99

$

In Stock, only 1 left!

0

57

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 1 left!

0

59

Tecumseh 34690

* Gasket, Intake
(Superseded to 34690A)

$4.49

$

In Stock, only 2 left!

0

60

Tecumseh 31384A

Pipe, Intake (Incl. 59)

$21.99

$

In Stock, only 2 left!

0

61

Tecumseh 6201

Screw, 1/4-28 x 7/8"

$

$

Not available

62

Tecumseh 650451

Screw, 1/4-20 x 1"

$1.99

$

In Stock, only 2 left!

0

67

Tecumseh 26756

* Gasket, Carburetor

$2.99

$

In Stock, only 2 left!

0

71

Tecumseh 29752

Nut & Lock Washer 1/4-28

$1.99

$

In Stock, Qty 7

0

98A

Tecumseh 35497

Housing, Blower

$29.99

$

Usually ships in 3-12 days

0

99

Tecumseh 650831

Screw, 1/4-20 x 1/2"

$1.99

$

In Stock, only 3 left!

0

100

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

102

Tecumseh 35355

Fuel Cap (Red)
(Superseded to 37845)

$8.99

$

In Stock, Qty 6

0

103

Tecumseh 30705

Fuel Line (Braided 16")

$16.99

$

In Stock, only 4 left!

0

104

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

108

Tecumseh 35511

Control Knob

$1.99

$

Usually ships in 3-12 days

0

109

Tecumseh 33205A

Control Bracket Incl. 110,111,112,11 3 & 115

$38.99

$

Usually ships in 3-12 days

0

110

Tecumseh 33802

Spring, Compression
(Superseded to 36482)

$3.99

$

In Stock, only 1 left!

0

111

Tecumseh 650777

Screw, 6-32 x 17/32"
(Superseded to 651019)

$1.99

$

In Stock, Qty 5

0

112

Tecumseh 650549

Screw, 6-50 x 7/16"
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

113

Tecumseh 31342

Spring, Compression

$5.99

$

In Stock, only 1 left!

0

114

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

121

Tecumseh 650869

Screw 1/4-20 x 2-3/4"

$3.99

$

Usually ships in 3-12 days

0

122

Tecumseh 35171

Plate, Lock

$2.99

$

Usually ships in 3-12 days

0

124

Tecumseh 650562

Screw, 10-32 x 1/2"

$1.99

$

In Stock, Qty 9

0

125

Tecumseh 34265

Gasket, Oil fill tube

$2.49

$

In Stock, only 1 left!

0

126

Tecumseh 35498

Oil Fill Tube

$5.49

$

Usually ships in 3-12 days

0

127

Tecumseh 35499

"O" Ring

$1.49

$

In Stock, only 3 left!

0

128

Tecumseh 35611

Dipstick
(Superseded to 35507)

$7.49

$

Usually ships in 3-12 days

0

129

Tecumseh 610118

Cover, Spark plug

$6.49

$

In Stock, only 2 left!

0

130

Tecumseh 650816

Nut, Flywheel

$4.49

$

In Stock, Qty 6

0

131

Tecumseh 650815

Washer, Belleville

$1.99

$

In Stock, Qty 10

0

132

Tecumseh 35000

Hub, Starter
(Superseded to 35000A)

$9.49

$

In Stock, only 1 left!

0

165

Tecumseh 34080

Spacer, Flywheel Key

$1.99

$

In Stock, only 2 left!

0

192

Tecumseh 650884

Screw, 8-32 x 1/2"
(Superseded to 650926)

$1.49

$

In Stock, only 3 left!

0

199

Tecumseh 650814

Screw, 10-24 x 1"
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

200

Tecumseh 611299

Flywheel

$

$

Not available

201

Tecumseh 34443A

Solid State Assy.
(Superseded to 34443D)

$44.99

$

In Stock, only 3 left!

0

221

Tecumseh 35015A

Bracket Assy., S.E. Brake
(Superseded to 35015B)

$31.99

$

Usually ships in 3-12 days

0

223

Tecumseh 34966

Link, Control

$1.99

$

In Stock, only 1 left!

0

224

Tecumseh 34965

Spring, Extension

$3.99

$

Usually ships in 3-12 days

0

225

Tecumseh 34968

Lever, Brake
(Superseded to 35831)

$12.99

$

Usually ships in 3-12 days

0

226

Tecumseh 32309

Ring, Retaining

$1.99

$

In Stock, only 1 left!

0

226A

Tecumseh 610973

Terminal Assy.

$3.99

$

In Stock, only 4 left!

0

227

Tecumseh 650839

Screw, 1/4-20 x 3/8"

$1.99

$

Usually ships in 3-12 days

0

239

Tecumseh 35435

Filter, Pre-air (Use as required) Po ly

$2.99

$

In Stock, only 2 left!

0

251

Tecumseh 631021

Inlet Needle, Seat & Clip Assy.
(Superseded to 631021B)

$6.99

$

In Stock, Qty 20+

0

255

Tecumseh 632468

Carburetor (Incl. 67) (Refer to Divis ion 5, Section A, page 196 for breakd own)
(Superseded to 632795A)

$109.99

$

In Stock, only 2 left!

0

256A

Tecumseh 590637

Rewind Starter Refer to Division 5, S ection C, page 34 for breakdown
(Superseded to 590739)

$62.99

$

In Stock, only 1 left!

0

258

Tecumseh 33238B

* Gasket Set (Incl. items marked *)
(Superseded to 33238E)

$50.99

$

In Stock, only 1 left!

0
