ECSKA21 - Exmark 21" Commercial S-Series Walk-Behind Mower, Kawasaki (SN: 313000000 - 313999999) (2013) Handle Assembly Parts Diagram

21" Commercial S-Series Walk-Behind Mower, Kawasaki

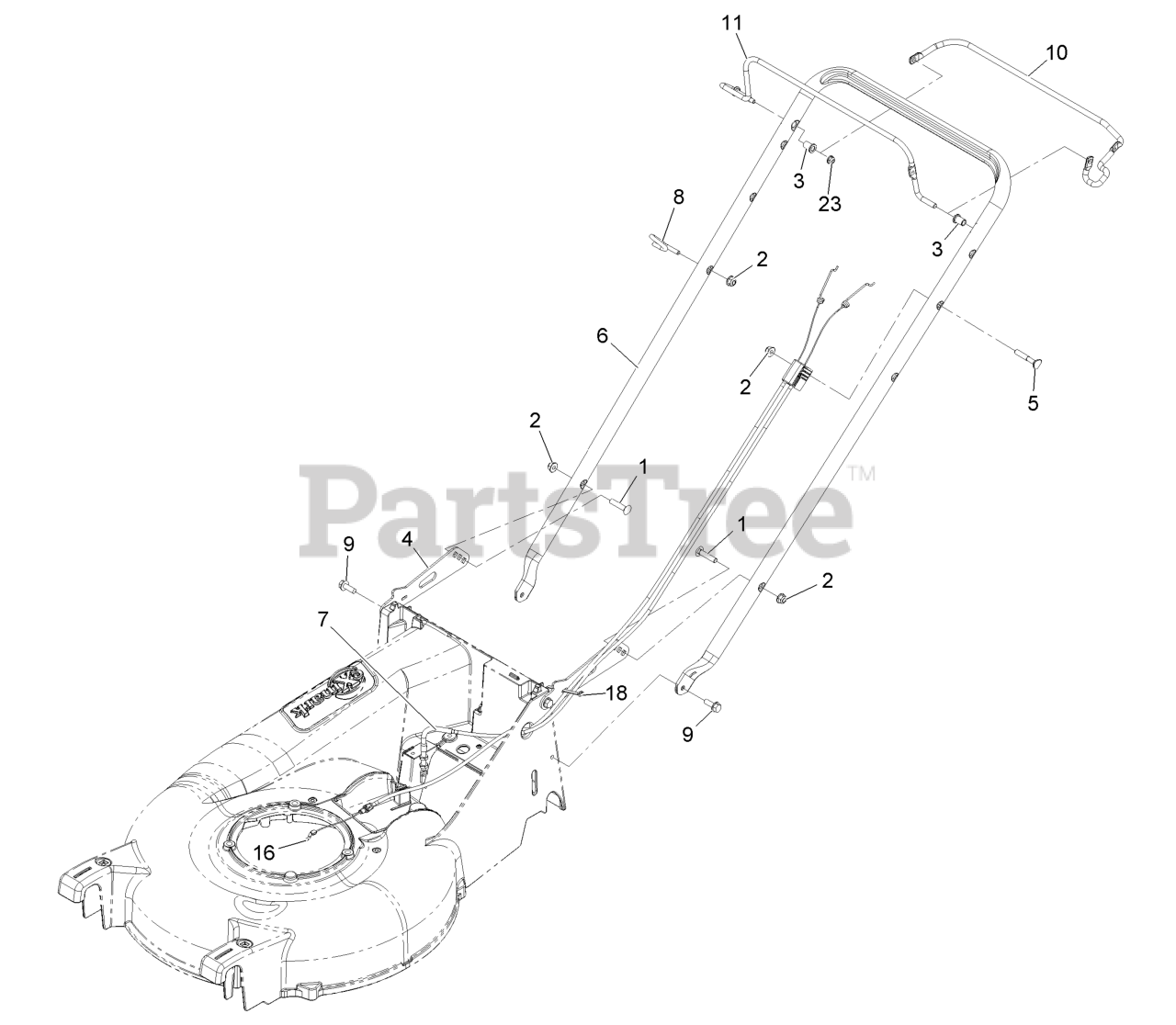

Handle Assembly Parts Diagram

  • Title

1

Exmark 33-5790

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

2

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

3

Exmark 116-1478

BUSHING-HANDLEBAR

$6.49

$

In Stock, only 2 left!

0

4

Exmark 109-9323-03

BRACKET,HANDLEBAR

$8.49

$

In Stock, only 2 left!

0

5

Exmark 112-8876

92-2260
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 5

0

6

Exmark 116-0119-03

HANDLEBAR-P21

$138.99

$

In Stock, only 4 left!

0

7

Exmark 116-0904

126-7397
(Superseded to 126-7397)

$44.99

$

In Stock, Qty 19

0

8

Exmark 116-1056

GUIDE,ROPE

$6.49

$

In Stock, only 2 left!

0

9

Exmark 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

10

Exmark 116-7797

116-7907
(Superseded to 116-7907)

$50.99

$

In Stock, only 2 left!

0

11

Exmark 116-2252

BAIL,OPC/BBC

$32.99

$

Usually ships in 3-6 days

0

16

Exmark 116-0905

CABLE-ZONE KAWASAKI

$33.99

$

In Stock, Qty 6

0

18

Exmark 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

23

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
