ECS180GKA21000 - Exmark 21" S-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 316000000 - 399999999) (2016) Deck and Wheel Assembly Parts Diagram

21" S-Series Walk-Behind Mower, Kawasaki FJ180V

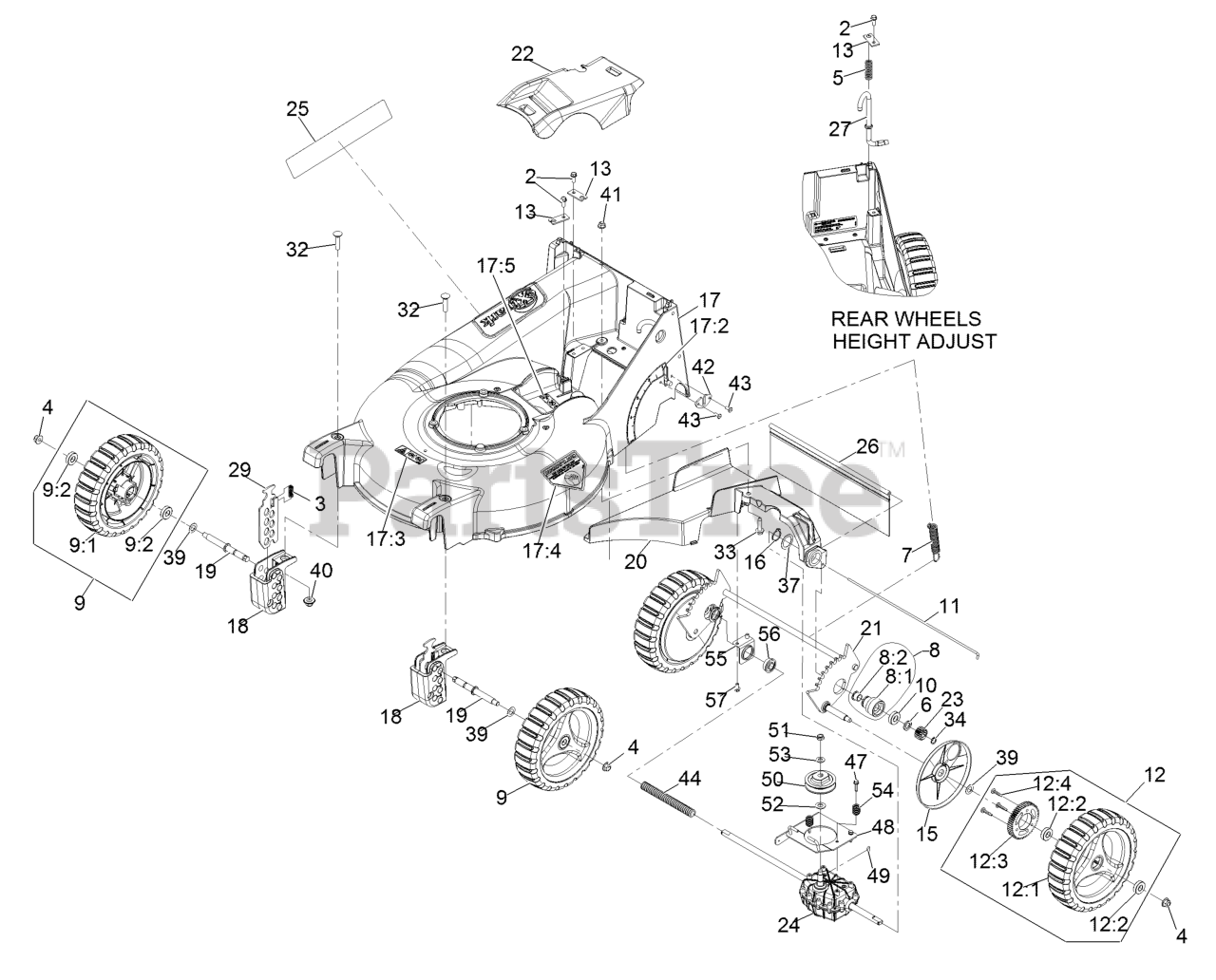

Deck and Wheel Assembly Parts Diagram

  • Title

2

Exmark 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

3

Exmark 109-7258

SPRING-COMPRESSION

$2.99

$

In Stock, Qty 15

0

4

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 109-7694

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

6

Exmark 108-5059

SPACER-BUSHING

$7.99

$

In Stock, Qty 6

0

7

Exmark 109-7692

SPRING-EXTENSION

$6.49

$

In Stock, only 3 left!

0

8

Exmark 116-6172

HOUSING ASM

$17.99

$

In Stock, Qty 13

0

8:1

Exmark 116-6171

HOUSING-BEARING

$17.99

$

In Stock, Qty 5

0

8:2

Exmark 116-4279

BEARING-FLANGE

$5.49

$

In Stock, only 3 left!

0

9

Exmark 109-8016

126-7347
(Superseded to 126-7347)

$86.99

$

In Stock, Qty 5

0

9:1

Exmark 109-8033

126-7345
(Superseded to 126-7345)

$68.99

$

In Stock, only 2 left!

0

9:2

Exmark 109-8020

BEARING-BALL
(Superseded to 52-2450)

$17.99

$

In Stock, Qty 20+

0

10

Exmark 109-8020

BEARING-BALL
(Superseded to 52-2450)

$17.99

$

In Stock, Qty 20+

0

11

Exmark 109-8025

ROD,SHIELD

$11.99

$

In Stock, only 1 left!

0

12

Exmark 109-8032

135-0203
(Superseded to 135-0203)

$94.99

$

In Stock, only 2 left!

0

12:1

Exmark 109-8033

126-7345
(Superseded to 126-7345)

$68.99

$

In Stock, only 2 left!

0

12:2

Exmark 109-8020

BEARING-BALL
(Superseded to 52-2450)

$17.99

$

In Stock, Qty 20+

0

12:3

Exmark 109-7264

GEAR

$25.99

$

In Stock, only 2 left!

0

12:4

Exmark 27-6260

SCREW-DRIVE

$1.49

$

In Stock, only 4 left!

0

13

Exmark 109-8441

BRACKET,MOUNT

$5.99

$

In Stock, only 4 left!

0

15

Exmark 109-9287

COVER,GEAR

$11.99

$

In Stock, only 2 left!

0

16

Exmark 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 18

0

17

Exmark 116-2006

DECK W/DECALS
(Superseded to 142-8690)

$351.99

$

Usually ships in 3-6 days

0

17:2

Exmark 116-1922

DECAL-HEIGHT OF CUT

$7.49

$

In Stock, Qty 7

0

17:3

Exmark 130-9670

DECAL-WARNING, BLADE

$2.99

$

In Stock, Qty 13

0

17:4

Exmark 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 12

0

17:5

Exmark 119-0217

DECAL-DANGER

$5.49

$

Usually ships in 3-6 days

0

18

Exmark 109-9302

BLOCK,FRONT QUADRANT

$24.99

$

In Stock, only 2 left!

0

19

Exmark 116-0994

AXLE-WHEEL

$10.99

$

In Stock, Qty 7

0

20

Exmark 116-9646-01

BRACKET-TRANSMISSION AND

$53.99

$

In Stock, only 1 left!

0

21

Exmark 109-9312

WLD,REAR AXLE P21

$115.99

$

In Stock, only 3 left!

0

22

Exmark 109-9324

COVER,BELT

$16.99

$

In Stock, only 2 left!

0

23

Exmark 110-9417

131-5399
(Superseded to 131-5399)

$5.49

$

In Stock, Qty 20+

0

24

Exmark 116-9906

TRANSMISSION-HD, 4.5/1

$172.99

$

In Stock, only 1 left!

0

25

Exmark 126-6885

DECAL-COMM 21 S-SERIES

$8.99

$

Usually ships in 3-6 days

0

26

Exmark 116-0252

SHIELD-TRAILING P21

$31.99

$

In Stock, only 3 left!

0

27

Exmark 116-0329

ROD-HEIGHT ADJ P21

$8.99

$

In Stock, only 3 left!

0

29

Exmark 109-9292

PLATE, FRONT HEIGHT

$16.99

$

In Stock, only 2 left!

0

32

Exmark 109-8449

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

33

Exmark 32144-49

SCREW-HWHTF

$5.49

$

In Stock, only 1 left!

0

34

Exmark 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

37

Exmark 74-1810

WASHER

$0.99

$

In Stock, Qty 7

0

39

Exmark 36-4780

WASHER-PLAIN

$7.99

$

In Stock, only 2 left!

0

40

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 4 left!

0

41

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

42

Exmark 116-2221

PLATE,WEAR

$7.49

$

In Stock, only 3 left!

0

43

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

44

Exmark 126-2335

COVER-SHAFT-DRIVE

$5.99

$

Usually ships in 3-6 days

0

47

Exmark 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

48

Exmark 116-3539-03

TRANSMISSION PLATE ASM

$54.99

$

Usually ships in 3-6 days

0

49

Exmark 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 14

0

50

Exmark 39-6740

PULLEY

$55.99

$

Usually ships in 3-6 days

0

51

Exmark 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

52

Exmark 36-4792

WASHER-THRUST

$1.49

$

In Stock, Qty 16

0

53

Exmark 3256-45

WASHER-FLAT

$0.99

$

In Stock, only 3 left!

0

54

Exmark 116-1438

SPRING,COMPRESSION

$2.99

$

In Stock, only 2 left!

0

55

Exmark 120-7008

138-3233
(Superseded to 138-3233)

$5.49

$

In Stock, only 3 left!

0

56

Exmark 104-8699

BEARING-BALL

$4.49

$

In Stock, Qty 20+

0

57

Exmark 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0
