ECS180CKA30000 - Exmark 30" S-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 408644346 - 411294211) (Rev A) (2021) Deck, Frame, and Chute Assembly Parts Diagram

30" S-Series Walk-Behind Mower, Kawasaki FJ180V

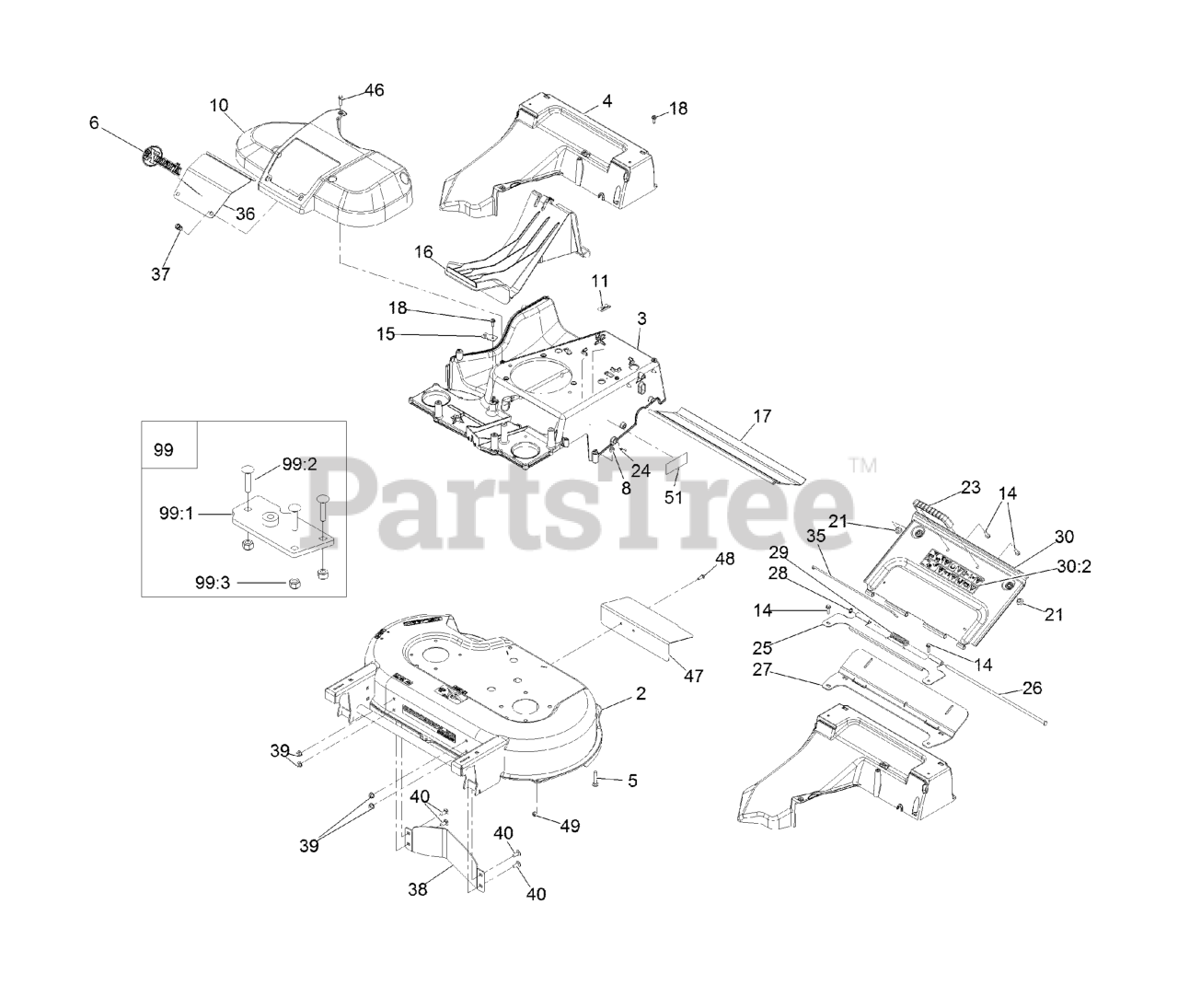

Deck, Frame, and Chute Assembly Parts Diagram

  • Title

2

Exmark 126-7582

DECK-30, W/DECALS

$489.99

$

Usually ships in 3-6 days

0

3

Exmark 136-5908-01

FRAME
(Superseded to 140-3978)

$184.99

$

In Stock, Qty 5

0

4

Exmark 133-8177

CHUTE

$58.99

$

Usually ships in 3-6 days

0

5

Exmark 3230-5

BOLT-CAR

$0.99

$

Usually ships in 3-6 days

0

6

Exmark 126-6575

DECAL-EXMARK LOGO

$5.99

$

In Stock, only 1 left!

0

8

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Exmark 139-5406

COVER-BELT

$36.99

$

In Stock, only 1 left!

0

11

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9

0

14

Exmark 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

15

Exmark 138-3224

BRACKET-CABLE, TRACTION

$2.99

$

In Stock, Qty 6

0

16

Exmark 120-5225

PLUG-MULCH

$29.99

$

In Stock, only 3 left!

0

17

Exmark 121-5841

SHIELD-TRAILING

$22.99

$

In Stock, only 1 left!

0

18

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

21

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

23

Exmark 65-5100

HANDLE-DOOR

$9.99

$

In Stock, Qty 8

0

24

Exmark 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 13

0

25

Exmark 116-6351-03

BRACKET-HINGE

$39.99

$

In Stock, only 1 left!

0

26

Exmark 116-6933

PIN-HINGE

$8.99

$

In Stock, Qty 5

0

27

Exmark 116-6229

SEAL-DOOR

$22.99

$

In Stock, only 1 left!

0

28

Exmark 32151-72

RING-RETAINING

$1.99

$

In Stock, only 2 left!

0

29

Exmark 116-7573

SPRING-TORSION, COVER

$5.49

$

In Stock, Qty 8

0

30

Exmark 116-8355

REAR DOOR ASM

$66.99

$

In Stock, only 1 left!

0

30:2

Exmark 116-7583

DECAL-WARNING

$17.99

$

In Stock, Qty 11

0

35

Exmark 116-6966

CLIP-SEAL

$6.49

$

In Stock, only 2 left!

0

36

Exmark 121-5793-03

DOOR-ACCESS

$16.99

$

In Stock, Qty 7

0

37

Exmark 121-5840

FASTENER

$6.49

$

In Stock, Qty 20+

0

38

Exmark 130-2352-01

BAFFLE-CONTROL

$27.99

$

Usually ships in 3-6 days

0

39

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

40

Exmark 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

46

Exmark 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

47

Exmark 126-6381-01

DEFLECTOR-REAR

$21.99

$

Usually ships in 3-6 days

0

48

Exmark 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

49

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

51

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

99

Exmark 125-5072

FRAME PLATE KIT

$45.99

$

Usually ships in 3-6 days

0

99:1

Exmark 125-2542

PLATE-FRAME

Note: Not illustrated

$40.99

$

Usually ships in 3-6 days

0

99:2

Exmark 3229-3

SCREW-CARR

Note: Not illustrated

$5.49

$

Usually ships in 3-6 days

0

99:3

Exmark 3296-42

NUT-LOCK, NI

Note: Not illustrated

$0.99

$

In Stock, Qty 12

0
