ECS180CKA30000 - Exmark 30" S-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 406294345 - 408644345) (Rev A) (2020) Spindle and Blade Assembly Parts Diagram

30" S-Series Walk-Behind Mower, Kawasaki FJ180V

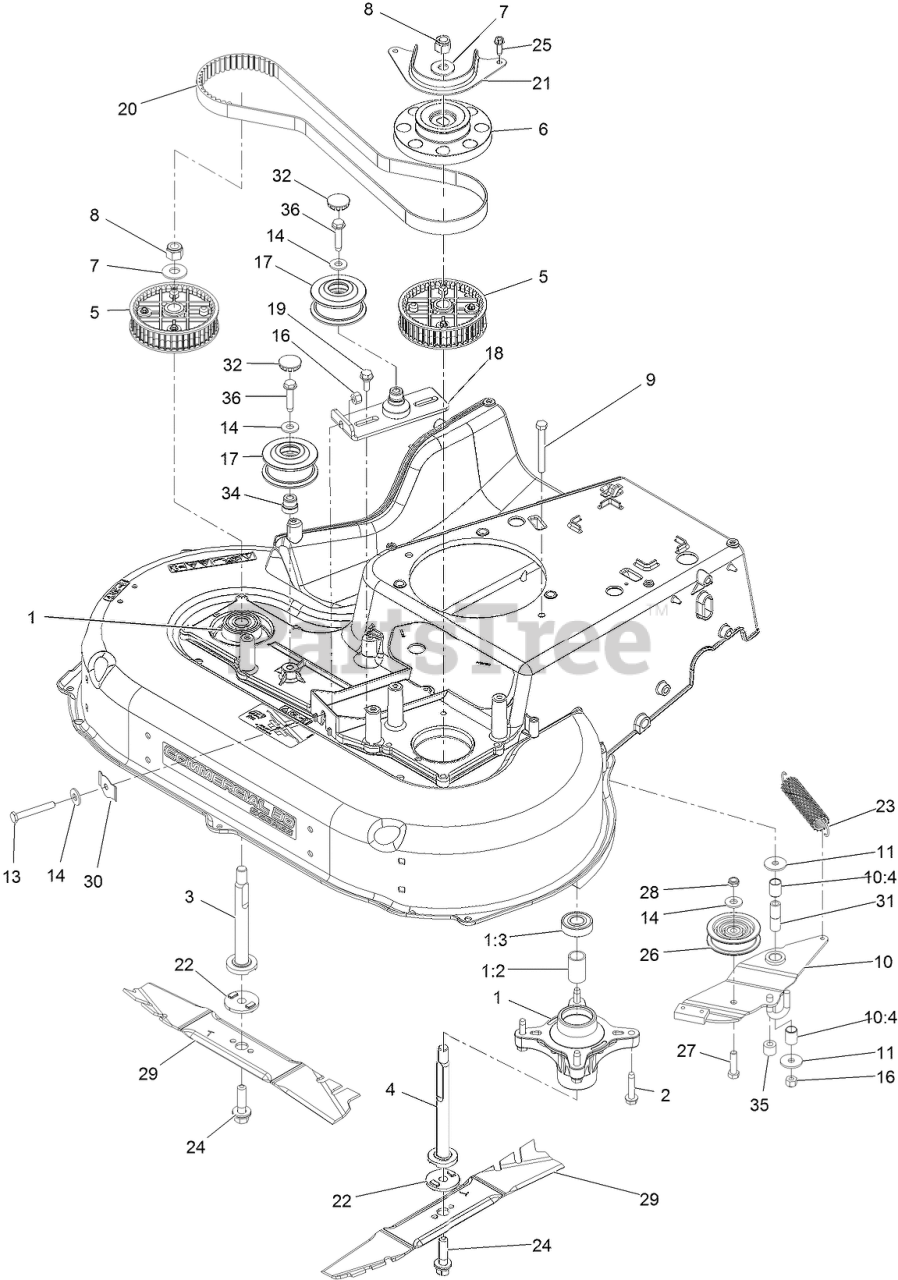

Spindle and Blade Assembly Parts Diagram

  • Title
1

Exmark 121-9107

SPINDLE ASM

$75.99

$

In Stock, Qty 20+

0

1:2

$2.49

$

In Stock, Qty 20+

0

1:3

Exmark 136-5441

BEARING-BALL

$7.99

$

In Stock, Qty 20+

0

2

Exmark 139-1731

SCREW-THD ROLL, HWH

$1.49

$

In Stock, Qty 20+

0

3

Exmark 139-6612

SHAFT-SPINDLE

$28.99

$

In Stock, only 3 left!

0

4

Exmark 139-6613

SHAFT-SPINDLE

$29.99

$

In Stock, Qty 8

0

5

Exmark 121-9100

SPROCKET

$53.99

$

In Stock, Qty 20+

0

6

Exmark 130-6664

PULLEY-BRAKE, SPINDLE

$47.99

$

In Stock, Qty 20+

0

7

Exmark 109-9505

WASHER-SPRING

$5.49

$

In Stock, only 3 left!

0

8

Exmark 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

9

Exmark 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

10

Exmark 136-5903

BRAKE ARM ASM

$67.99

$

In Stock, Qty 20+

0

10:4

Exmark 131-0819

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

0

11

Exmark 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

13

Exmark 9114524

BOLT-TAP, HH
(Superseded to 139-1728)

$1.49

$

In Stock, Qty 20+

0

14

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Exmark 126-7890

PULLEYS AND IDLER KIT

$176.99

$

In Stock, Qty 9

0

18

Exmark 126-6453

BRACKET-IDLER

$61.99

$

In Stock, Qty 10

0

19

Exmark 120-7024

SCREW-SHOULDER,HWH

$2.99

$

In Stock, Qty 20+

0

20

Exmark 120-3335

BELT-SYNCHRONOUS

$85.99

$

In Stock, Qty 20+

0

21

Exmark 120-5245-03

GUIDE-BELT, SPINDLE

$11.99

$

In Stock, Qty 20+

0

22

Exmark 120-5236

ADAPTER-BLADE

$6.99

$

In Stock, Qty 20+

0

23

Exmark 121-5808

SPRING-EXTENSION, BRAKE

$17.99

$

In Stock, Qty 20+

0

24

Exmark 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

25

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

26

Exmark 120-7082

PULLEY-IDLER

$23.99

$

In Stock, Qty 20+

0

27

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

28

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

29

Exmark 116-6358-03

BLADE-ROTARY

$22.99

$

In Stock, Qty 20+

0

30

Exmark 121-2336

SPRING-FLAT

$7.99

$

In Stock, Qty 20+

0

31

Exmark 131-0823

SPACER-BRAKE

$13.99

$

In Stock, Qty 19

0

32

Exmark 126-7151

PLUG-BUTTON

$5.49

$

In Stock, Qty 20+

0

34

Exmark 131-4504

ADAPTER-BORE

$5.49

$

In Stock, Qty 20+

0

35

Exmark 133-1964

HOSE-COOLANT

$2.99

$

In Stock, Qty 20+

0

36

$2.49

$

In Stock, Qty 20+

0
