ECS180CKA30000 - Exmark 30" S-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 406294345 - 408644345) (Rev A) (2020) Handle Assembly Parts Diagram

30" S-Series Walk-Behind Mower, Kawasaki FJ180V

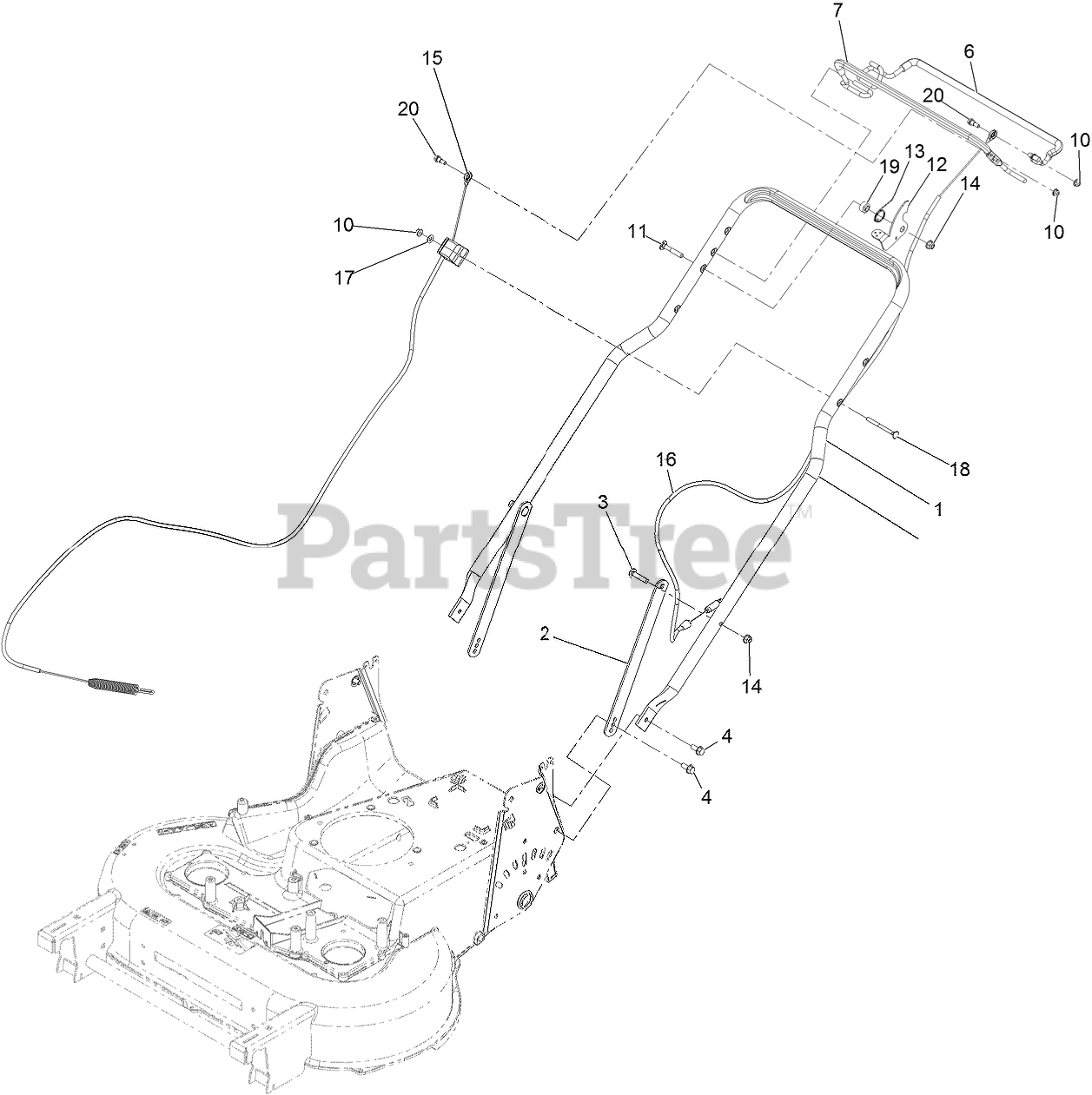

Handle Assembly Parts Diagram

1

Exmark 137-4767-03

HANDLE

$

$

Not available

2

Exmark 116-8208-03

SUPPORT-HANDLE

$6.99

$

Usually ships in 3-6 days

0

3

Exmark 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 10

0

4

Exmark 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

6

Exmark 139-1815

BAIL-TRACTION, COATED

$41.99

$

In Stock, Qty 15

0

7

Exmark 137-4810

BAIL-BBC, COATED

$42.99

$

In Stock, Qty 20+

0

10

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Exmark 112-8876

92-2260
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

12

Exmark 116-2998

LEVER-BBC

$19.99

$

In Stock, only 2 left!

0

13

Exmark 109-9318

SPRING-LEVER, BBC

$6.99

$

In Stock, Qty 16

0

14

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 137-4759

CABLE-BBC

$38.99

$

In Stock, Qty 20+

0

16

Exmark 137-4758

CABLE-TRACTION

$39.99

$

In Stock, Qty 20+

0

17

Exmark 3256-1

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

18

Exmark 92-2267

SCREW-HANDLE

$6.49

$

In Stock, only 4 left!

0

19

Exmark 116-2690

BUSHING-STEPPED

$14.99

$

In Stock, only 3 left!

0

20

Exmark 42-3560

BOLT-SHOULDER

$5.99

$

In Stock, Qty 9

0

99

Exmark 614249

TIE-CABLE

Note: Not illustrated

$1.49

$

In Stock, only 2 left!

0
