ECS180CKA30000 - Exmark 30" S-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 406294345 - 408644345) (Rev A) (2020) Deck and Wheel Assembly Parts Diagram

30" S-Series Walk-Behind Mower, Kawasaki FJ180V

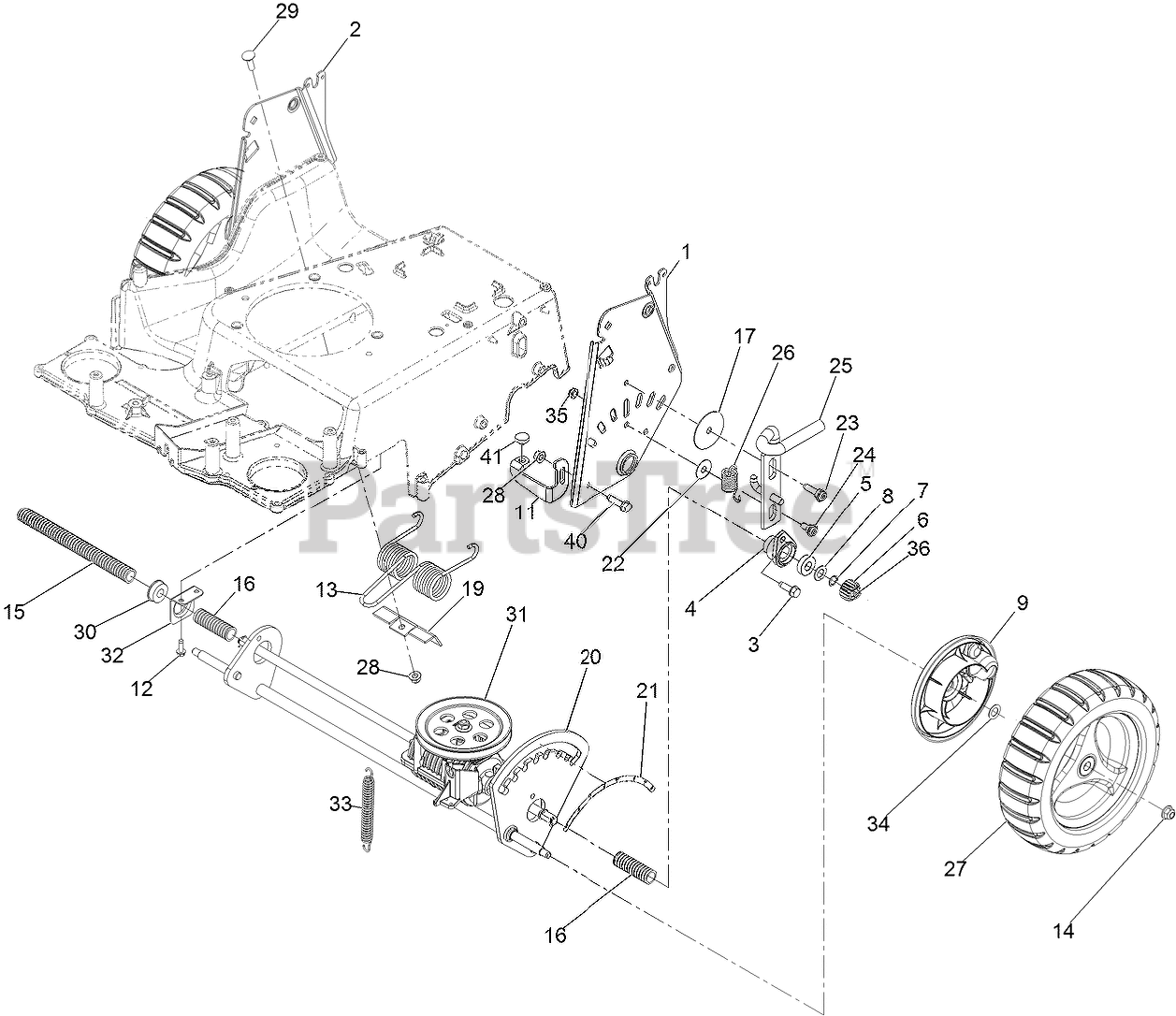

Deck and Wheel Assembly Parts Diagram

  • Title

1

Exmark 121-2394-03

LH HOC PLATE ASM

$43.99

$

Usually ships in 3-6 days

0

2

Exmark 121-2395-03

RH HOC PLATE ASM

$43.99

$

Usually ships in 3-6 days

0

3

Exmark 701243

SCREW-THD ROLL, HWH

$2.99

$

In Stock, Qty 20+

0

4

Exmark 136-5929

RETAINER-BEARING

$8.99

$

In Stock, only 1 left!

0

5

Exmark 133-2603

BEARING-BALL

$26.99

$

In Stock, Qty 20+

0

6

Exmark 131-5399

GEAR-PINION, 15T

$5.49

$

In Stock, Qty 20+

0

7

Exmark 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

8

Exmark 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

9

Exmark 126-7818

COVER,GEAR

$5.99

$

In Stock, Qty 6

0

11

Exmark 131-5344

BRACKET-STOP, ADJUSTABLE

$15.99

$

In Stock, only 1 left!

0

12

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

13

Exmark 121-2368

SPRING-TORSION

$28.99

$

In Stock, only 1 left!

0

14

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 121-5799

CONDUIT-CONVOLUTED

$1.49

$

In Stock, Qty 20+

0

16

Exmark 121-5800

CONDUIT-CONVOLUTED

$1.49

$

In Stock, Qty 14

0

17

Exmark 125-2540

WASHER-PLAIN

$2.99

$

In Stock, only 1 left!

0

19

Exmark 121-2397

BRACKET

$14.99

$

Usually ships in 3-6 days

0

20

Exmark 131-4516

AXLE-REAR

$115.99

$

In Stock, Qty 5

0

21

Exmark 116-7127

DECAL-HOC, REAR

$6.99

$

In Stock, only 1 left!

0

22

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 13

0

23

Exmark 119-2267

SCREW-SHOULDER, BHTF

$5.49

$

In Stock, only 2 left!

0

24

Exmark 120-9471

BOLT-SHOULDER

$5.49

$

In Stock, only 2 left!

0

25

Exmark 139-1737

LOCK-HEIGHT, ADJ

$26.99

$

Usually ships in 3-6 days

0

26

Exmark 120-9452

SPRING-EXTENSION

$7.99

$

In Stock, only 1 left!

0

27

Exmark 126-7346

WHEEL ASM, 10.5 W/GEAR

$120.99

$

In Stock, Qty 12

0

28

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

29

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

30

Exmark 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 18

0

31

Exmark 131-9667

TRANSMISSION KIT

$222.99

$

In Stock, Qty 10

0

32

Exmark 138-3233

MOUNT-BEARING

$5.49

$

In Stock, only 3 left!

0

33

Exmark 120-7027

SPRING-EXTENSION

$8.99

$

In Stock, Qty 13

0

34

Exmark 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 7

0

35

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

36

Exmark 130-2369

PIN-SNAP

$1.49

$

In Stock, Qty 20+

0

40

Exmark 32144-49

SCREW-HWHTF

$5.49

$

In Stock, only 1 left!

0

41

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0
