ECS180CKA30000 - Exmark 30" S-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 402082300 - 404314158) (2018) Handle Assembly-Type B Parts Diagram

30" S-Series Walk-Behind Mower, Kawasaki FJ180V

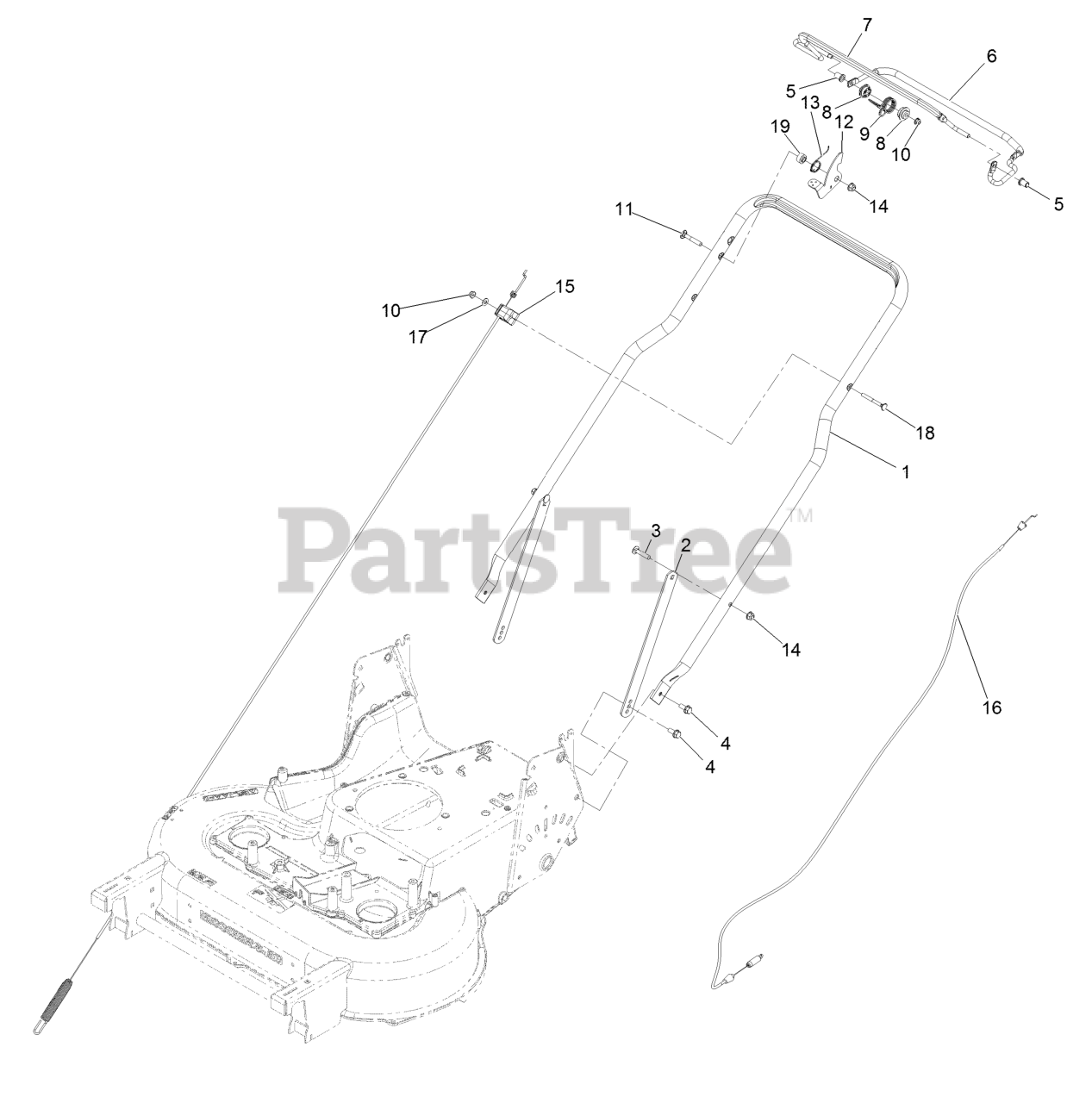

Handle Assembly-Type B Parts Diagram

  • Title

1

Exmark 120-7086-03

Handle

$96.99

$

Usually ships in 3-6 days

0

2

Exmark 116-8208-03

Support-Handle

$6.49

$

In Stock, only 2 left!

0

3

Exmark 3230-4

Bolt-Carriage 5/16-18 X 1 1/2

$3.99

$

In Stock, Qty 6

0

4

Exmark 116-7230

Screw-HHF

$1.49

$

In Stock, Qty 20+

0

5

Exmark 116-1478

Bushing-Handlebar

$6.49

$

In Stock, only 2 left!

0

6

Exmark 116-7907

Bail-Drive Coated

$50.99

$

In Stock, only 2 left!

0

7

Exmark 109-8442

Bail

$51.99

$

In Stock, only 1 left!

0

8

Exmark 109-8457

Bushing-Spring, Pivot

$6.49

$

In Stock, only 3 left!

0

9

Exmark 116-5594

Spring-Return, BBC

$2.99

$

In Stock, Qty 11

0

10

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

11

Exmark 112-8876

Bolt-Carriage 5/16-18 X 2
(Superseded to 92-2260)

$3.99

$

In Stock, only 2 left!

0

12

Exmark 116-2998

Lever-BBC

$18.99

$

Usually ships in 3-6 days

0

13

Exmark 109-9318

Spring-Lever, BBC

$6.49

$

In Stock, Qty 9

0

14

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

15

Exmark 133-2622

Cable-Brake, 30" 2-Bail

$42.99

$

In Stock, only 3 left!

0

16

Exmark 126-1664

Cable-Traction

$33.99

$

In Stock, Qty 20+

0

17

Exmark 3256-1

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

18

Exmark 92-2270

Screw-Handle

$8.49

$

In Stock, only 2 left!

0

19

Exmark 116-2690

Bushing-Stepped

$13.99

$

In Stock, only 4 left!

0

99

Exmark 614249

Tie-Cable

$1.49

$

In Stock, Qty 6

0
