ECS180CKA30000 - Exmark 30" S-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 402082300 - 404314158) (2018) Handle Assembly-Type A Parts Diagram

30" S-Series Walk-Behind Mower, Kawasaki FJ180V

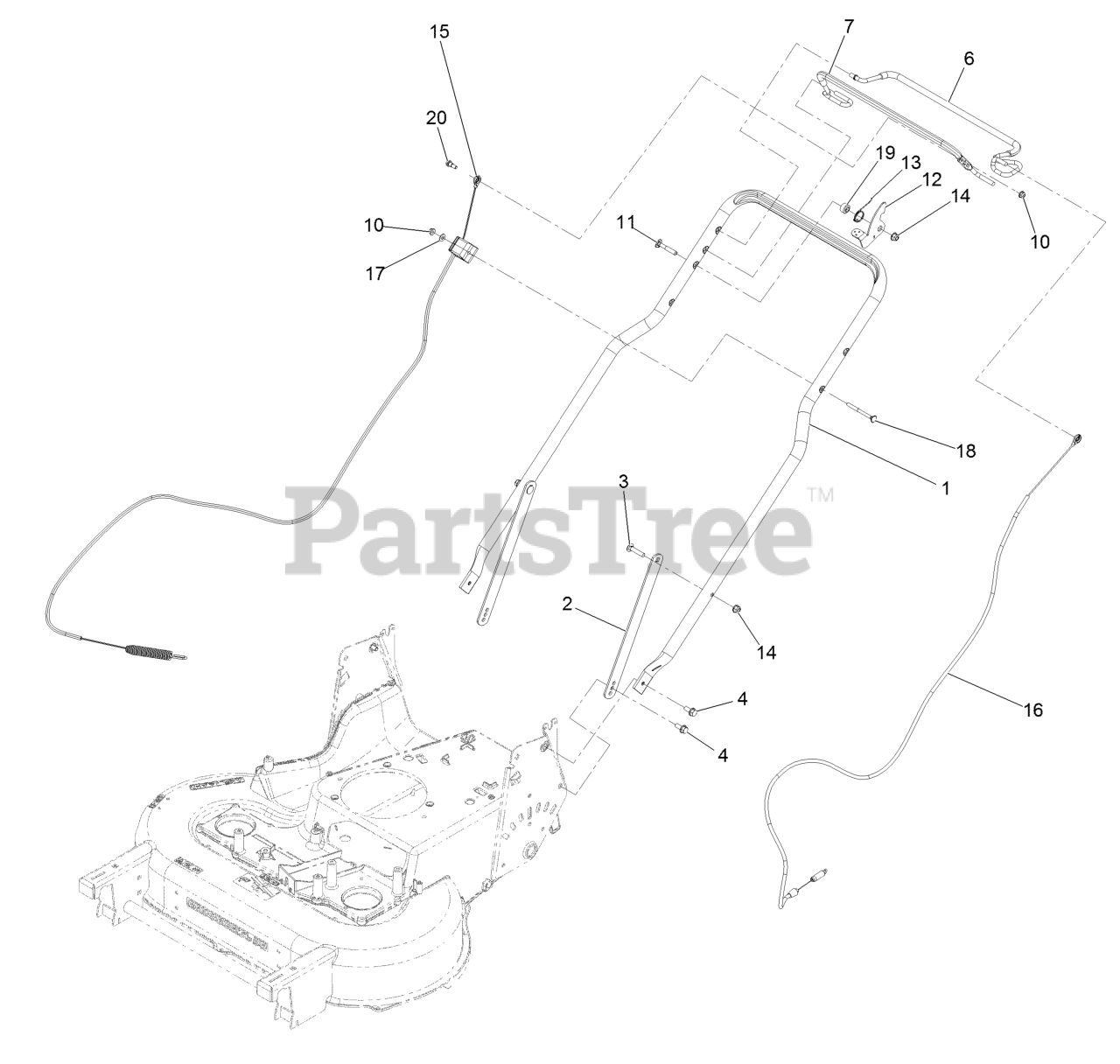

Handle Assembly-Type A Parts Diagram

  • Title

1

Exmark 137-4767-03

Handle

$

$

Not available

2

Exmark 116-8208-03

Support-Handle

$6.49

$

In Stock, only 2 left!

0

3

Exmark 3230-4

Bolt-Carriage 5/16-18 X 1 1/2

$3.99

$

In Stock, Qty 6

0

4

Exmark 116-7230

Screw-HHF

$1.49

$

In Stock, Qty 20+

0

6

Exmark 137-4811

Bail-Traction, Coated

$39.99

$

In Stock, Qty 5

0

7

Exmark 137-4810

Bail-BBC, Coated

$39.99

$

Usually ships in 3-6 days

0

10

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

11

Exmark 112-8876

Bolt-Carriage 5/16-18 X 2
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 5

0

12

Exmark 116-2998

Lever-BBC

$18.99

$

Usually ships in 3-6 days

0

13

Exmark 109-9318

Spring-Lever, BBC

$6.49

$

In Stock, Qty 9

0

14

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

15

Exmark 137-4759

Cable-BBC

$36.99

$

Usually ships in 3-6 days

0

16

Exmark 137-4758

Cable-Traction

$37.99

$

In Stock, Qty 5

0

17

Exmark 3256-1

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

18

Exmark 92-2267

Screw-Handle

$6.49

$

In Stock, only 4 left!

0

19

Exmark 116-2690

Bushing-Stepped

$13.99

$

In Stock, only 1 left!

0

20

Exmark 42-3560

Bolt-Shoulder

$5.99

$

In Stock, only 3 left!

0

99

Exmark 614249

Tie-Cable

$1.49

$

In Stock, Qty 6

0
