ECS180CKA30000 - Exmark 30" S-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

30" S-Series Walk-Behind Mower, Kawasaki FJ180V

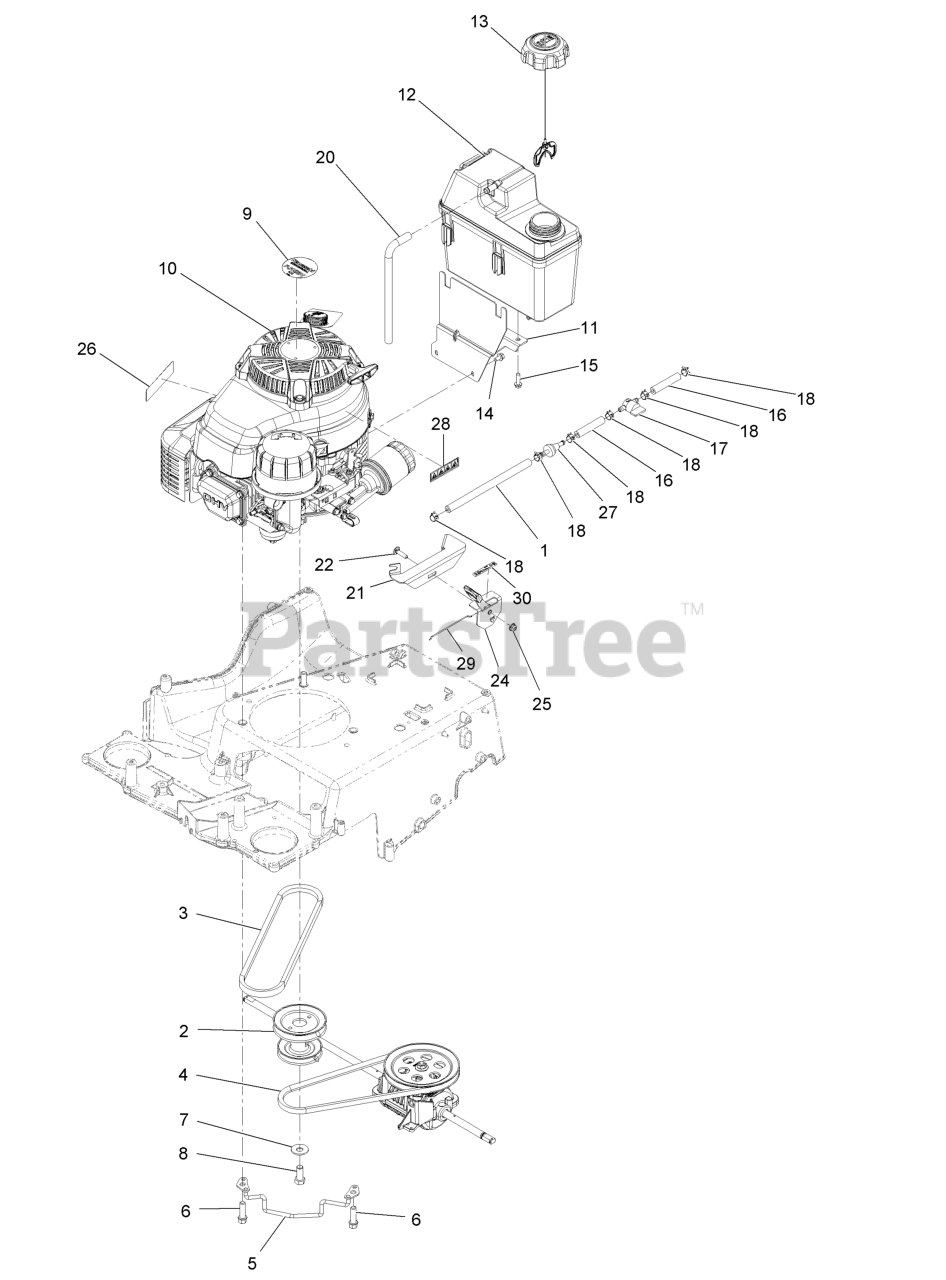

Engine Assembly Parts Diagram

  • Title
1

Exmark 119-1892

Hose-Fuel

$11.99

$

In Stock, only 1 left!

0

2

Exmark 116-7013

Pulley-Engine
(Superseded to 137-9177)

$51.99

$

In Stock, Qty 7

0

3

$19.99

$

In Stock, Qty 20+

0

4

Exmark 116-7116

Belt
(Superseded to 116-7116-SL)

$30.99

$

Usually ships in 3-6 days

0

5

Exmark 120-7077

Guide-Belt
(Superseded to 139-1734)

$23.99

$

In Stock, Qty 10

0

6

Exmark 95-1727

Screw-HWH 3/8-16 X 1 1/4 Taptite

$2.99

$

In Stock, Qty 20+

0

7

Exmark 3290-465

Washer-Spring Disc

$3.49

$

In Stock, Qty 20+

0

8

Exmark 3212-4

Screw-HH 7/16-20 X 1

$3.49

$

In Stock, only 2 left!

0

9

Exmark 109-6528

Decal-Recoil

$6.49

$

In Stock, only 2 left!

0

10

Engine-Kawasaki Fj180V

$

$

Not available

11

Exmark 115-0954-03

Mount-Tank

$43.99

$

In Stock, only 3 left!

0

12

Exmark 114-0280

Tank-Fuel

$144.99

$

In Stock, only 4 left!

0

13

Exmark 137-4127

Cap-Fuel

$23.99

$

In Stock, only 2 left!

0

14

Exmark 116-8929

Screw-HWH

$1.99

$

In Stock, Qty 9

0

15

Exmark 46-8091

Screw-HWH 1/4-10 X .82 Plastite

$3.99

$

In Stock, Qty 20+

0

16

Exmark 109-0304

Hose-Fuel Line 2 1/2"

$2.49

$

In Stock, Qty 11

0

17

Exmark 1-603770

Valve-Fuel

$8.49

$

In Stock, Qty 7

0

18

Exmark 2412-98

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

20

Exmark 115-0962

Hose-Vent, Canister

$8.99

$

In Stock, only 2 left!

0

21

Exmark 130-6440-03

Bracket-Mount, Throttle

$33.99

$

In Stock, only 3 left!

0

22

Exmark 3229-30

Bolt-Carriage 1/4-20 X 1

$1.49

$

In Stock, Qty 20+

0

24

Exmark 130-9655

Control-Throttle

$43.99

$

In Stock, only 4 left!

0

25

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

26

Exmark 117-2718

Decal-Arrester, Spark

$7.99

$

In Stock, only 1 left!

0

27

Exmark 71-9280

Filter-Fuel
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 13

0

28

Exmark 116-9313

Decal-Warning, Engine

$1.99

$

Usually ships in 3-6 days

0

29

Exmark 130-9654

Wire-Control

$2.99

$

In Stock, Qty 20+

0

30

Exmark 130-9656

Decal-Throttle, Choke

$2.99

$

In Stock, only 2 left!

0
