ECS180CKA30000 - Exmark 30" S-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 402082300 - 404314158) (2018) Deck, Frame, and Chute Assembly Parts Diagram

30" S-Series Walk-Behind Mower, Kawasaki FJ180V

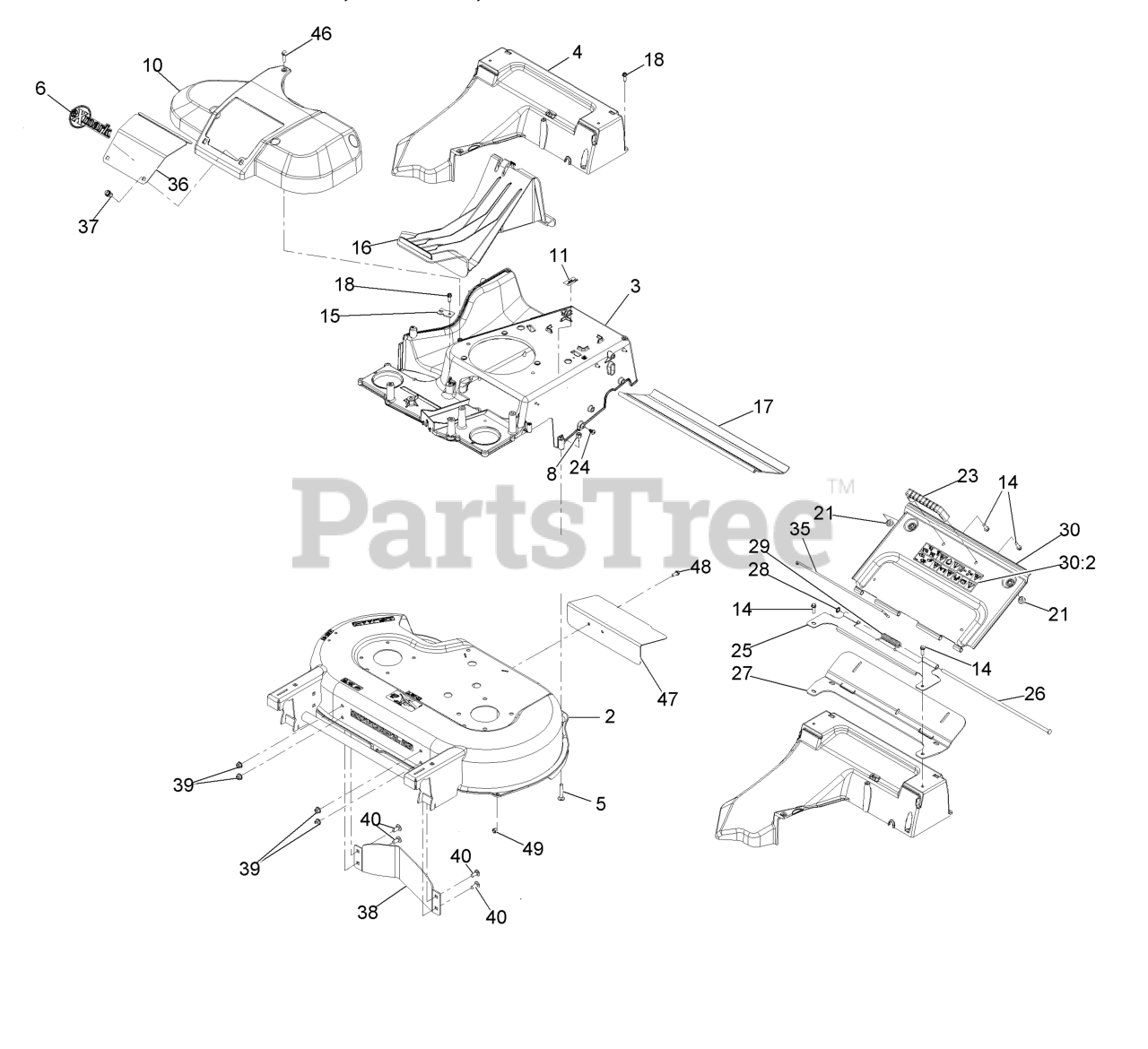

Deck, Frame, and Chute Assembly Parts Diagram

  • Title

2

Exmark 126-7582

Deck-30, W/Decals

$489.99

$

Usually ships in 3-6 days

0

3

Exmark 136-5908-01

Frame
(Superseded to 140-3978)

$184.99

$

In Stock, Qty 5

0

4

Exmark 133-8177

Chute

$58.99

$

Usually ships in 3-6 days

0

5

Exmark 3230-5

Bolt-Carriage 5/16-18 X 1 3/4

$0.99

$

Usually ships in 3-6 days

0

6

Exmark 126-6575

Decal-Exmark Logo

$5.99

$

In Stock, only 1 left!

0

8

Exmark 3296-29

Nut-Nyloc 5/16-18

$2.49

$

In Stock, Qty 20+

0

10

Exmark 121-5810

Cover-Belt
(Superseded to 139-5406)

$36.99

$

In Stock, only 1 left!

0

11

Exmark 126-4345

Decal-Patent

$1.99

$

In Stock, Qty 9

0

14

Exmark 46-8091

Screw-HWH 1/4-10 X .82 Plastite

$3.99

$

In Stock, Qty 20+

0

15

Exmark 107-7497

Bracket-Cable, Traction
(Superseded to 138-3224)

$2.99

$

In Stock, Qty 6

0

16

Exmark 120-5225

Plug-Mulch

$29.99

$

In Stock, only 3 left!

0

17

Exmark 121-5841

Shield-Trailing

$22.99

$

In Stock, only 1 left!

0

18

Exmark 49-2040

Screw-HWH 1/4-20 X 3/4 Tf

$2.49

$

In Stock, Qty 20+

0

21

Exmark 1-513658

Bumper

$6.49

$

In Stock, Qty 11

0

23

Exmark 65-5100

Handle-Door

$9.99

$

In Stock, Qty 8

0

24

Exmark 117-1092

Screw-PTH

$1.49

$

In Stock, Qty 13

0

25

Exmark 116-6351-03

Bracket-Hinge

$39.99

$

In Stock, only 1 left!

0

26

Exmark 116-6933

Pin-Hinge

$8.99

$

In Stock, Qty 5

0

27

Exmark 116-6229

Seal-Door

$22.99

$

In Stock, only 2 left!

0

28

Exmark 32151-72

Ring-Retaining

$1.99

$

In Stock, only 2 left!

0

29

Exmark 116-7573

Spring-Torsion, Cover

$5.49

$

In Stock, Qty 8

0

30

Exmark 116-8355

Rear Door ASM

$66.99

$

In Stock, only 1 left!

0

30:2

Exmark 116-7583

Decal-Warning

$17.99

$

In Stock, Qty 11

0

35

Exmark 116-6966

Clip-Seal

$6.49

$

In Stock, only 2 left!

0

36

Exmark 121-5793-03

Door-Access

$16.99

$

In Stock, Qty 7

0

37

Exmark 121-5840

Fastener

$6.49

$

In Stock, Qty 20+

0

38

Exmark 130-2352-01

Baffle-Control

$27.99

$

Usually ships in 3-6 days

0

39

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

40

Exmark 3274-55

Screw-Button Head 5/16-18 X 3/4

$5.49

$

In Stock, Qty 13

0

46

Exmark 32144-86

Screw-HWH 1/4-20 X 1 Tf

$1.49

$

In Stock, Qty 20+

0

47

Exmark 126-6381-01

Deflector-Rear, 30" Deck

$21.99

$

Usually ships in 3-6 days

0

48

Exmark 32144-85

Screw-HWH

$1.99

$

In Stock, Qty 20+

0

49

Exmark 3296-42

Nut-Nyloc 1/4-20

$0.99

$

In Stock, Qty 12

0

99

Exmark 125-5072

Frame Plate Kit

$45.99

$

Usually ships in 3-6 days

0

99:1

Exmark 125-2542

Plate-Frame

$40.99

$

Usually ships in 3-6 days

0

99:2

Exmark 3229-3

Bolt-Carriage 1/4-20 X 1 1/4

$5.49

$

Usually ships in 3-6 days

0

99:3

Exmark 3296-42

Nut-Nyloc 1/4-20

$0.99

$

In Stock, Qty 12

0
