ECS180CKA30000 - Exmark 30" S-Series Walk-Behind Mower, Kawasaki FJ180V (SN: 402082300 - 404314158) (2018) Deck and Wheel Assembly Parts Diagram

30" S-Series Walk-Behind Mower, Kawasaki FJ180V

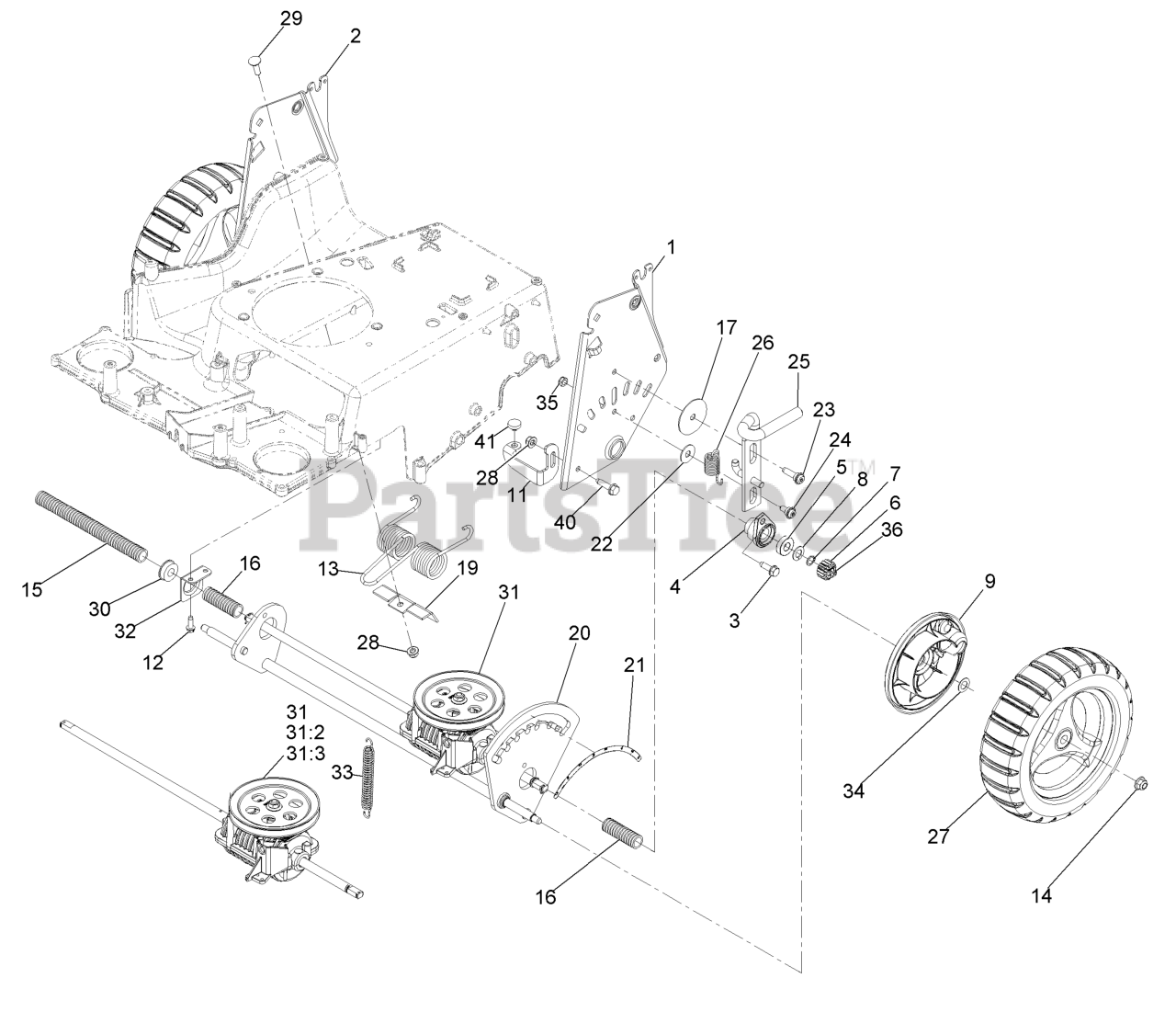

Deck and Wheel Assembly Parts Diagram

  • Title

1

Exmark 121-2394-03

LH HOC Plate ASM

$43.99

$

Usually ships in 3-6 days

0

2

Exmark 121-2395-03

RH HOC Plate ASM

$43.99

$

Usually ships in 3-6 days

0

3

Exmark 701243

Screw-HWH 5/16-18 X 1 Tf

$2.99

$

In Stock, Qty 20+

0

4

Exmark 136-5929

Retainer-Bearing

$8.99

$

In Stock, Qty 17

0

5

Exmark 133-2603

Bearing-Ball

$26.99

$

In Stock, Qty 20+

0

6

Exmark 131-5399

Gear-Pinion, 15T

$5.49

$

In Stock, Qty 20+

0

7

Exmark 32151-61

Ring-Retaining

$2.99

$

In Stock, Qty 20+

0

8

Exmark 110-7191

Washer-Thrust

$2.99

$

In Stock, Qty 20+

0

9

Exmark 126-7818

Cover,Gear

$6.49

$

In Stock, only 2 left!

0

11

Exmark 131-5344

Bracket-Stop, Adjustable

$15.99

$

In Stock, only 1 left!

0

12

Exmark 49-2040

Screw-HWH 1/4-20 X 3/4 Tf

$2.49

$

In Stock, Qty 20+

0

13

Exmark 121-2368

Spring-Torsion

$28.99

$

In Stock, only 1 left!

0

14

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

15

Exmark 121-5799

Conduit-Convoluted

$1.49

$

In Stock, Qty 20+

0

16

Exmark 121-5800

Conduit-Convoluted

$1.49

$

In Stock, Qty 12

0

17

Exmark 125-2540

Washer-Plain

$2.99

$

Usually ships in 3-6 days

0

19

Exmark 121-2397

Bracket

$14.99

$

Usually ships in 3-6 days

0

20

Exmark 131-4516

Axle-Rear

$115.99

$

In Stock, Qty 5

0

21

Exmark 116-7127

Decal-HOC, Rear

$6.99

$

In Stock, only 1 left!

0

22

Exmark 52-2860

Washer

$1.49

$

In Stock, Qty 20+

0

23

Exmark 119-2267

Screw-Button Head 5/16-18 X 1 Tf

$5.49

$

In Stock, Qty 20+

0

24

Exmark 120-9471

Screw-Shoulder Bh 5/16-18 X 1/2 Tf Torx

$5.49

$

In Stock, only 2 left!

0

25

Exmark 120-7090

Lock-Height, Adjust

$36.99

$

Usually ships in 3-6 days

0

26

Exmark 120-9452

Spring-Extension

$7.99

$

In Stock, only 1 left!

0

27

Exmark 126-7346

Wheel ASM, 10.5 W/Gear

$123.99

$

In Stock, Qty 10

0

28

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

29

Exmark 3230-2

Bolt-Carriage 5/16-18 X 1

$1.49

$

In Stock, Qty 14

0

30

Exmark 104-8699

Bearing-Ball

$4.99

$

In Stock, Qty 20+

0

31

Exmark 131-9667

Transmission Kit

$222.99

$

In Stock, Qty 20+

0

31:2

Exmark 130-2369

Pin-Snap

$1.49

$

In Stock, Qty 20+

0

31:3

Exmark 32151-61

Ring-Retaining

$2.99

$

In Stock, Qty 20+

0

32

Exmark 120-7008

Mount-Bearing
(Superseded to 138-3233)

$5.49

$

In Stock, Qty 14

0

33

Exmark 120-7027

Spring-Extension

$8.99

$

In Stock, Qty 20+

0

34

Exmark 36-4780

Washer

$7.99

$

In Stock, Qty 20+

0

35

Exmark 3296-47

Nut-Nyloc 5/16-18 Thin

$3.99

$

In Stock, Qty 20+

0

36

Exmark 130-2369

Pin-Snap

$1.49

$

In Stock, Qty 20+

0

40

Exmark 32144-49

Screw-HWH 5/16-18 1 1/4 Tf

$5.49

$

In Stock, only 1 left!

0

41

Exmark 1-513658

Bumper

$6.49

$

In Stock, Qty 9

0
