ECP 21400R2 (80414) - Snapper 21" Walk-Behind Mower, 4hp Rear Wheel Brackets, Latches Parts Diagram

21" Walk-Behind Mower, 4hp

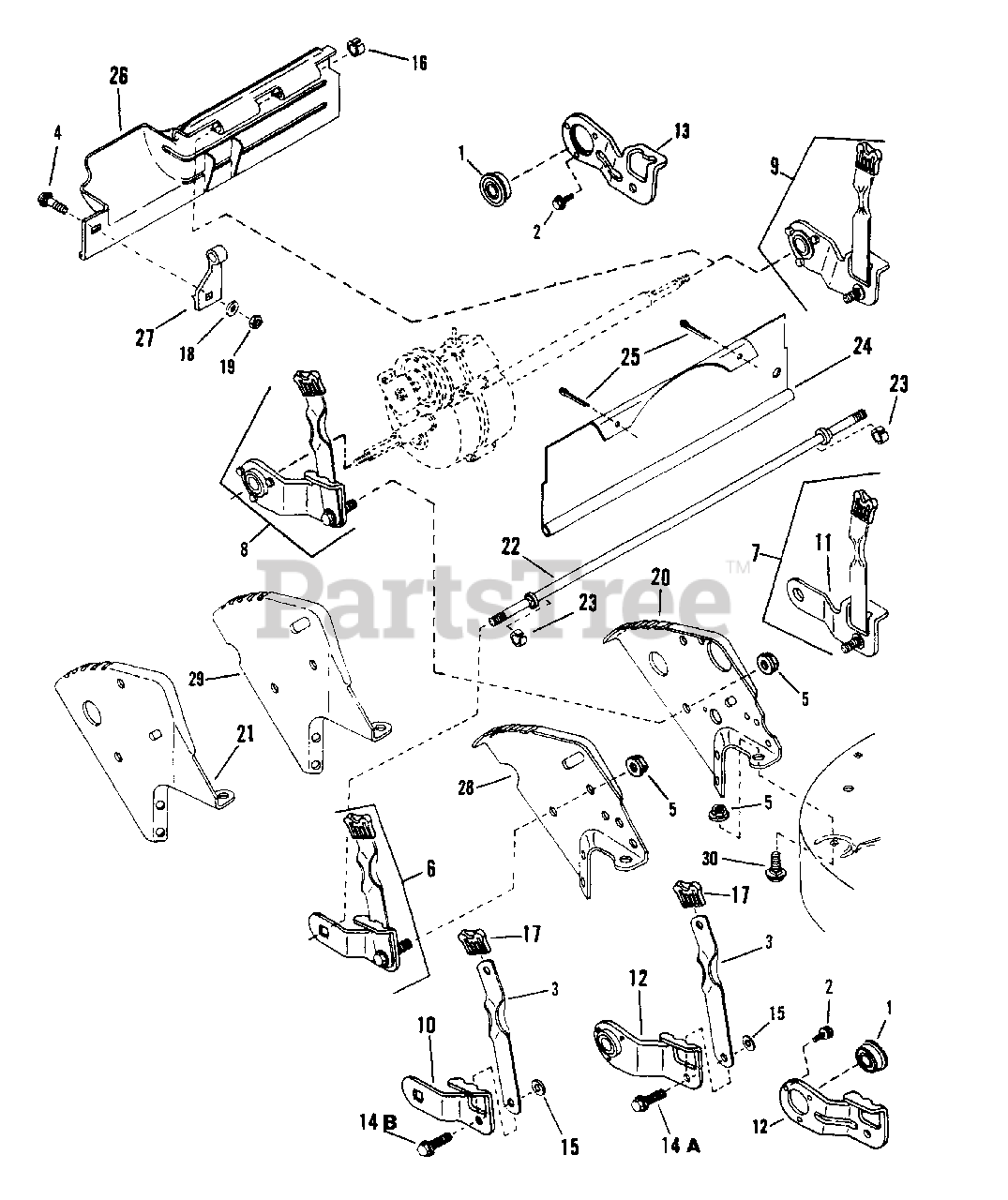

Rear Wheel Brackets, Latches Parts Diagram

  • Title

1

Snapper 7046983

BEARING
(Superseded to 7046983YP)

Note: Was 18767

$22.99

$

In Stock, Qty 6

0

2

Snapper 7091012

SCREW, #10-32 x 3/8" Self-Tapping
(Superseded to 703967)

$3.49

$

In Stock, Qty 20+

0

3

Snapper 7035717

LATCH, Height Adjusting
(Superseded to 7035717YP)

Note: Was 19218

$6.99

$

In Stock, Qty 10

0

4

Snapper 7091604

BOLT, 1/4-20 x 1/2" Short Neck Carriage (Gr. 5)
(Superseded to 703978)

Note: Was 90005

$3.99

$

In Stock, Qty 20+

0

5

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7052909

ASSEMBLY, Wheel Arm (Square Hole, Front Left & Rear Right)
(Superseded to 7052909YP)

Note: Was 51954 (Push Models) (Includes Items 3,10,14A,15 & 17)

$22.99

$

Usually ships in 2-12 days

0

7

Snapper 7052908

ASSEMBLY, Wheel Arm (Round Hole, Front Right & Rear Left)
(Superseded to 7052908YP)

Note: Was 51955 (Push Models) (Includes Items 3,11,14A,15 8 17)

$25.99

$

Usually ships in 2-12 days

0

8

Snapper 7054246

ASSEMBLY, Wheel Arm
(Superseded to 7054246YP)

Note: Was 51814 (For Rear Right Self-Propelled Models);(Includes Items 1,2,3,12,14B,15 & 17)

$

$

Not available

9

Snapper 7054247

ASSEMBLY, Wheel Arm
(Superseded to 7054247YP)

Note: Was 51815 (For Rear Left Self-Propelled Models);(Includes Items 1,2,3,13,14B,15 & 17)

$40.99

$

In Stock, Qty 9

0

10

Snapper 7031016

ARM, (Square Axle End)
(Superseded to 7031016YP)

$7.99

$

In Stock, only 3 left!

0

11

Snapper 7031017

ARM, (Round Axle End)
(Superseded to 7031017YP)

$14.99

$

Usually ships in 2-12 days

0

12

Snapper 7032722

ARM, Wheel Rear Right
(Superseded to 7032722YP)

Note: (For Self-Propelled Models)

$

$

Not available

13

Snapper 7032723

ARM, Wheel Rear Left
(Superseded to 7032723YP)

Note: (For Self-Propelled Models)

$6.49

$

In Stock, Qty 8

0

14A

Snapper 7011078

BOLT, 5/16-18 x 1" Shoulder
(Superseded to 703840)

Note: (For Self-Propelled Models)

$5.49

$

In Stock, only 2 left!

0

14B

Snapper 7015761

BOLT, 5/16-18 x 3/4" Shoulder
(Superseded to 703839)

Note: (For Push Models)

$5.49

$

In Stock, only 4 left!

0

15

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7023791

RING
(Superseded to 704009)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 7027702

GRIP, Latch
(Superseded to 7103793YP)

$4.49

$

In Stock, Qty 9

0

18

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 7

0

19

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7033846

BRACKET, Right Rear Wheel
(Superseded to 7033846YP)

Note: (For Self-Propelled Models)

$41.99

$

Usually ships in 2-12 days

0

21

Snapper 7036242

BRACKET, Left Rear Wheel
(Superseded to 7036242YP)

Note: (For Self-Propelled Models)

$21.99

$

In Stock, only 1 left!

0

22

Snapper 7021119

AXLE,
(Superseded to 7021119YP)

Note: (Rear - Push Models, also Front Axle on all Models)

$22.99

$

In Stock, Qty 18

0

23

Snapper 7011780

RING
(Superseded to 7011780YP)

Note: (For Push Models)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper 7026166

GUARD, Rear Foot

Note: Was 37765 (Push Models)

$

$

Not available

25

Snapper 7091809

PIN, 1/8 x 1-1/2" Cotter
(Superseded to 7091809YP)

Note: Was 90297

$4.49

$

Usually ships in 2-12 days

0

26

Snapper 7019522

GUARD, Rear Foot
(Superseded to 7029008YP)

Note: (For Self-Propelled Models)

$32.99

$

In Stock, Qty 12

0

Snapper 7017010

GUARD, Rear Foot
(Superseded to 7042918YP)

Note: (For European Self-Propelled Models)

$21.99

$

In Stock, Qty 15

0

27

Snapper 7012616

SUPPORT, Foot Guard
(Superseded to 7012616YP)

$4.99

$

In Stock, Qty 6

0

28

Snapper 7036050

BRACKET, Right Rear Wheel
(Superseded to 7036050YP)

Note: (For Push Models)

$18.99

$

In Stock, only 1 left!

0

29

Snapper 7036049

BRACKET, Left Rear Wheel
(Superseded to 7036049YP)

Note: (For Push Models)

$27.99

$

Usually ships in 2-12 days

0

30

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 16

0
