ECLP 21602KWV (7800048) - Snapper 21" Walk-Behind Mower, 6hp WHEELS, FRONT & REAR Parts Diagram

21" Walk-Behind Mower, 6hp

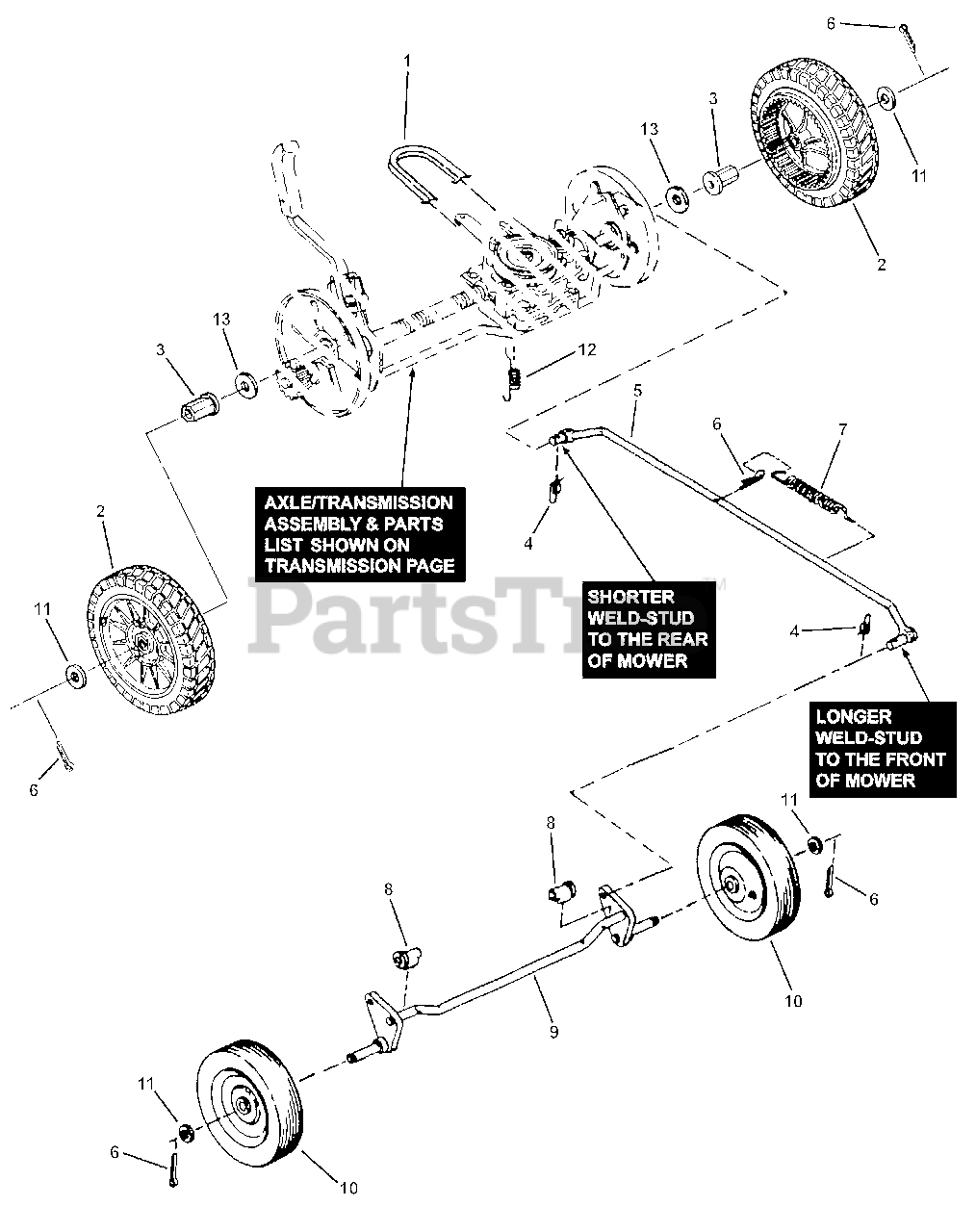

WHEELS, FRONT & REAR Parts Diagram

  • Title

1

Snapper 7029492

BELT, Traction Drive, Sect. 3L, 33.20" effective length
(Superseded to 7029492YP)

Note: engine/transmission

$22.99

$

In Stock, Qty 15

0

2

Snapper 7074630

WHEEL, 9.0 x 2.0 (Rear Drive)
(Superseded to 7104781YP)

Note: includes 73618 bushing

$40.99

$

In Stock, only 1 left!

0

3

Snapper 7073618

BUSHING, Wheel (PM)
(Superseded to 7073618YP)

$7.99

$

In Stock, only 1 left!

0

4

Snapper 7091593

COTTER PIN, 3/8" Self Locking
(Superseded to 703355)

$3.99

$

In Stock, Qty 14

0

5

Snapper 7041744

WELDMENT, Tie Bar
(Superseded to 7041744YP)

$85.99

$

Usually ships in 2-12 days

0

6

Snapper 7091598

COTTER PIN, 1/8 x 3/4"
(Superseded to 703958)

$4.49

$

In Stock, only 4 left!

0

7

Snapper 7024751

SPRING, Tie Bar
(Superseded to 7024751YP)

$12.99

$

Usually ships in 2-12 days

0

8

Snapper 7024558

BUSHING, Front Axle
(Superseded to 7024558YP)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 7041739

WELDMENT, Front Axle

$

$

Not available

10

Snapper 7042814

WHEEL, 8.0 x 2.0 (Front)
(Superseded to 7042814YP)

$61.99

$

Usually ships in 2-12 days

0

11

Snapper 7091733

WASHER, .5 x 1.0 x .03 Flat
(Superseded to 7091733YP)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7046522

*SPRING, Clutch
(Superseded to 7046522YP)

$9.49

$

Usually ships in 2-12 days

0

13

Snapper 7091194

* WASHER, 17/32" Flat
(Superseded to 7091194YP)

$4.49

$

Usually ships in 2-12 days

0
