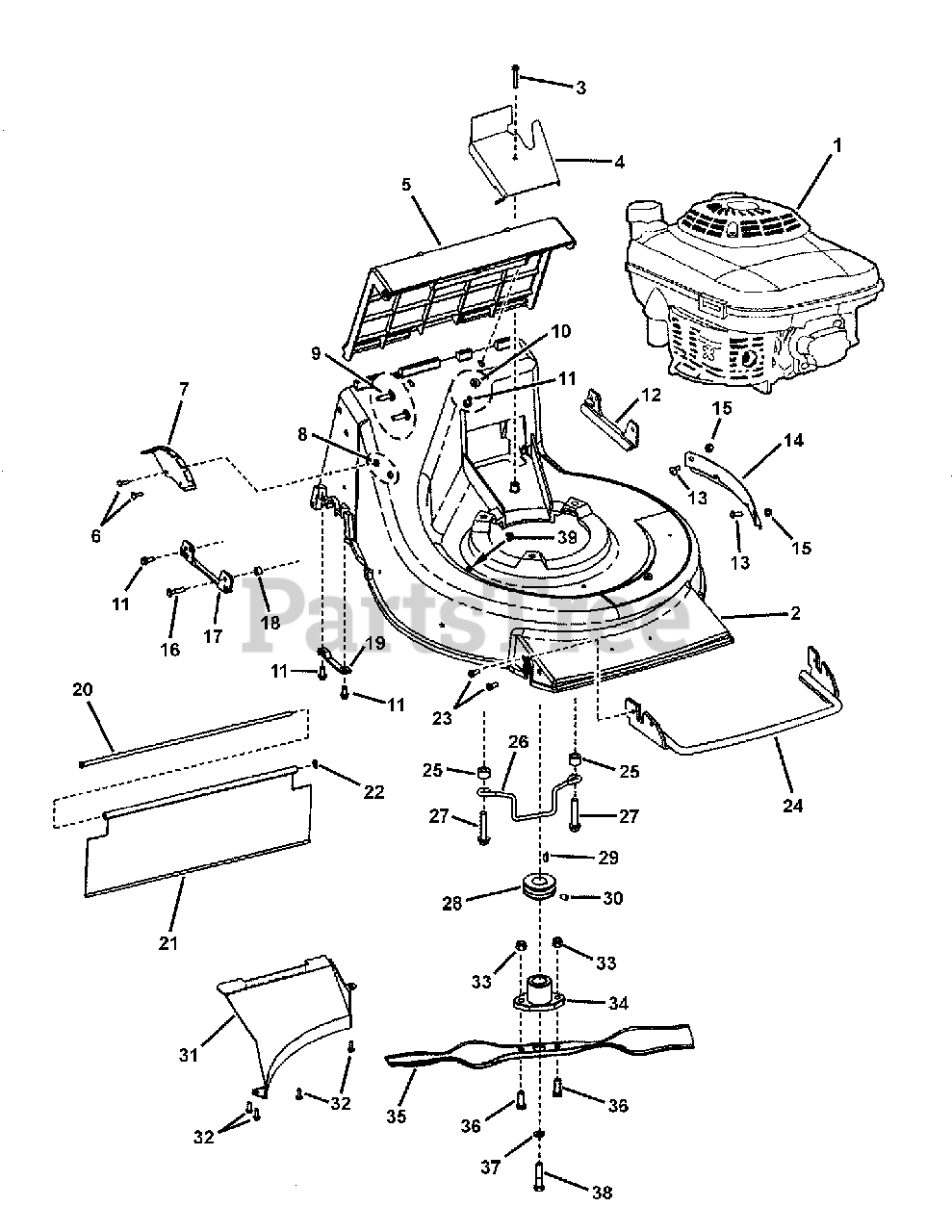

ECLP 21602KWV (7800048) - Snapper 21" Walk-Behind Mower, 6hp ENGINE, CUTTING DECK, BLADE Parts Diagram

21" Walk-Behind Mower, 6hp

ENGINE, CUTTING DECK, BLADE Parts Diagram

  • Title

1

Snapper FJ180V-DS54-R

* ENGINE, 6.0 H.P. Kawasaki OHV, Euro, Mod. FJ180V-DS54-R

$

$

Currently unavailable

2

Snapper 7043888

DECK, 21" Cast Aluminum Short (Red)
(Superseded to 7061962YP)

$1025.99

$

Usually ships in 2-12 days

0

3

Snapper 7091201

SCREW, #10-24 x 1-1/2" Slotted Hex Washer Head Self-Tap
(Superseded to 7091201YP)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 7074124

BELT COVER, Commercial Metal B&S
(Superseded to 7074124YP)

$34.99

$

Usually ships in 2-12 days

0

5

Snapper 7052881

ASSEMBLY, Discharge Door
(Superseded to 7052881YP)

$75.99

$

In Stock, only 1 left!

0

6

Snapper 7091711

BOLT, #10-24 x 5/8" Flat Head Carriage
(Superseded to 7091283YP)

$4.49

$

In Stock, only 3 left!

0

7

Snapper 7034692

PLATE, Height Adjust
(Superseded to 7034692YP)

$22.99

$

Usually ships in 2-12 days

0

8

Snapper 7091267

NUT, #10-24 Hex Center Lock
(Superseded to 7091267SM)

$3.99

$

In Stock, Qty 6

0

9

Snapper 7091714

BOLT, 5/16-18 x 1" Round Head Carriage GR 5
(Superseded to 703483)

$3.99

$

In Stock, only 1 left!

0

10

Snapper 7091294

WASHER, .28 x .63 x .06 Flat
(Superseded to 703332)

Note: (was 7090055)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Face Self-Tap
(Superseded to 703054)

Note: (was 7090362)

$4.49

$

In Stock, Qty 5

0

12

Snapper 7043790

BRACKET, L.H.Stiffener
(Superseded to 7043790YP)

$63.99

$

Usually ships in 2-12 days

0

13

Snapper 7091696

SCREW, 1/4-20 x 5/8" Phillips Truss Head Machine
(Superseded to 7091696YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7034734

GUARD, Wear
(Superseded to 7034734YP)

$26.99

$

Usually ships in 2-12 days

0

15

Snapper 7091603

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7027230

SCREW, 1/4-20 x 1" Hex Head Cap GR 5
(Superseded to 703820)

$3.99

$

In Stock, only 4 left!

0

17

Snapper 7042999

BRACKET, R.H. Stiffener w/tab
(Superseded to 7042999YP)

$64.99

$

Usually ships in 2-12 days

0

18

Snapper 7042988

SPACER, Stiffener
(Superseded to 7042988YP)

$28.99

$

Usually ships in 2-12 days

0

19

Snapper 7033732

SUPPORT, Rear Axle
(Superseded to 7033732YP)

$9.99

$

Usually ships in 2-12 days

0

20

Snapper 7043808

ROD, Trailing Shield Pivot (1/4" Dia.)
(Superseded to 7043808YP)

$56.99

$

Usually ships in 2-12 days

0

21

Snapper 7043870

SHIELD, Trailing, Commercial Cast
(Superseded to 7043870YP)

$28.99

$

Usually ships in 2-12 days

0

22

Snapper 7091892

PUSHNUT, 1/4" Black
(Superseded to 7091892YP)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 7090999

SCREW, 1/4-20 x 5/8" Truss Head (Torx)
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 7041736

WELDMENT, Crash Bar
(Superseded to 7041736YP)

$79.99

$

Usually ships in 2-12 days

0

25

Snapper 7016719

IDLER SPACER
(Superseded to 7016719YP)

$7.49

$

Usually ships in 2-12 days

0

26

Snapper 7072143

BELT GUIDE (Wireform)
(Superseded to 7072143YP)

$28.99

$

Usually ships in 2-12 days

0

27

Snapper 7091088

SCREW, 3/8-16 x 2" Hex Head Self-Tap
(Superseded to 7091088YP)

$6.49

$

Usually ships in 2-12 days

0

28

Snapper 7015780

PULLEY, Traction Drive (25mm x 2-1/8" O.D.)
(Superseded to 7015780YP)

$30.99

$

Usually ships in 2-12 days

0

29

Snapper 7091214

KEY, Hi-Pro #HP506 (Briggs engine)
(Superseded to 7091214YP)

$4.99

$

In Stock, only 1 left!

0

30

Snapper 7092086

SET SCREW, 5/16-18 x 1/2" Hex Recess
(Superseded to 7092086YP)

$4.99

$

Usually ships in 2-12 days

0

31

Snapper 7041750

WELDMENT, Baffle
(Superseded to 7041750YP)

$106.99

$

Usually ships in 2-12 days

0

32

Snapper 7091075

SCREW, #10-24 x 5/8" Slotted Hex Washer Head Self-Tap
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

33

Snapper 7076979

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: or 7091299

$3.49

$

In Stock, Qty 20+

0

34

Snapper 7026631

HUB, Blade Drive, 25mm Internal Dia.

Note: (with integral key)

$

$

Not available

35

Snapper 7026428

BLADE, 21" Bagging
(Superseded to 7026428BZYP)

$29.99

$

In Stock, only 1 left!

0

36

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, GR 5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

37

Snapper 7079268

WASHER, 3/8" Split Lock (Heavy)
(Superseded to 7079268YP)

$3.49

$

In Stock, Qty 7

0

38

Snapper 7090483

SCREW, 3/8-24 x 1-3/4" Hex Head Cap GR 5
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

39

Snapper 7073293

PLUG, Hole (Polyethylene)
(Superseded to 7073293YP)

$2.99

$

Usually ships in 2-12 days

0
