ECKA30 - Exmark 30" Commercial Walk-Behind Mower, Kawasaki (SN: 314000000 - 314999999) (2014) Spindle and Blade Assembly Parts Diagram

30" Commercial Walk-Behind Mower, Kawasaki

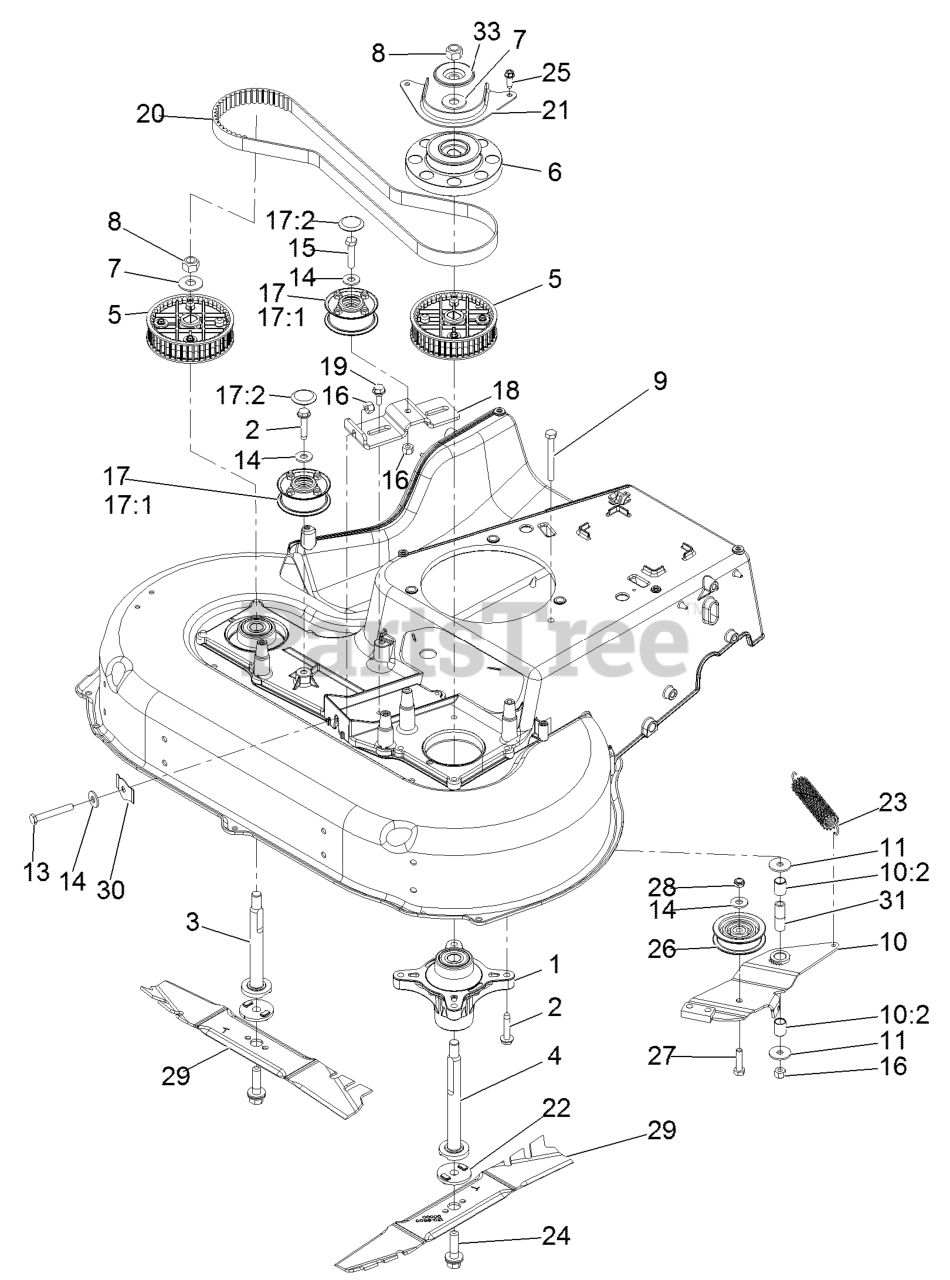

Spindle and Blade Assembly Parts Diagram

  • Title

1

Exmark 121-9107

SPINDLE ASM

$75.99

$

In Stock, Qty 8

0

2

Exmark 32144-57

SCREW

$2.49

$

In Stock, Qty 20+

0

3

Exmark 120-5234

SHAFT-SPINDLE
(Superseded to 139-6612)

$28.99

$

In Stock, only 1 left!

0

4

Exmark 120-5235

SHAFT-SPINDLE
(Superseded to 139-6613)

$29.99

$

In Stock, only 1 left!

0

5

Exmark 121-9100

SPROCKET

$53.99

$

In Stock, Qty 20+

0

6

Exmark 120-3334

PULLEY-BRAKE, SPINDLE

$47.99

$

Usually ships in 3-6 days

0

7

Exmark 109-9505

WASHER-SPRING

$5.49

$

In Stock, only 4 left!

0

8

Exmark 130-2384

NUT-HEX

$1.49

$

In Stock, Qty 13

0

9

Exmark 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

10

Exmark 131-0898

133-2629
(Superseded to 133-2629)

$100.99

$

Usually ships in 3-6 days

0

10:2

Exmark 131-0819

BUSHING-SLEEVE

Note: +

$2.99

$

In Stock, only 2 left!

0

11

Exmark 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

13

Exmark 9114524

BOLT-TAP, HH
(Superseded to 139-1728)

$1.49

$

In Stock, Qty 20+

0

14

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Exmark 126-0316

126-7890
(Superseded to 126-7890)

$176.99

$

In Stock, only 1 left!

0

17:1

Exmark 125-2532

126-7890
(Superseded to 131-4529)

Note: +

$27.99

$

In Stock, Qty 7

0

17:2

Exmark 125-2533

PLUG-CAP

Note: +

$2.99

$

In Stock, Qty 20+

0

18

Exmark 120-3348

BRACKET-IDLER
(Superseded to 145-4016)

$9.49

$

In Stock, Qty 6

0

19

Exmark 120-7024

SCREW-SHOULDER,HWH

$2.99

$

In Stock, Qty 18

0

20

Exmark 120-3335

BELT-SYNCHRONOUS

$82.99

$

In Stock, Qty 20+

0

21

Exmark 120-5245-03

GUIDE-BELT, SPINDLE

$11.99

$

In Stock, only 4 left!

0

22

Exmark 120-5236

ADAPTER-BLADE

$7.99

$

In Stock, Qty 20+

0

23

Exmark 121-5808

SPRING-EXTENSION, BRAKE

$17.99

$

In Stock, Qty 5

0

24

Exmark 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

25

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

26

Exmark 120-7082

PULLEY-IDLER

$23.99

$

In Stock, Qty 20+

0

27

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

28

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 10

0

29

Exmark 116-6358-03

BLADE-ROTARY

$25.99

$

In Stock, Qty 20+

0

30

Exmark 121-2336

SPRING-FLAT

$7.99

$

In Stock, Qty 20+

0

31

Exmark 131-0823

SPACER-BRAKE

$13.99

$

In Stock, only 1 left!

0

33

Exmark 130-2364

WASHER-CUP

$2.99

$

In Stock, Qty 11

0
